In this review, we will be comparing XT70 and R-620F, two Passive Floor-standing speakers from Polk Audio and Klipsch.
Let's have a brief look at the main features
of Polk XT70 and Klipsch R-620F first before getting into our more
detailed comparison.
Polk XT70 Key Specs
- 2-way Design
- 1" dome Tweeter
- 2 x 6.5" Bi-laminate paper Woofer
- 35-40k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-200watts
- Weight:15.91kg
- Dimensions (H x W x D): 1031.0" x 10-13/16" x 13-3/8"( 1031.0 x 275.0 x 340.0mm )
Klipsch R-620F Key Specs
- 2-way Design
- 1.0" Tweeter
- 2 x 6.5" Copper-spun IMG Woofer
- 38-21k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:18.64kg
- Dimensions (H x W x D): 1021.0" x 9-3/8" x 14-1/2"( 1021.0 x 239.0 x 369.0mm )
What size room are the Polk XT70 and Klipsch R-620F speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Polk XT70 |
Klipsch R-620F |
| Near-field |
Bad |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Polk XT70 and Klipsch R-620F compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both XT70 and R-620F are 2-way speakers.
| Driver |
Polk XT70 |
Klipsch R-620F |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1.0-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 6.5-inch
|
2 x 6.5-inch
|
XT70 features a 1" Terylene dome Tweeter and 2 x 6.5" Bi-laminate paper Woofer . On the other hand, the R-620F features a 1.0" Tweeter and 2 x 6.5" Copper-spun IMG Woofer with a Crossover frequency at 2000Hz.
Frequency Response
XT70 has a frequency range of 35-40k Hz whereas R-620F has a frequency range of 38-21k Hz. With a minimum frequency of 35Hz, the XT70 can go slightly deeper then the R-620F's min frequency of 38Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
XT70 and R-620F have the same Impedance of 8 ohms but where they differ is the sensitivity levels. XT70 sensitivity is rated at 86 dB and the R-620F's is at 96 dB. This 10 dB difference makes the Klipsch R-620F a more sensitive speaker compared to Polk XT70, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
XT70 can handle a max power of 200 watts RMS from the amp the whereas R-620F has a max power handling value of 100 watts RMS, 100 watts less than the XT70.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
XT70 features Post type posts and R-620F has a Post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch R-620F's Post terminals
Physical Specs

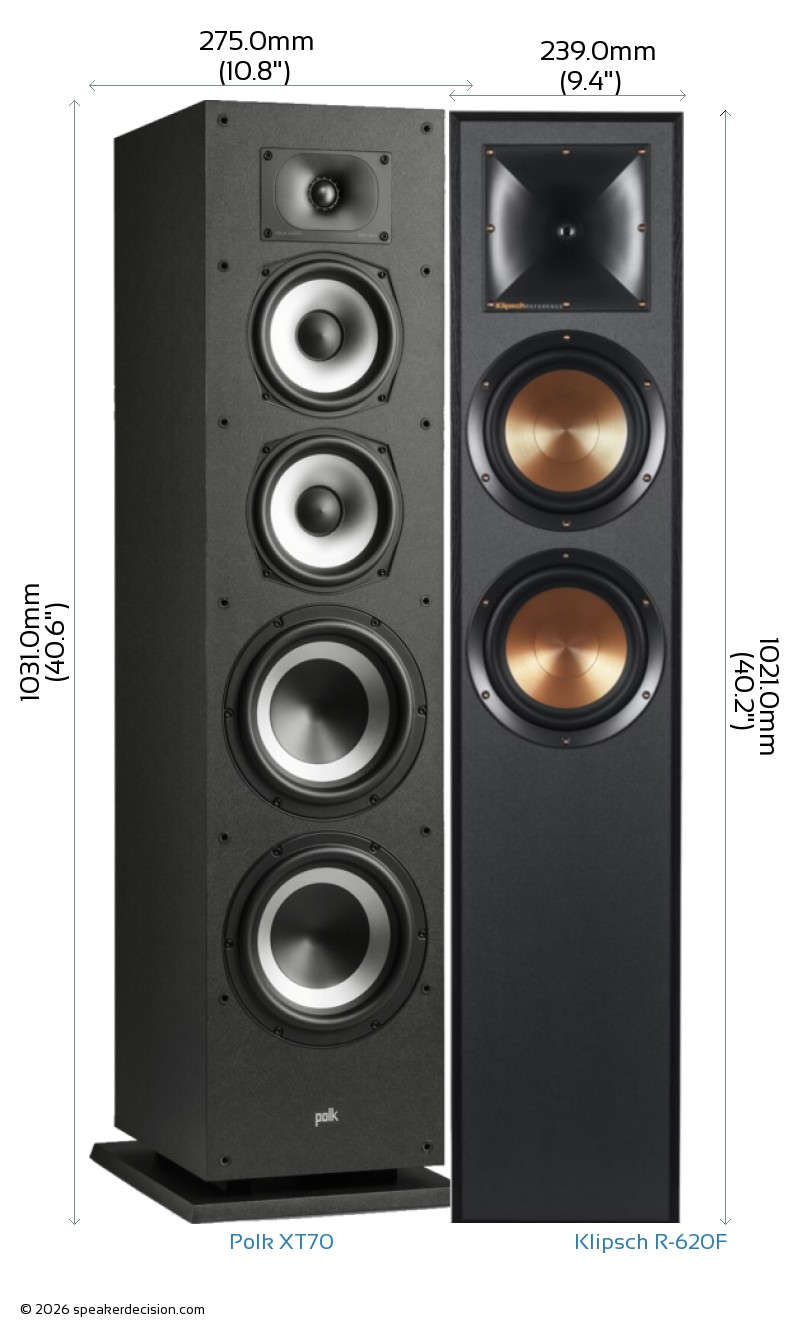

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Polk XT70's and Klipsch R-620F's external dimensions. Polk XT70 has external dimensions of 1031.0 x 275.0 x 340.0mm ( 40-9/16 x 10-13/16 x 13-3/8inch) whereas Klipsch R-620F has external dimensions of 1021.0 x 239.0 x 369.0mm ( 40-3/16 x 9-3/8 x 14-1/2inch) .
Klipsch R-620F is 36mm narrower and 10mm shorter than Polk XT70 but it is also 29mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Polk XT70 is approximately 935.0cm2 / 144.9inch2 and base area of the Klipsch R-620F is approximately 881.9cm2 / 136.7inch2. The XT70 requires 6% more surface area than the R-620F which gives it a small disadvantage on placement in tight spaces.
