In this review, we will be comparing RP-600M and M126Be, two Passive Bookshelf speakers from Klipsch and Revel.
Let's have a brief look at the main features
of Klipsch RP-600M and Revel M126Be first before getting into our more
detailed comparison.
Klipsch RP-600M Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 6.5" Cerametallic Woofer
- 45-25k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:7.30kg
- Dimensions (H x W x D): 399.0" x 7.9" x 11.8"( 399.0 x 202.0 x 301.0mm )
Revel M126Be Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 6.5" DCC Aluminum Woofer
- 54-44k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-150watts
- Weight:10.00kg
- Dimensions (H x W x D): 388.0" x 8-5/16" x 10-5/16"( 388.0 x 212.0 x 262.0mm )
What size room are the Klipsch RP-600M and Revel M126Be speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-600M |
Revel M126Be |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-600M and Revel M126Be compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both RP-600M and M126Be are 2-way speakers.
| Driver |
Klipsch RP-600M |
Revel M126Be |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
RP-600M features a 1" Tractrix Horn Tweeter and 1 x 6.5" Cerametallic Woofer with a Crossover frequency at 1500Hz. On the other hand, the M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer .
Frequency Response
RP-600M has a frequency range of 45-25k Hz whereas M126Be has a frequency range of 54-44k Hz. With a minimum frequency of 45Hz, the RP-600M can go significantly deeper on the low side and provide stronger bass compared to the M126Be's min frequency of 54Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-600M and M126Be have the same Impedance of 8 ohms but where they differ is the sensitivity levels. RP-600M sensitivity is rated at 96 dB and the M126Be's is at 86 dB. This 10 dB difference makes the Klipsch RP-600M a more sensitive speaker compared to Revel M126Be, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
RP-600M can handle a max power of 150 watts RMS from the amp the whereas RP-600M has a max power handling value of 100 watts RMS , 50 watts less than the M126Be.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RP-600M features Dual binding posts/bi-wire/bi-amp posts which make bi-amping or bi-wiring possible. M126Be has a Binding post which doesn't feature bi-amping/bi-wiring.
Klipsch RP-600M's Dual binding posts/bi-wire/bi-amp terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both RP-600M and M126Be have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Klipsch RP-600M Tractrix horn-shaped Port
Physical Specs

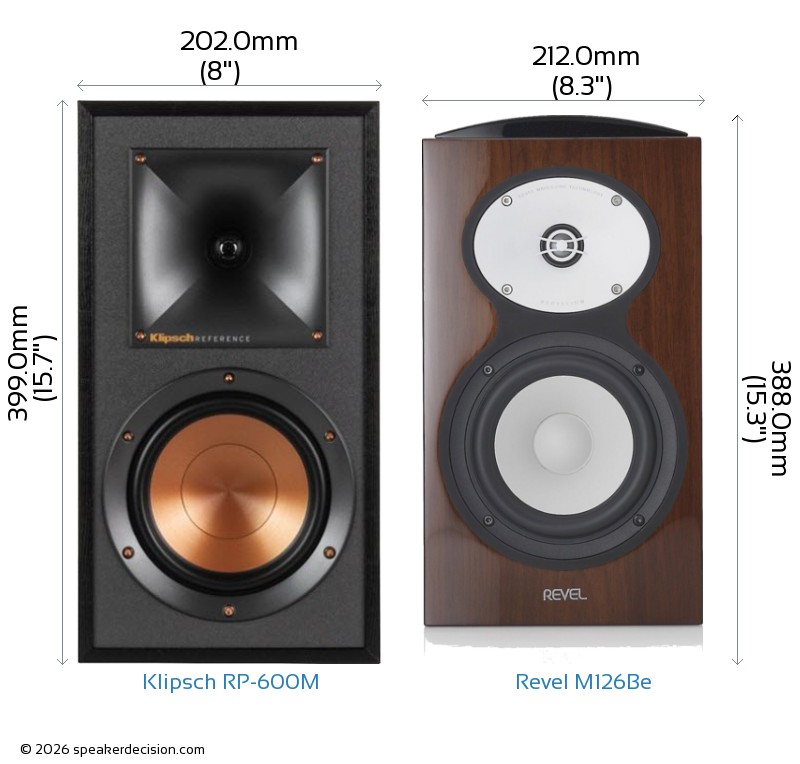

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-600M's and Revel M126Be's external dimensions. Klipsch RP-600M has external dimensions of 399.0 x 202.0 x 301.0mm ( 15.7 x 7.9 x 11.8inch) whereas Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm ( 15-1/4 x 8-5/16 x 10-5/16inch) .
Revel M126Be is 11mm shorter and 39mm less deeper than Klipsch RP-600M but it is also 10mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-600M is approximately 608.0cm2 / 94.2inch2 and base area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2. The RP-600M requires 9% more surface area than the M126Be which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch RP-600M weighs 7.30kg / 16.1lbs and the Revel M126Be weighs 10.00kg / 22lbs. This makes the M126Be 37% heavier than the RP-600M.
Here is a comparison of how RP-600M and M126Be's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Klipsch RP-600M?
Here are the items that are included inside the box of RP-600M:
2 Bookshelf loudspeakers2 Grilles (installed)8 Self-adhesive rubber feet4 Terminal jumpers (installed)User ManualImportant Safety InstructionsWarranty Information
What's in the Box of Revel M126Be?
Here are the items that come with the M126Be:
Bookshelf loudspeakerGrilleFoam port plugOwners Manual
 Sensitivity |
96 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Low Frequency Response |
45 Hz
vs
54 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Price per pair* |
369USD
vs
4400USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
150 watts
vs
100 watts
|
Handle more power from your amplifier |
 High Frequency Response |
44k Hz
vs
25k Hz
|
Generates higher frequency |
 Height |
388mm
vs
399mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
555cm2
vs
608cm2
|
Takes less floor space |
| General |
Klipsch Reference Premiere RP-600M |
Revel PerformaBe M126Be |
| Brand |
Klipsch |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
up to 100 watts |
50-150 watts |
| Sensitivity |
96 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
45-25k Hz |
54-44k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Cerametallic |
DCC Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix Horn |
Hard-Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
1500Hz |
n/a |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
399.0mm (15.7") |
388.0mm (15.3") |
| Width |
202.0mm (8") |
212.0mm (8.3") |
| Depth |
301.0mm (11.9") |
262.0mm (10.3") |
| Weight |
7.30kg (16.1lbs) |
10.00kg (22lbs) |
| Enclosure |
Bass Reflex |
Bass reflex |
| Finish |
MDF/Wood-grain vinyl |
Wood/Lacquer |
| Available Colors |
Ebony, Walnut, Piano Black |
Walnut,Black,White,Silver |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
22-26" |
22-26" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
