In this review, we will be comparing two different type of speakers . Wharfedale LINTON Heritage is a Bookshelf speaker whereas the Forte IV is a Floor-standing speaker.
Let's have a brief look at the main features
of Wharfedale LINTON and Klipsch Forte IV first before getting into our more
detailed comparison.
Wharfedale LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Woven Kevlar Woofer
- 40-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:18.40kg
- Dimensions (H x W x D): 565.0" x 11.8" x 14.2"( 565.0 x 300.0 x 360.0mm )
Klipsch Forte IV Key Specs
- 3-way Design
- 1" horn-loaded Tweeter
- 1.75" Midrange
- 12" Fibercomposite Woofer
- 1.75" Midrange
- 38-20k Hz Frequency Response
- 99 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:32.73kg
- Dimensions (H x W x D): 909.0" x 16-5/8" x 13"( 909.0 x 423.0 x 331.0mm )
LINTON Heritage and Forte IV are members of Klipsch's Heritage series of speakers. Below you can find the loudspeakers from this series.
Wharfedale Heritage Series History
In the following sections, we will get into more detail in order to better understand how the Wharfedale LINTON and Klipsch Forte IV compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both LINTON Heritage and Forte IV are 3-way speakers.
| Driver |
Wharfedale LINTON |
Klipsch Forte IV |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5-inch |
1 x 1.75-inch |
|
Woofer
|
1 x 8-inch
|
1 x 12-inch
|
LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz. On the other hand, the Forte IV features a 1" titanium-diaphragm compression horn-loaded Tweeter , a 1.75" Midrange and 1 x 12" Fibercomposite Woofer .
Frequency Response
LINTON Heritage has a frequency range of 40-20k Hz whereas Forte IV has a frequency range of 38-20k Hz. With a minimum frequency of 38Hz, the Forte IV can go slightly deeper then the LINTON Heritage's min frequency of 40Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
LINTON Heritage is a 6 ohms speaker compared to the Forte IV which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. LINTON Heritage sensitivity is rated at 90 dB and the Forte IV's is rated at 99 dB. This 9 dB difference makes the Klipsch Forte IV a more sensitive speaker compared to Wharfedale LINTON, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
LINTON Heritage can handle a max power of 200 watts RMS from the amp the whereas Forte IV has a max power handling value of 100 watts RMS, 100 watts less than the LINTON Heritage.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Forte IV features Post posts which make bi-amping or bi-wiring possible. LINTON Heritage has a Post which doesn't feature bi-amping/bi-wiring.
Wharfedale LINTON's Post terminals
Cabinet Type and Port Position
Both LINTON Heritage and Forte IV have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

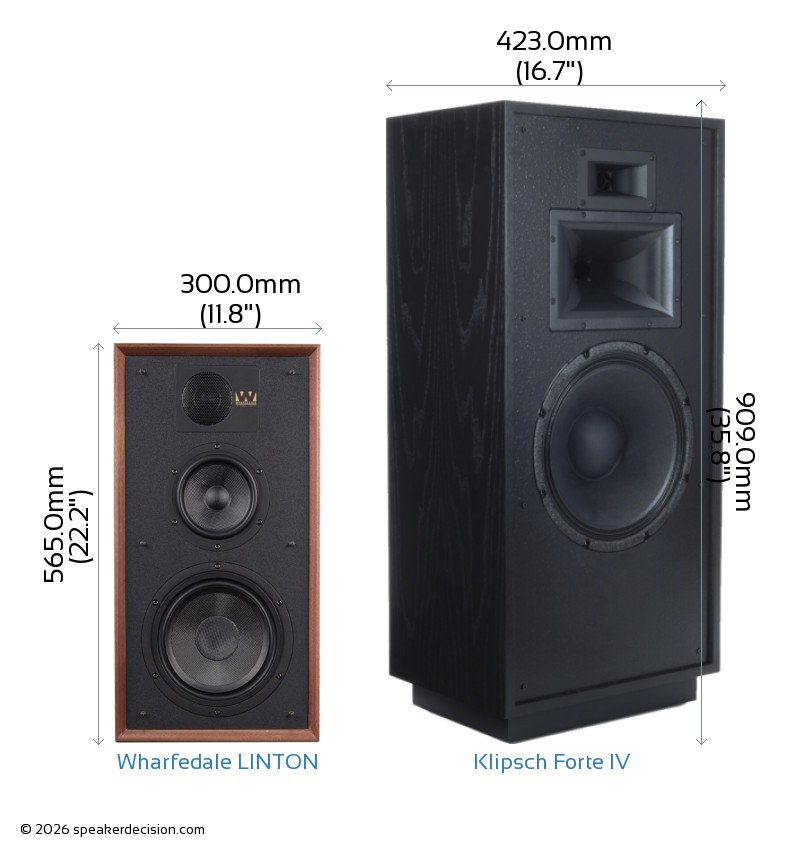

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale LINTON's and Klipsch Forte IV's external dimensions. Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) whereas Klipsch Forte IV has external dimensions of 909.0 x 423.0 x 331.0mm ( 35-3/4 x 16-5/8 x 13inch) .
Wharfedale LINTON is 123mm narrower and 344mm shorter than Klipsch Forte IV but it is also 29mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2 and base area of the Klipsch Forte IV is approximately 1400.1cm2 / 217.0inch2. The LINTON Heritage requires 29% less surface area than the Forte IV which gives it a small advantage on placement in tight spaces.
What's in the Box of Wharfedale LINTON?
Here are the items that are included inside the box of LINTON Heritage:
Bookshelf loudspeaker Grille (pre-installed) 4 Self-adhesive rubber feet Pair of white gloves User's Manual
What's in the Box of Klipsch Forte IV?
Here are the items that come with the Forte IV:
2 Floorstanding loudspeakers2 Grilles8 Self-adhesive rubber feetOwners ManualCongratulations letterKlipsch brochure
Max Input Power
Height
Base Surface Area
Price per pair*
Sensitivity
Nominal Impedance
Woofer Size
Bi-Amping and Bi-Wiring
Passive Radiator
