In this review, we will be comparing EVO4.1 and M16, two Passive Bookshelf speakers from Wharfedale and Revel.
Let's have a brief look at the main features
of Wharfedale EVO4.1 and Revel M16 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale EVO4.1 | Revel M16 |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Revel
United States · founded 1996 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1.18x2.36" AMT (Ribbon) | 1" Dome |
|---|
| Woofer | 5" Kevlar | 6.5" Anodized aluminum |
|---|
| Frequency response | 64-22k Hz | 55- Hz |
|---|
| Sensitivity | 87 dB | 86 dB |
|---|
| Impedance | 8 ohms | 6 ohms |
|---|
| Power range | 25-100 watts | 50-120 watts |
|---|
| Weight | 7.80kg / 17.2lbs | 7.27kg / 16lbs |
|---|
| Dimensions (H x W x D) | 13.1" x 8.2" x 11.6"
335.0 x 210.0 x 295.0mm | 14-7/8" x 8-11/16" x 11"
378.0 x 221.0 x 280.0mm |
|---|
What size room are the Wharfedale EVO4.1 and Revel M16 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO4.1 |
Revel M16 |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both EVO4.1 and M16 are 2-way speakers.
Wharfedale EVO4.1Revel M16
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale EVO4.1 |
Revel M16 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1.18x2.36-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5-inch
|
1 x 6.5-inch
|
EVO4.1 features a 1.18x2.36" AMT (Ribbon) Tweeter and 1 x 5" Kevlar Woofer. On the other hand, the M16 features a 1" aluminum Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer.
Frequency Response
EVO4.1 has a frequency range of 64-22k Hz whereas M16 has a frequency range of 55- Hz. With a minimum frequency of 55Hz, the M16 can go significantly deeper on the low side and provide stronger bass compared to the EVO4.1's min frequency of 64Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO4.1 is a 8 ohms speaker compared to the M16 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. EVO4.1 sensitivity is rated at 87 dB and the M16's is rated at 86 dB. This 1 dB difference makes the Wharfedale EVO4.1 a more sensitive speaker compared to Revel M16, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
M16 can handle a max power of 120 watts RMS, whereas EVO4.1 has a max power handling value of 100 watts RMS, 20 watts less than the M16.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
EVO4.1 features Binding post posts which make bi-amping or bi-wiring possible. M16 has a 5-way post which doesn't feature bi-amping/bi-wiring.
Wharfedale EVO4.1's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
EVO4.1 has a bottom firing port whereas M16 has a rear firing ports. Wharfedale EVO4.1's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Revel M16 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO4.1's and Revel M16's external dimensions. Wharfedale EVO4.1 has external dimensions of 335.0 x 210.0 x 295.0mm (13.1 x 8.2 x 11.6inch) whereas Revel M16 has external dimensions of 378.0 x 221.0 x 280.0mm (14-7/8 x 8-11/16 x 11inch).
Wharfedale EVO4.1 is 11mm narrower and 43mm shorter than Revel M16 but it is also 15mm deeper.

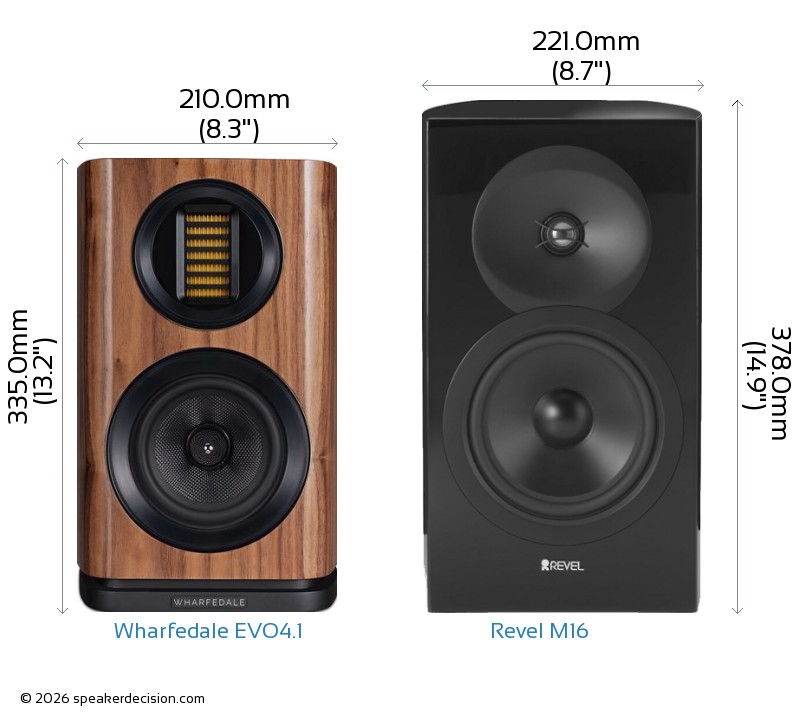

Below you can see the front view size comparison of Wharfedale EVO4.1 and Revel M16 in scale.
Comparison image of Wharfedale EVO4.1 and Revel M16 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO4.1 is approximately 619.5cm2 / 96.0inch2 and base area of the Revel M16 is approximately 618.8cm2 / 95.9inch2. The EVO4.1 requires 0% more surface area than the M16 which gives it a small disadvantage on placement in tight spaces.

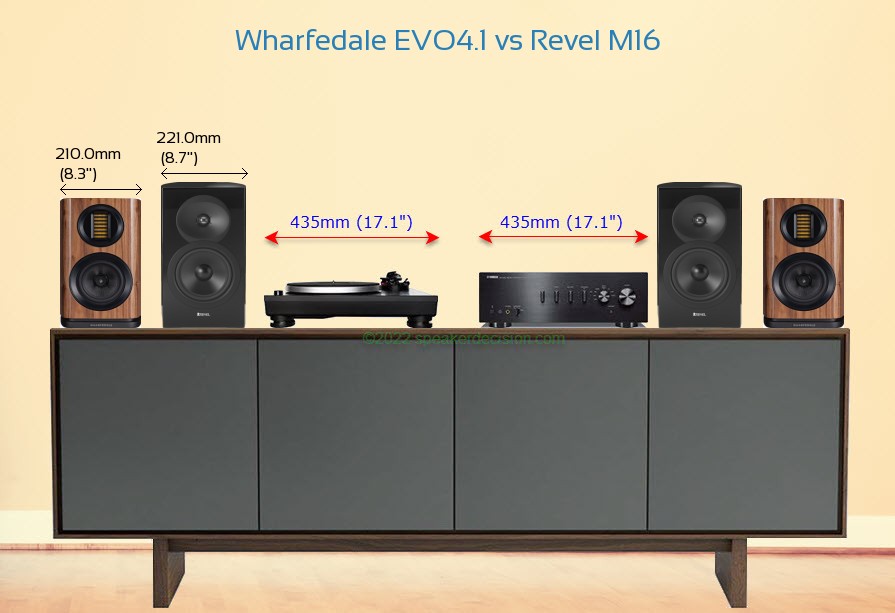

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Wharfedale EVO4.1 and Revel M16 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale EVO4.1 weighs 7.80kg / 17.2lbs and the Revel M16 weighs 7.27kg / 16lbs. This makes the EVO4.1 7% heavier than the M16.
Here is a comparison of how EVO4.1 and M16's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale EVO4.1?
Here are the items that are included inside the box of EVO4.1:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 4 Jumper-bars (pre-installed)
- 8 Self-adhesive rubber feet
- Pair of white cloth gloves
- User Manual
What's in the Box of Revel M16?
Here are the items that come with the M16:
- Bookshelf loudspeaker
- Grille
- Owners Manual
 Sensitivity |
87 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
 High Frequency Response |
22k Hz
vs
20k Hz
|
Generates higher frequency |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
335mm
vs
378mm
|
Easier to fit in smaller spaces |
 Price per pair* |
799USD
vs
990USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
120 watts
vs
100 watts
|
Handle more power from your amplifier |
 Woofer Size |
6.5 inches
vs
5 inches
|
Larger woofer |
|
Low Frequency Response |
55 Hz
vs
64 Hz
|
Generates deeper bass |
 Base Surface Area |
618cm2
vs
619cm2
|
Takes less floor space |
| General |
Wharfedale EVO4.1 |
Revel Concerta2 M16 |
| Brand |
Wharfedale |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-100 watts |
50-120 watts |
| Sensitivity |
87 dB |
86 dB |
| Impedance |
8 ohms |
6 ohms |
| Impedance |
3.5 ohms |
n/a |
| Frequency Response |
64-22k Hz |
55- Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5" |
6.5" |
| Woofer Composition |
Kevlar |
Anodized aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.18x2.36" |
1" |
| Tweeter Type |
AMT (Ribbon) |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
335.0mm (13.2") |
378.0mm (14.9") |
| Width |
210.0mm (8.3") |
221.0mm (8.7") |
| Depth |
295.0mm (11.6") |
280.0mm (11") |
| Weight |
7.80kg (17.2lbs) |
7.27kg (16lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-veneer |
Wood/Lacquer |
| Available Colors |
Walnut,Black,White |
Gloss Black,Gloss White |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24-26" |
24-28" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
A generation apart: Wharfedale EVO4.1 is the newer design, against a 2015 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | B | Revel M16 digs deeper - 55Hz against 64Hz. A subwoofer would even that out. |
| Amplifier needs | evenly matched | Similar sensitivity (87dB vs 86dB) - both want much the same power. |
| Amplifier match | A | Wharfedale EVO4.1 is the easier load at 8 ohms. |
| Headroom | evenly matched | Similar power handling (100W vs 120W). |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | A | Wharfedale EVO4.1: bi-amping. |
| Price | A | Wharfedale EVO4.1 is cheaper - $799 against $990, about 19% less. |
A Wharfedale EVO4.1 B Revel M16
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Wharfedale EVO4.1 has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 64Hz anyway, which makes the cheaper Wharfedale EVO4.1 much easier to justify. Match it to your room: we rate Wharfedale EVO4.1 the better fit for near-field listening and a small room, and Revel M16 for a mid-size room and a large room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
