In this review, we will be comparing M16 and RP-400M, two Passive Bookshelf speakers from Revel and Klipsch.
Let's have a brief look at the main features
of Revel M16 and Klipsch RP-400M first before getting into our more
detailed comparison.
| Key Specs | Revel M16 | Klipsch RP-400M |
|---|
| Brand | Revel
United States · founded 1996 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Dome | 1" Tractrix Horn |
|---|
| Woofer | 6.5" Anodized aluminum | 4" Cerametallic |
|---|
| Frequency response | 55- Hz | 52-25k Hz |
|---|
| Sensitivity | 86 dB | 93 dB |
|---|
| Impedance | 6 ohms | 8 ohms |
|---|
| Power range | 50-120 watts | up to 50 watts |
|---|
| Weight | 7.27kg / 16lbs | 4.10kg / 9lbs |
|---|
| Dimensions (H x W x D) | 14-7/8" x 8-11/16" x 11"
378.0 x 221.0 x 280.0mm | 11.7" x 5.6" x 7.5"
298.0 x 144.0 x 191.0mm |
|---|
What size room are the Revel M16 and Klipsch RP-400M speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Revel M16 |
Klipsch RP-400M |
| Near-field |
Poor |
Good |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both M16 and RP-400M are 2-way speakers.
Revel M16Klipsch RP-400M
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Revel M16 |
Klipsch RP-400M |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 4-inch
|
M16 features a 1" aluminum Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer. On the other hand, the RP-400M features a 1" Tractrix Horn Tweeter and 1 x 4" Cerametallic Woofer with a Crossover frequency at 1500Hz.
Frequency Response
M16 has a frequency range of 55- Hz whereas RP-400M has a frequency range of 52-25k Hz. With a minimum frequency of 52Hz, the RP-400M can go slightly deeper then the M16's min frequency of 55Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
M16 is a 6 ohms speaker compared to the RP-400M which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. M16 sensitivity is rated at 86 dB and the RP-400M's is rated at 93 dB. This 7 dB difference makes the Klipsch RP-400M a more sensitive speaker compared to Revel M16, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
M16 can handle a max power of 120 watts RMS, whereas RP-400M has a max power handling value of 50 watts RMS, 70 watts less than the M16.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
M16 features Single binding posts type posts and RP-400M has a Single binding posts type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch RP-400M's Single binding posts terminals
Cabinet Type and Port Position
Both M16 and RP-400M have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Klipsch RP-400M Tractrix horn-shaped Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel M16's and Klipsch RP-400M's external dimensions. Revel M16 has external dimensions of 378.0 x 221.0 x 280.0mm (14-7/8 x 8-11/16 x 11inch) whereas Klipsch RP-400M has external dimensions of 298.0 x 144.0 x 191.0mm (11.7 x 5.6 x 7.5inch).
Revel M16 is clearly the larger of the two speakers. Its body is 77mm wider, 80mm taller and 89mm deeper than Klipsch RP-400M.

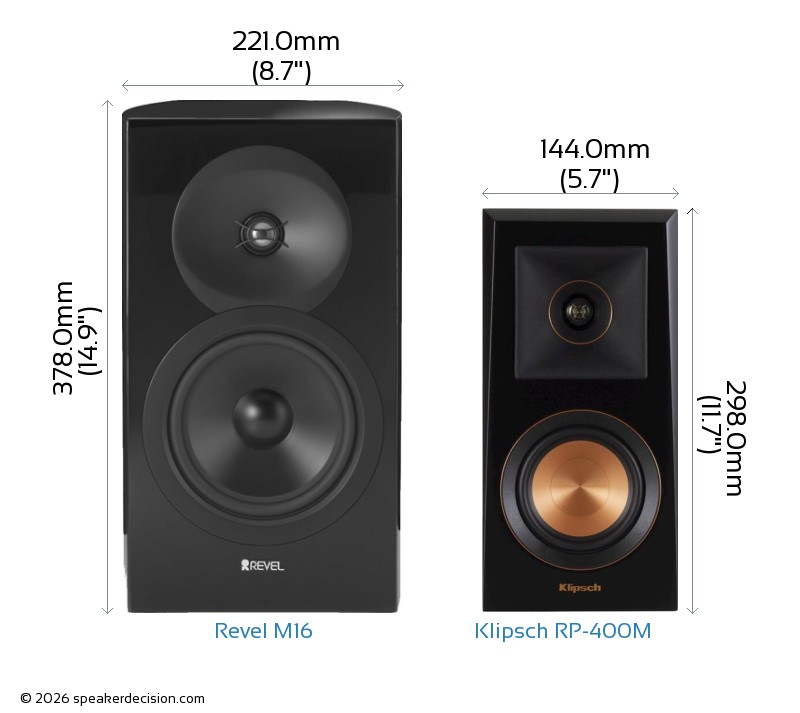

Below you can see the front view size comparison of Revel M16 and Klipsch RP-400M in scale.
Comparison image of Revel M16 and Klipsch RP-400M Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel M16 is approximately 618.8cm2 / 95.9inch2 and base area of the Klipsch RP-400M is approximately 275.0cm2 / 42.6inch2. The M16 requires 125% more surface area than the RP-400M which gives it a small disadvantage on placement in tight spaces.

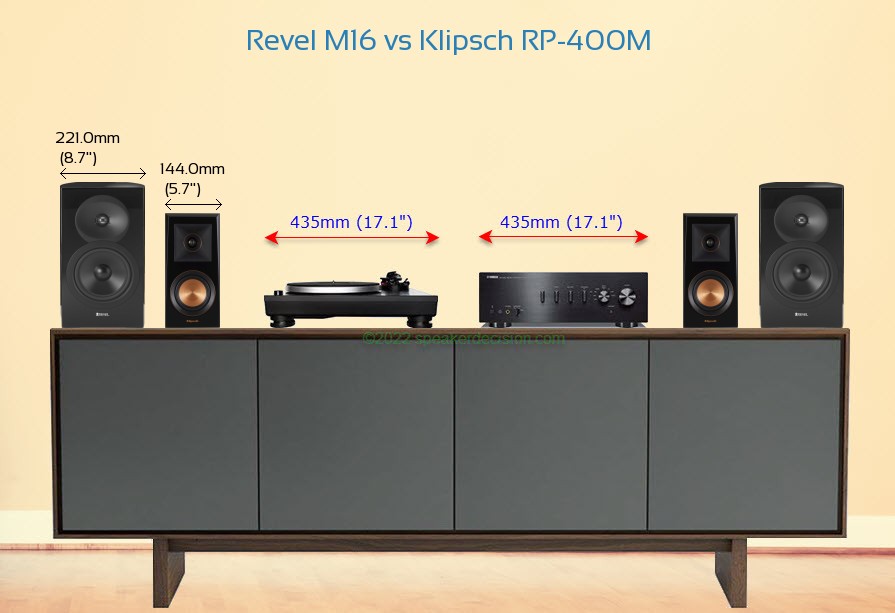

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Revel M16 and Klipsch RP-400M on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel M16 weighs 7.27kg / 16lbs and the Klipsch RP-400M weighs 4.10kg / 9lbs. This makes the M16 77% heavier than the RP-400M.
Here is a comparison of how M16 and RP-400M's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Revel M16?
Here are the items that are included inside the box of M16:
- Bookshelf loudspeaker
- Grille
- Owners Manual
What's in the Box of Klipsch RP-400M?
Here are the items that come with the RP-400M:
- 2 Bookshelf loudspeakers
- 2 Grilles (installed)
- 8 Self-adhesive rubber feet
- User Manual
- Important Safety Instructions
- Warranty Information
 Max Input Power |
120 watts
vs
50 watts
|
Handle more power from your amplifier |
 Woofer Size |
6.5 inches
vs
4 inches
|
Larger woofer |
 Sensitivity |
93 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
|
Low Frequency Response |
52 Hz
vs
55 Hz
|
Generates deeper bass |
 High Frequency Response |
25k Hz
vs
20k Hz
|
Generates higher frequency |
 Mounting Bracket |
Yes
vs
No
|
Allows mounting on walls |
 Height |
298mm
vs
378mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
275cm2
vs
618cm2
|
Takes less floor space |
 Price per pair* |
399USD
vs
990USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Revel Concerta2 M16 |
Klipsch Reference Premiere RP-400M |
| Brand |
Revel |
Klipsch |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
50-120 watts |
up to 50 watts |
| Sensitivity |
86 dB |
93 dB |
| Impedance |
6 ohms |
8 ohms |
| Frequency Response |
55- Hz |
52-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
4" |
| Woofer Composition |
Anodized aluminum |
Cerametallic |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1500Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
378.0mm (14.9") |
298.0mm (11.7") |
| Width |
221.0mm (8.7") |
144.0mm (5.7") |
| Depth |
280.0mm (11") |
191.0mm (7.5") |
| Weight |
7.27kg (16lbs) |
4.10kg (9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
Wood/Lacquer |
MDF/Wood-grain vinyl |
| Available Colors |
Gloss Black,Gloss White |
Ebony, Walnut, Piano Black |
| Mounting Bracket |
No |
Keyhole |
| Recommended Stand Height |
24-28" |
28-30" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Revel M16 costs roughly 2.5x what Klipsch RP-400M does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | Klipsch RP-400M digs deeper - 52Hz against 55Hz. A subwoofer would even that out. |
| Amplifier needs | B | Klipsch RP-400M is more sensitive (93dB vs 86dB), so it goes louder on the same amplifier. |
| Amplifier match | B | Klipsch RP-400M is the easier load at 8 ohms. |
| Headroom | A | Revel M16 takes more power (120W vs 50W) - more in hand in a big room. |
| Size | depends | Klipsch RP-400M is easier to place; Revel M16 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Neither adds bi-amping, a sub output or height drivers. Klipsch RP-400M sits in a wider range (17 models), so a matched surround system is easier later. |
| Price | B | Klipsch RP-400M is cheaper - $399 against $990, about 60% less; arguably a different class. |
A Revel M16 B Klipsch RP-400M
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch RP-400M is the easier recommendation: it leads on most of the measured areas and costs less. Take Revel M16 if its size, looks or fit in your room suit you better. Match it to your room: we rate Revel M16 the better fit for a mid-size room and a large room, and Klipsch RP-400M for near-field listening and a small room. In a large or open-plan room, Revel M16 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Klipsch RP-400M is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
