In this review, we will be comparing RP-404C II and R-52C, two Passive Center Channel speakers by Klipsch
Let's have a brief look at the main features
of Klipsch RP-404C II and Klipsch R-52C first before getting into our more
detailed comparison.
Klipsch RP-404C II Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 4 x 4" Cerametallic cone Woofer
- 87-25k Hz Frequency Response
- 94 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 125watts
- Weight:9.20kg
- Dimensions (H x W x D): 147.0" x 26-7/8" x 6-1/2"( 147.0 x 683.0 x 166.0mm )
Klipsch R-52C Key Specs
- 2-way Design
- 1" Tractrix horn Tweeter
- 2 x 5.25" copper spun IMG Woofer
- 89-21k Hz Frequency Response
- 95 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:3.18kg
- Dimensions (H x W x D): 180.0" x 18-13/16" x 7-11/16"( 180.0 x 478.0 x 196.0mm )
What size room are the Klipsch RP-404C II and Klipsch R-52C speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-404C II |
Klipsch R-52C |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-404C II and Klipsch R-52C compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both RP-404C II and R-52C are 2-way speakers.
| Driver |
Klipsch RP-404C II |
Klipsch R-52C |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
4 x 4-inch
|
2 x 5.25-inch
|
RP-404C II features a 1" titanium Tractrix Horn Tweeter and 4 x 4" Cerametallic cone Woofer with a Crossover frequency at 1900 Hz. On the other hand, the R-52C features a 1" aluminum Tractrix horn Tweeter and 2 x 5.25" copper spun IMG Woofer .
Frequency Response
RP-404C II has a frequency range of 87-25k Hz whereas R-52C has a frequency range of 89-21k Hz. With a minimum frequency of 87Hz, the RP-404C II can go slightly deeper then the R-52C's min frequency of 89Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-404C II and R-52C have the same Impedance of 8 ohms but where they differ is the sensitivity levels. RP-404C II sensitivity is rated at 94 dB and the R-52C's is at 95 dB. This 1 dB difference makes the Klipsch R-52C a more sensitive speaker compared to Klipsch RP-404C II, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
RP-404C II can handle a max power of 125 watts RMS from the amp the whereas R-52C has a max power handling value of 100 watts RMS, 25 watts less than the RP-404C II.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RP-404C II features Binding post type posts and R-52C has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch RP-404C II's Binding post terminals
Klipsch R-52C's Binding post terminals

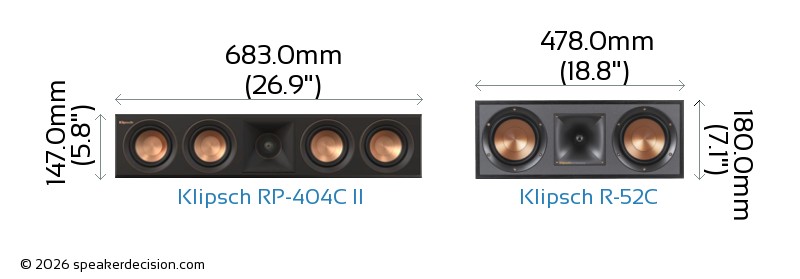

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-404C II's and Klipsch R-52C's external dimensions. Klipsch RP-404C II has external dimensions of 147.0 x 683.0 x 166.0mm ( 5-3/4 x 26-7/8 x 6-1/2inch) whereas Klipsch R-52C has external dimensions of 180.0 x 478.0 x 196.0mm ( 7-1/16 x 18-13/16 x 7-11/16inch) .
Klipsch RP-404C II is 33mm shorter and 30mm less deeper than Klipsch R-52C but it is also 205mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-404C II is approximately 1133.8cm2 / 175.7inch2 and base area of the Klipsch R-52C is approximately 936.9cm2 / 145.2inch2. The RP-404C II requires 21% more surface area than the R-52C which gives it a small disadvantage on placement in tight spaces.
