In this review, we will be comparing Evoke 30 and M126Be, two Passive Bookshelf speakers from Dynaudio and Revel. Let's have a brief look at the main features
of Dynaudio Evoke 10 and Revel M126Be first before getting into our more
detailed comparison.
Dynaudio Evoke 10 Key Specs
- 2-way Design
- 1.1" Tweeter
- 5.5" Magnesium Silicate Polymer Woofer
- 47-23k Hz Frequency Response
- 84 dB Sensitivity
- Impedance: 6ohms
- Power Range:up to 160watts
- Weight:6.70kg
- Dimensions (H x W x D): 315.0" x 7.1" x 10.5"( 315.0 x 180.0 x 266.0mm )
Revel M126Be Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 6.5" DCC Aluminum Woofer
- 54-44k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-150watts
- Weight:10.00kg
- Dimensions (H x W x D): 388.0" x 8-5/16" x 10-5/16"( 388.0 x 212.0 x 262.0mm )
What size room are the Dynaudio Evoke 10 and Revel M126Be speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
Dynaudio Evoke 10 |
Revel M126Be |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Dynaudio Evoke 10 and Revel M126Be compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Evoke 30 and M126Be are 2-way speakers.
| Driver |
Dynaudio Evoke 10 |
Revel M126Be |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1.1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.5-inch
|
1 x 6.5-inch
|
Evoke 30 features a 1.1" Cerotar with Hexis Tweeter and 1 x 5.5" Magnesium Silicate Polymer Woofer with a Crossover frequency at 1400Hz. On the other hand, the M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer .
Frequency Response
Evoke 30 has a frequency range of 47-23k Hz whereas M126Be has a frequency range of 54-44k Hz. With a minimum frequency of 47Hz, the Evoke 30 can go significantly deeper on the low side and provide stronger bass compared to the M126Be's min frequency of 54Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Evoke 30 is a 6 ohms speaker compared to the M126Be which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. Evoke 30 sensitivity is rated at 84 dB and the M126Be's is rated at 86 dB. This 2 dB difference makes the Revel M126Be a more sensitive speaker compared to Dynaudio Evoke 10, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Evoke 30 can handle a max power of 160 watts RMS from the amp the whereas M126Be has a max power handling value of 150 watts RMS, 10 watts less than the Evoke 30.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Evoke 30 features Binding post type posts and M126Be has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Dynaudio Evoke 10's Binding post terminals
Cabinet Type and Port Position
Both Evoke 30 and M126Be have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

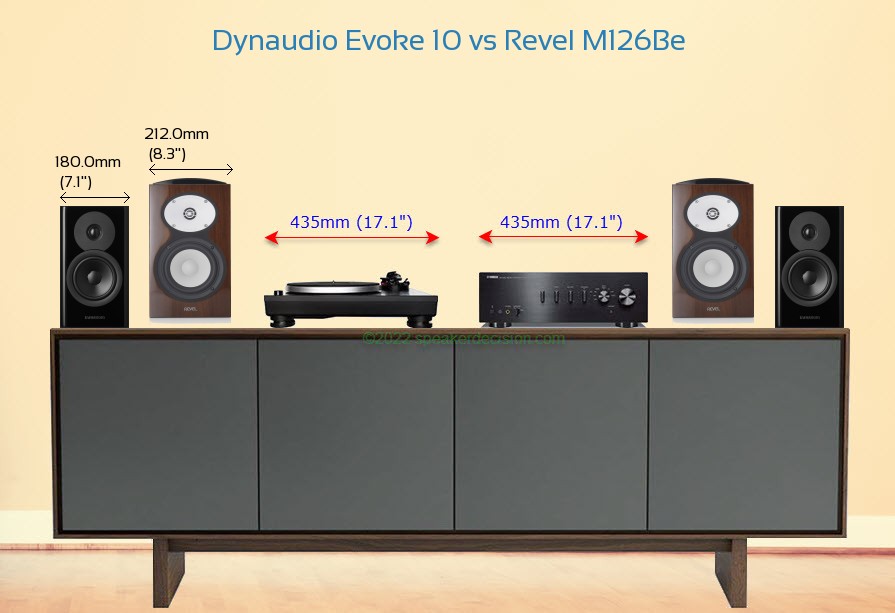

Physical Specs

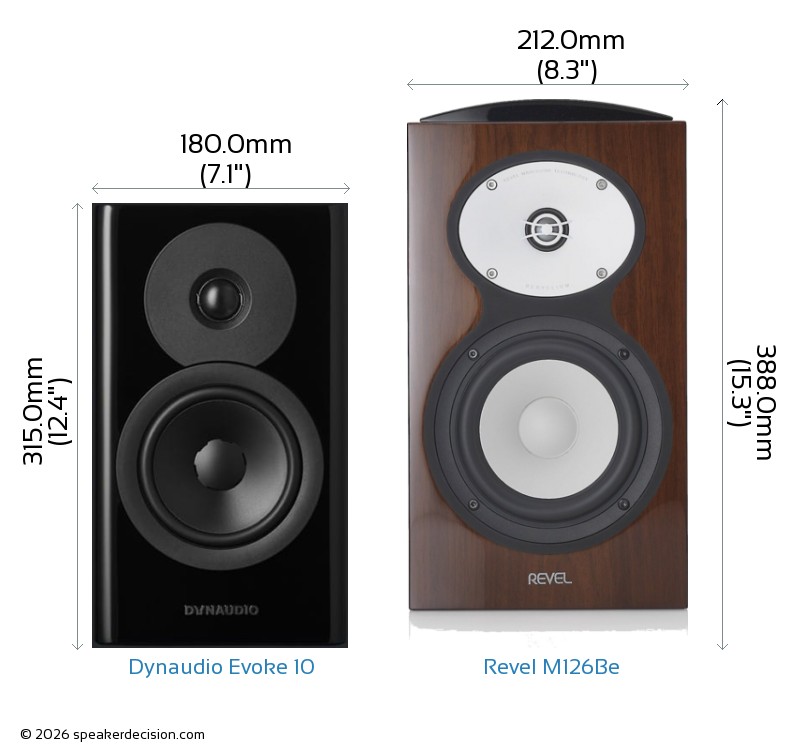

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Dynaudio Evoke 10's and Revel M126Be's external dimensions. Dynaudio Evoke 10 has external dimensions of 315.0 x 180.0 x 266.0mm ( 12.4 x 7.1 x 10.5inch) whereas Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm ( 15-1/4 x 8-5/16 x 10-5/16inch) .
Dynaudio Evoke 10 is 32mm narrower and 73mm shorter than Revel M126Be but it is also 4mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Dynaudio Evoke 10 is approximately 478.8cm2 / 74.2inch2 and base area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2. The Evoke 30 requires 14% less surface area than the M126Be which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Dynaudio Evoke 10 weighs 6.70kg / 14.7lbs and the Revel M126Be weighs 10.00kg / 22lbs. This makes the M126Be 49% heavier than the Evoke 30.
Here is a comparison of how Evoke 30 and M126Be's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Dynaudio Evoke 10?
Here are the items that are included inside the box of Evoke 30:
What's in the Box of Revel M126Be?
Here are the items that come with the M126Be:
Bookshelf loudspeakerGrilleFoam port plugOwners Manual
