In this review, we will be comparing Reva 2 and RP-160M, two Passive Bookshelf speakers from Wharfedale and Klipsch.
Let's have a brief look at the main features
of Wharfedale Reva 2 and Klipsch RP-160M first before getting into our more
detailed comparison.
| Key Specs | Wharfedale Reva 2 | Klipsch RP-160M |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Dome | 1" Tractrix Horn |
|---|
| Woofer | 5" Woven Glass Fiber | 6.5" Cerametallic |
|---|
| Frequency response | 48-20k Hz | 45-25k Hz |
|---|
| Sensitivity | 86 dB | 95 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 20-80 watts | up to 100 watts |
|---|
| Weight | 7.82kg / 17.2lbs | 9.03kg / 19.9lbs |
|---|
| Dimensions (H x W x D) | 14-1/16" x 7-7/8" x 12-13/16"
358.0 x 201.0 x 326.0mm | 16.6" x 8.8" x 12.8"
424.0 x 224.0 x 327.0mm |
|---|
What size room are the Wharfedale Reva 2 and Klipsch RP-160M speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale Reva 2 |
Klipsch RP-160M |
| Near-field |
Average |
Average |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
Bad |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Reva 2 and RP-160M are 2-way speakers.
Wharfedale Reva 2Klipsch RP-160M
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale Reva 2 |
Klipsch RP-160M |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5-inch
|
1 x 6.5-inch
|
Reva 2 features a 1" woven textile Dome Tweeter and 1 x 5" Woven Glass Fiber Woofer. On the other hand, the RP-160M features a 1" Tractrix Horn Tweeter and 1 x 6.5" Cerametallic Woofer with a Crossover frequency at 1500Hz.
Frequency Response
Reva 2 has a frequency range of 48-20k Hz whereas RP-160M has a frequency range of 45-25k Hz. With a minimum frequency of 45Hz, the RP-160M can go slightly deeper then the Reva 2's min frequency of 48Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Reva 2 and RP-160M have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Reva 2 sensitivity is rated at 86 dB and the RP-160M's is at 95 dB. This 9 dB difference makes the Klipsch RP-160M a more sensitive speaker compared to Wharfedale Reva 2, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
RP-160M can handle a max power of 100 watts RMS, whereas Reva 2 has a max power handling value of 80 watts RMS, 20 watts less than the RP-160M.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Reva 2 and RP-160M features dual binding post speaker terminals for bi-amping or bi-wiring.
Wharfedale Reva 2's Post terminals allows Bi-amping or bi-wiring
Klipsch RP-160M's Dual binding posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Reva 2 has a bottom firing port whereas RP-160M has a rear firing ports. Wharfedale Reva 2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Klipsch RP-160M with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Reva 2's and Klipsch RP-160M's external dimensions. Wharfedale Reva 2 has external dimensions of 358.0 x 201.0 x 326.0mm (14-1/16 x 7-7/8 x 12-13/16inch) whereas Klipsch RP-160M has external dimensions of 424.0 x 224.0 x 327.0mm (16.6 x 8.8 x 12.8inch).
Klipsch RP-160M is clearly the larger of the two speakers. Its body is 23mm wider, 66mm taller and 1mm deeper than Wharfedale Reva 2.

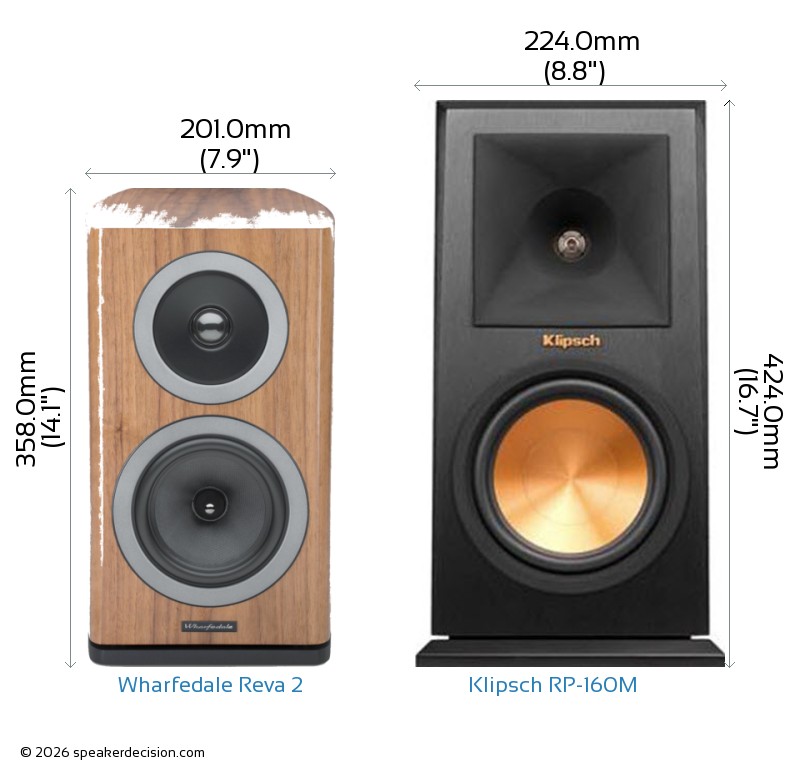

Below you can see the front view size comparison of Wharfedale Reva 2 and Klipsch RP-160M in scale.
Comparison image of Wharfedale Reva 2 and Klipsch RP-160M Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Reva 2 is approximately 655.3cm2 / 101.6inch2 and base area of the Klipsch RP-160M is approximately 732.5cm2 / 113.5inch2. The Reva 2 requires 11% less surface area than the RP-160M which gives it a small advantage on placement in tight spaces.

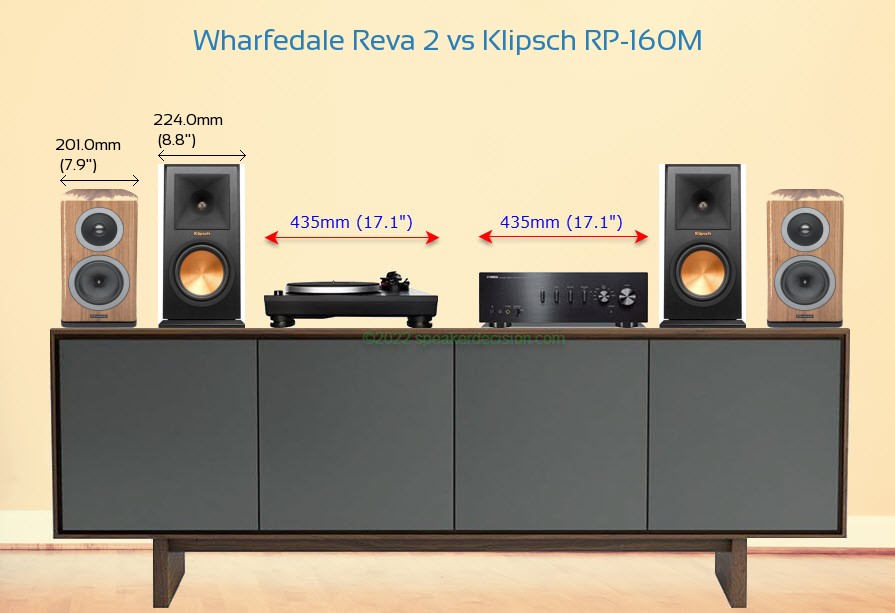

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Wharfedale Reva 2 and Klipsch RP-160M on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale Reva 2 weighs 7.82kg / 17.2lbs and the Klipsch RP-160M weighs 9.03kg / 19.9lbs. This makes the RP-160M 15% heavier than the Reva 2.
Here is a comparison of how Reva 2 and RP-160M's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale Reva 2?
Here are the items that are included inside the box of Reva 2:
- 2 Bookshelf loudspeakers
- 2 Grilles (pre-installed)
- 8 Self-adhesive rubber feet
- 4 Jumper bars (pre-installed)
- Pair of white gloves
- User-feets Manual
What's in the Box of Klipsch RP-160M?
Here are the items that come with the RP-160M:
- 2 Bookshelf loudspeakers
- 2 Detachable magnetic grilles
- User Manual
- Warranty Information
- Important Safety Instructions
 Height |
358mm
vs
424mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
655cm2
vs
732cm2
|
Takes less floor space |
 Max Input Power |
100 watts
vs
80 watts
|
Handle more power from your amplifier |
 Sensitivity |
95 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.5 inches
vs
5 inches
|
Larger woofer |
|
Low Frequency Response |
45 Hz
vs
48 Hz
|
Generates deeper bass |
 High Frequency Response |
25k Hz
vs
20k Hz
|
Generates higher frequency |
| General |
Wharfedale Reva 2 |
Klipsch Reference Premiere RP-160M |
| Brand |
Wharfedale |
Klipsch |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
20-80 watts |
up to 100 watts |
| Sensitivity |
86 dB |
95 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
48-20k Hz |
45-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5" |
6.5" |
| Woofer Composition |
Woven Glass Fiber |
Cerametallic |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1500Hz |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
358.0mm (14.1") |
424.0mm (16.7") |
| Width |
201.0mm (7.9") |
224.0mm (8.8") |
| Depth |
326.0mm (12.8") |
327.0mm (12.9") |
| Weight |
7.82kg (17.2lbs) |
9.03kg (19.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
Wood composite laminate |
MDF/Wood-grain vinyl |
| Available Colors |
Walnut, Black |
Ebony, Cherry |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24" |
24-28" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | B | Klipsch RP-160M digs deeper - 45Hz against 48Hz. A subwoofer would even that out. |
| Amplifier needs | B | Klipsch RP-160M is more sensitive (95dB vs 86dB), so it goes louder on the same amplifier. |
| Headroom | B | Klipsch RP-160M takes more power (100W vs 80W) - more in hand in a big room. |
| Size | depends | Wharfedale Reva 2 is easier to place; Klipsch RP-160M is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Wharfedale Reva 2: bi-amping; Klipsch RP-160M: bi-amping. Klipsch RP-160M sits in a wider range (17 models), so a matched surround system is easier later. |
A Wharfedale Reva 2 B Klipsch RP-160M
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch RP-160M has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If your amplifier is modest, vintage or valve-based, Klipsch RP-160M is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
