In this review, we will be comparing Reva 1 and M126Be, two Passive Bookshelf speakers from Wharfedale and Revel.
Let's have a brief look at the main features
of Wharfedale Reva 1 and Revel M126Be first before getting into our more
detailed comparison.
| Key Specs | Wharfedale Reva 1 | Revel M126Be |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Revel
United States · founded 1996 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Dome | 1" Hard-Dome |
|---|
| Woofer | 4.5" Woven Glass Fiber | 6.5" DCC Aluminum |
|---|
| Frequency response | 52-20k Hz | 54-44k Hz |
|---|
| Sensitivity | 86 dB | 86 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 20-60 watts | 50-150 watts |
|---|
| Weight | 5.64kg / 12.4lbs | 10.00kg / 22lbs |
|---|
| Dimensions (H x W x D) | 12-1/2" x 6-13/16" x 11-3/16"
318.0 x 174.0 x 285.0mm | 15-1/4" x 8-5/16" x 10-5/16"
388.0 x 212.0 x 262.0mm |
|---|
What size room are the Wharfedale Reva 1 and Revel M126Be speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale Reva 1 |
Revel M126Be |
| Near-field |
Good |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
No way |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Reva 1 and M126Be are 2-way speakers.
Wharfedale Reva 1Revel M126Be
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale Reva 1 |
Revel M126Be |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 4.5-inch
|
1 x 6.5-inch
|
Reva 1 features a 1" woven textile Dome Tweeter and 1 x 4.5" Woven Glass Fiber Woofer. On the other hand, the M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer.
Frequency Response
Reva 1 has a frequency range of 52-20k Hz whereas M126Be has a frequency range of 54-44k Hz. With a minimum frequency of 52Hz, the Reva 1 can go slightly deeper then the M126Be's min frequency of 54Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Reva 1 and M126Be have the same Impedance of 8 ohms and their sensitivity is also same at 86 dB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
M126Be can handle a max power of 150 watts RMS, whereas Reva 1 has a max power handling value of 60 watts RMS, 90 watts less than the M126Be.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Reva 1 features Post posts which make bi-amping or bi-wiring possible. M126Be has a Binding post which doesn't feature bi-amping/bi-wiring.
Wharfedale Reva 1's Post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Reva 1 has a bottom firing port whereas M126Be has a rear firing ports. Wharfedale Reva 1's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Revel M126Be with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Reva 1's and Revel M126Be's external dimensions. Wharfedale Reva 1 has external dimensions of 318.0 x 174.0 x 285.0mm (12-1/2 x 6-13/16 x 11-3/16inch) whereas Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm (15-1/4 x 8-5/16 x 10-5/16inch).
Wharfedale Reva 1 is 38mm narrower and 70mm shorter than Revel M126Be but it is also 23mm deeper.

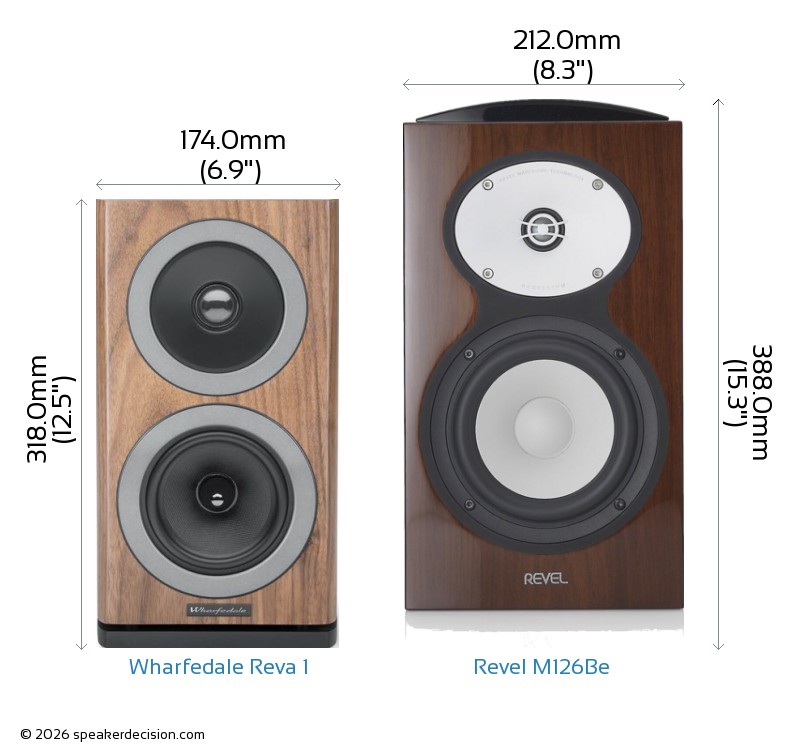

Below you can see the front view size comparison of Wharfedale Reva 1 and Revel M126Be in scale.
Comparison image of Wharfedale Reva 1 and Revel M126Be Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Reva 1 is approximately 495.9cm2 / 76.9inch2 and base area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2. The Reva 1 requires 11% less surface area than the M126Be which gives it a small advantage on placement in tight spaces.

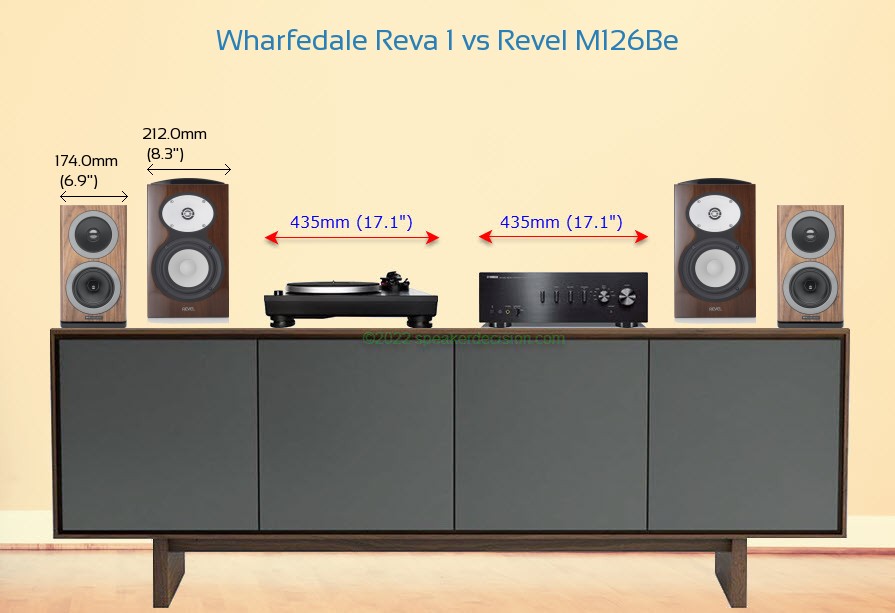

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Wharfedale Reva 1 and Revel M126Be on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale Reva 1 weighs 5.64kg / 12.4lbs and the Revel M126Be weighs 10.00kg / 22lbs. This makes the M126Be 77% heavier than the Reva 1.
Here is a comparison of how Reva 1 and M126Be's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale Reva 1?
Here are the items that are included inside the box of Reva 1:
- 2 Bookshelf loudspeakers
- 2 Grilles (pre-installed)
- 8 Self-adhesive rubber feet
- 4 Jumper bars (pre-installed)
- Pair of white gloves
- User-feets Manual
What's in the Box of Revel M126Be?
Here are the items that come with the M126Be:
- Bookshelf loudspeaker
- Grille
- Foam port plug
- Owners Manual
 Low Frequency Response |
52 Hz
vs
54 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
318mm
vs
388mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
495cm2
vs
555cm2
|
Takes less floor space |
 Price per pair* |
799USD
vs
4400USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
150 watts
vs
60 watts
|
Handle more power from your amplifier |
|
Woofer Size |
6.5 inches
vs
4.5 inches
|
Larger woofer |
 High Frequency Response |
44k Hz
vs
20k Hz
|
Generates higher frequency |
| General |
Wharfedale Reva 1 |
Revel PerformaBe M126Be |
| Brand |
Wharfedale |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
20-60 watts |
50-150 watts |
| Sensitivity |
86 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
52-20k Hz |
54-44k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
4.5" |
6.5" |
| Woofer Composition |
Woven Glass Fiber |
DCC Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
Hard-Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
318.0mm (12.5") |
388.0mm (15.3") |
| Width |
174.0mm (6.9") |
212.0mm (8.3") |
| Depth |
285.0mm (11.2") |
262.0mm (10.3") |
| Weight |
5.64kg (12.4lbs) |
10.00kg (22lbs) |
| Enclosure |
Bass Reflex |
Bass reflex |
| Finish |
Wood composite laminate |
Wood/Lacquer |
| Available Colors |
Walnut |
Walnut,Black,White,Silver |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
28-30" |
22-26" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Revel M126Be costs roughly 5.5x what Wharfedale Reva 1 does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | evenly matched | Much the same reach (52Hz vs 54Hz). |
| Amplifier needs | evenly matched | Similar sensitivity (86dB vs 86dB) - both want much the same power. |
| Headroom | B | Revel M126Be takes more power (150W vs 60W) - more in hand in a big room. |
| Size | depends | Wharfedale Reva 1 is easier to place; Revel M126Be is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | A | Wharfedale Reva 1: bi-amping. |
| Price | A | Wharfedale Reva 1 is cheaper - $799 against $4,400, about 82% less; arguably a different class. |
A Wharfedale Reva 1 B Revel M126Be
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. Match it to your room: we rate Wharfedale Reva 1 the better fit for near-field listening and a small room, and Revel M126Be for a mid-size room and a large room. Think about the whole system, not just the speakers: the roughly $3,601 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
