In this review, we will be comparing Diamond 12.3i and RP-280F, two Passive Floor-standing speakers from Wharfedale and Klipsch.
Let's have a brief look at the main features
of Wharfedale Diamond 12.3i and Klipsch RP-280F first before getting into our more
detailed comparison.
| Key Specs | Wharfedale Diamond 12.3i | Klipsch RP-280F |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Soft-Dome | 1" Tractrix Horn |
|---|
| Woofer | 2 x 5" Mica-infused polypropylene | 2 x 8" Cerametallic |
|---|
| Frequency response | 45-20k Hz | 32-25k Hz |
|---|
| Sensitivity | 89 dB | 98 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 30-150 watts | up to 150 watts |
|---|
| Weight | 19.55kg / 43lbs | 28.41kg / 62.5lbs |
|---|
| Dimensions (H x W x D) | 38-3/4" x 9-3/4" x 13-3/4"
985.0 x 248.0 x 350.0mm | 43-1/16" x 10-9/16" x 17-3/8"
1094.0 x 269.0 x 442.0mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Diamond 12.3i and RP-280F are 2-way speakers.
Wharfedale Diamond 12.3iKlipsch RP-280F
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale Diamond 12.3i |
Klipsch RP-280F |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5-inch
|
2 x 8-inch
|
Diamond 12.3i features a 1" Soft-Dome Tweeter and 2 x 5" Mica-infused polypropylene Woofer. On the other hand, the RP-280F features a 1" Tractrix Horn Tweeter and 2 x 8" Cerametallic Woofer with a Crossover frequency at 1750 Hz.
Frequency Response
Diamond 12.3i has a frequency range of 45-20k Hz whereas RP-280F has a frequency range of 32-25k Hz. With a minimum frequency of 32Hz, the RP-280F can go significantly deeper on the low side and provide stronger bass compared to the Diamond 12.3i's min frequency of 45Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Diamond 12.3i and RP-280F have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Diamond 12.3i sensitivity is rated at 89 dB and the RP-280F's is at 98 dB. This 9 dB difference makes the Klipsch RP-280F a more sensitive speaker compared to Wharfedale Diamond 12.3i, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 150 watts RMS, though Diamond 12.3i is rated 30-150 watts and RP-280F up to 150 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Diamond 12.3i and RP-280F features dual binding post speaker terminals for bi-amping or bi-wiring.
Klipsch RP-280F's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Diamond 12.3i's and Klipsch RP-280F's external dimensions. Wharfedale Diamond 12.3i has external dimensions of 985.0 x 248.0 x 350.0mm (38-3/4inch x 9-3/4inch x 13-3/4inch) whereas Klipsch RP-280F has external dimensions of 1094.0 x 269.0 x 442.0mm (43-1/16 x 10-9/16 x 17-3/8inch).
Klipsch RP-280F is clearly the larger of the two speakers. Its body is 21mm wider, 109mm taller and 92mm deeper than Wharfedale Diamond 12.3i.

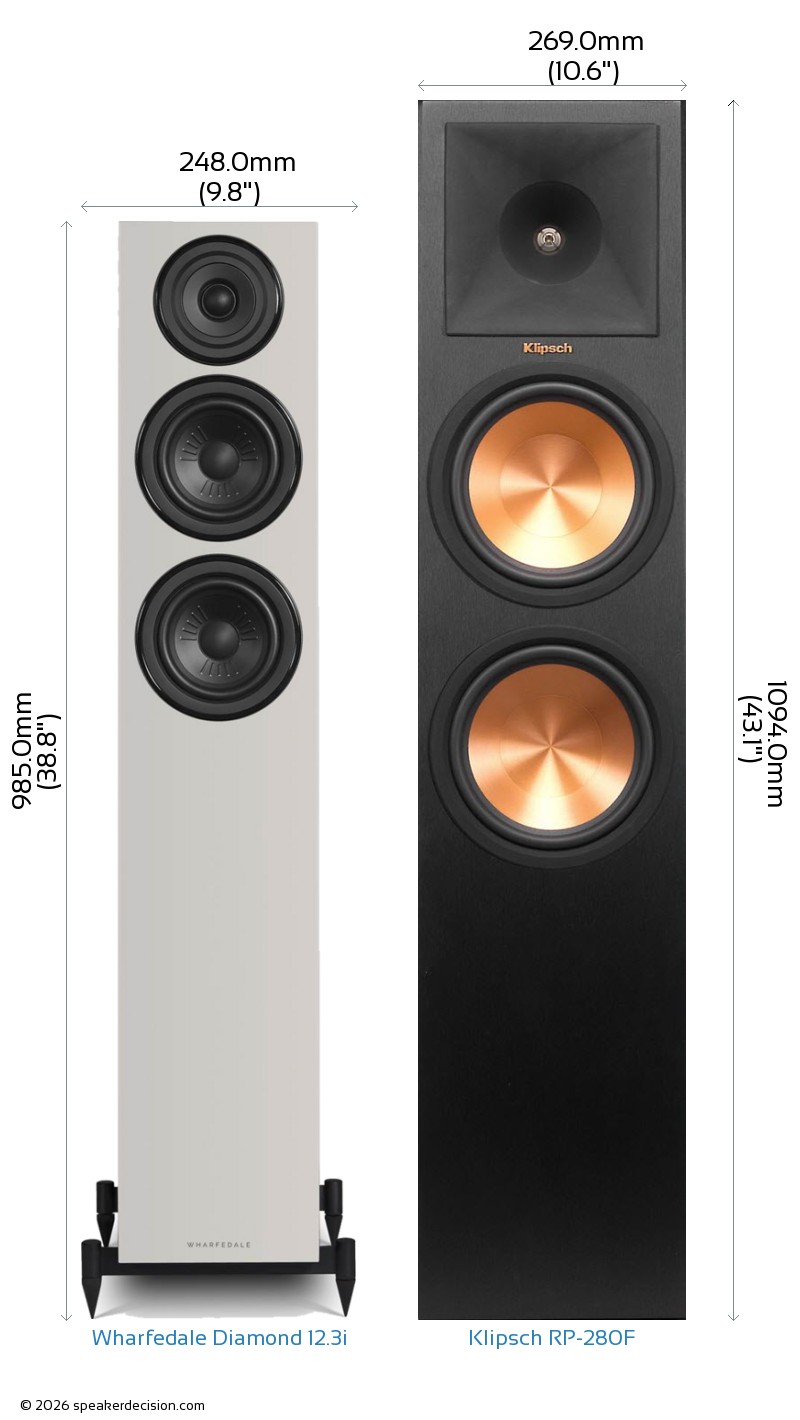

Below you can see the front view size comparison of Wharfedale Diamond 12.3i and Klipsch RP-280F in scale.
Comparison image of Wharfedale Diamond 12.3i and Klipsch RP-280F Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Diamond 12.3i is approximately 868.0cm2 / 134.5inch2 and base area of the Klipsch RP-280F is approximately 1189.0cm2 / 184.3inch2. The Diamond 12.3i requires 27% less surface area than the RP-280F which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale Diamond 12.3i weighs 19.55kg / 43lbs and the Klipsch RP-280F weighs 28.41kg / 62.5lbs. This makes the RP-280F 45% heavier than the Diamond 12.3i.
Here is a comparison of how Diamond 12.3i and RP-280F's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Wharfedale Diamond 12.3i?
Here are the items that are included inside the box of Diamond 12.3i:
- 2 Floorstanding loudspeakers
- 2 Grilles
- 4 Outrigger feet
- 8 Spikes (pre-installed on outrigger feet)
- 8 Isolation pucks
- Eight M6x25mm phillips-head screws
- User's Manual
What's in the Box of Klipsch RP-280F?
Here are the items that come with the RP-280F:
- Floorstanding loudspeaker (Ebony)
- Speaker base
- Detachable magnetic grille
- Four 1-inch #6 Wood screws
- 4 Spike feet
- 6 Rubber feet
- User Manual
- Warranty Information
- Important Safety Instructions
 Height |
985mm
vs
1094mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
868cm2
vs
1189cm2
|
Takes less floor space |
 Sensitivity |
98 dB
vs
89 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
8 inches
vs
5 inches
|
Larger woofer |
|
Low Frequency Response |
32 Hz
vs
45 Hz
|
Generates deeper bass |
 High Frequency Response |
25k Hz
vs
20k Hz
|
Generates higher frequency |
| General |
Wharfedale Diamond 12.3i |
Klipsch Reference Premiere RP-280F |
| Brand |
Wharfedale |
Klipsch |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
30-150 watts |
up to 150 watts |
| Sensitivity |
89 dB |
98 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
45-20k Hz |
32-25k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5" |
8" |
| Woofer Composition |
Mica-infused polypropylene |
Cerametallic |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-Dome |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1750 Hz |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
985.0mm (38.8") |
1094.0mm (43.1") |
| Width |
248.0mm (9.8") |
269.0mm (10.6") |
| Depth |
350.0mm (13.8") |
442.0mm (17.4") |
| Weight |
19.55kg (43lbs) |
28.41kg (62.5lbs) |
| Enclosure |
|
Bass Reflex |
| Finish |
MDF/Vinyl |
MDF/Wood-grain vinyl |
| Available Colors |
Grey |
Walnut, Black |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
A generation apart: Wharfedale Diamond 12.3i is the newer design, against a 2015 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | B | Klipsch RP-280F digs deeper - 32Hz against 45Hz. |
| Amplifier needs | B | Klipsch RP-280F is more sensitive (98dB vs 89dB), so it goes louder on the same amplifier. |
| Headroom | evenly matched | Similar power handling (150W vs 150W). |
| Size | depends | Wharfedale Diamond 12.3i is easier to place; Klipsch RP-280F is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Wharfedale Diamond 12.3i: bi-amping; Klipsch RP-280F: bi-amping. Klipsch RP-280F sits in a wider range (17 models), so a matched surround system is easier later. |
| Price | evenly matched | Much the same money ($1,198 vs $1,198 a pair). |
A Wharfedale Diamond 12.3i B Klipsch RP-280F
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch RP-280F has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 45Hz anyway, so judge these on the other rows instead. In a large or open-plan room, Klipsch RP-280F has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Wharfedale Diamond 12.3i is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
