In this review, we will be comparing 3020i and EVO4.2, two Passive Bookshelf speakers from Q Acoustics and Wharfedale.
Let's have a brief look at the main features
of Q Acoustics 3020i and Wharfedale EVO4.2 first before getting into our more
detailed comparison.
Q Acoustics 3020i Key Specs
- 2-way Design
- 0.9" decoupled Tweeter
- 5" Coated paper Woofer
- 64-30k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-75watts
- Weight:4.80kg
- Dimensions (H x W x D): 278.0" x 6.6" x 11.1"( 278.0 x 170.0 x 282.0mm )
Wharfedale EVO4.2 Key Specs
- 3-way Design
- 1.18x2.36" AMT (Ribbon) Tweeter
- 2" Midrange
- 6.5" Kevlar Woofer
- 2" Midrange
- 54-22k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-120watts
- Weight:13.40kg
- Dimensions (H x W x D): 455.0" x 9.8" x 13.7"( 455.0 x 250.0 x 350.0mm )
What size room are the Q Acoustics 3020i and Wharfedale EVO4.2 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Q Acoustics 3020i |
Wharfedale EVO4.2 |
| Near-field |
Good |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
No way |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Q Acoustics 3020i and Wharfedale EVO4.2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that 3020i is a 2-way design whereas the EVO4.2 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Q Acoustics 3020i |
Wharfedale EVO4.2 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
0.9-inch
|
1.18x2.36-inch
|
|
Midrange
|
- |
1 x 2-inch |
|
Woofer
|
1 x 5-inch
|
1 x 6.5-inch
|
3020i features a 0.9" decoupled Tweeter and 1 x 5" Coated paper Woofer with a Crossover frequency at 2400Hz. On the other hand, the EVO4.2 features a 1.18x2.36" AMT (Ribbon) Tweeter , a 2" Midrange and 1 x 6.5" Kevlar Woofer .
Frequency Response
3020i has a frequency range of 64-30k Hz whereas EVO4.2 has a frequency range of 54-22k Hz. With a minimum frequency of 54Hz, the EVO4.2 can go significantly deeper on the low side and provide stronger bass compared to the 3020i's min frequency of 63Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
3020i is a 6 ohms speaker compared to the EVO4.2 which has a nominal impedance of 8 ohms.
On the other hand, they have the same sensitivity of 88 dBdB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
3020i can handle a max power of 120 watts RMS from the amp the whereas 3020i has a max power handling value of 75 watts RMS , 45 watts less than the EVO4.2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
EVO4.2 features Post posts which make bi-amping or bi-wiring possible. 3020i has a Binding post which doesn't feature bi-amping/bi-wiring.
Cabinet Type and Port Position
3020i has a rear firing port whereas EVO4.2 has a bottom firing ports. Wharfedale EVO4.2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Q Acoustics 3020i with its rear-firing port.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Q Acoustics 3020i's and Wharfedale EVO4.2's external dimensions. Q Acoustics 3020i has external dimensions of 278.0 x 170.0 x 282.0mm ( 10.9 x 6.6 x 11.1inch) whereas Wharfedale EVO4.2 has external dimensions of 455.0 x 250.0 x 350.0mm ( 17.9 x 9.8 x 13.7inch) .
Wharfedale EVO4.2 is clearly the larger of the two speakers. Its body is 80mm wider, 177mm taller and 68mm deeper than Q Acoustics 3020i.

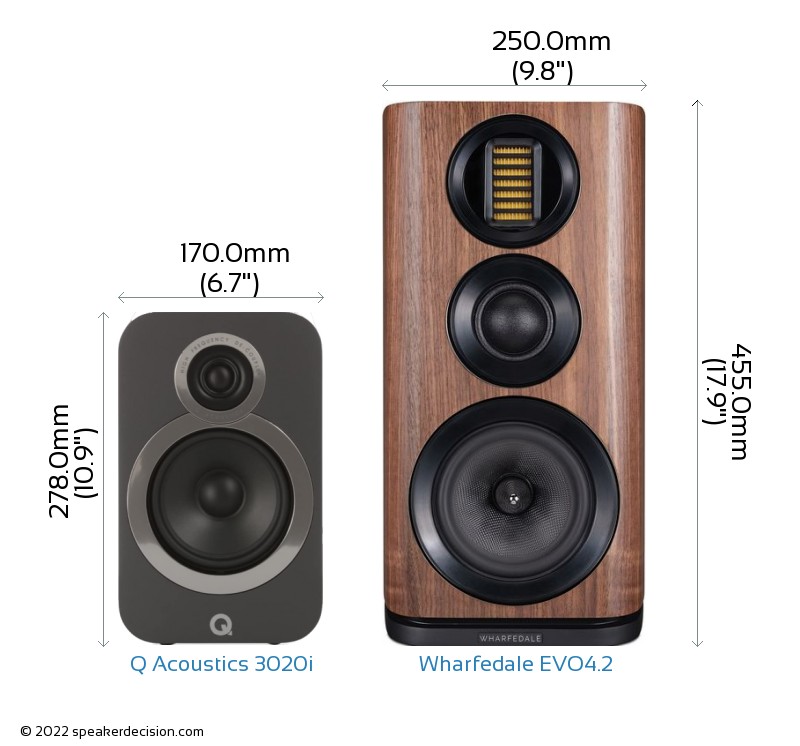

Below you can see the front view size comparison of Q Acoustics 3020i and Wharfedale EVO4.2 in scale.
Comparison image of Q Acoustics 3020i and Wharfedale EVO4.2 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Q Acoustics 3020i is approximately 479.4cm2 / 74.3inch2 and base area of the Wharfedale EVO4.2 is approximately 875.0cm2 / 135.6inch2. The 3020i requires 45% less surface area than the EVO4.2 which gives it a small advantage on placement in tight spaces.

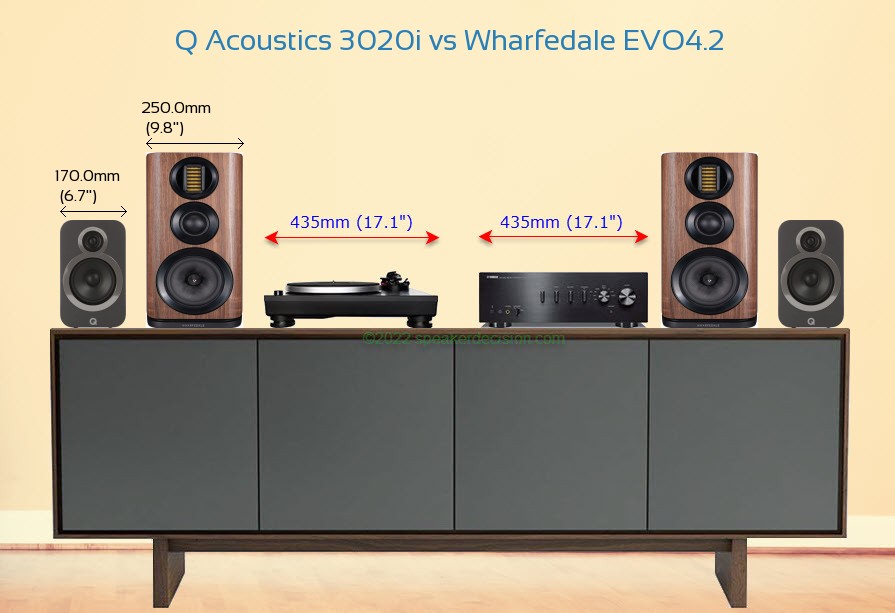

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Q Acoustics 3020i and Wharfedale EVO4.2 on a Media Console
