In this review, we will be comparing Imagine X1T and S50, two Passive Floor-standing speakers from PSB and Polk Audio. Let's have a brief look at the main features
of PSB Imagine X1T and Polk S50 first before getting into our more
detailed comparison.
What size room are the PSB Imagine X1T and Polk S50 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the PSB Imagine X1T and Polk S50 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Imagine X1T and S50 are 2-way speakers.
| Driver |
PSB Imagine X1T |
Polk S50 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.25-inch
|
2 x 5.25-inch
|
Imagine X1T features a 1" titanium with neodymium magnets Dome Tweeter and 2 x 5.25" Clay/Ceramic/Poly Woofer with a Crossover frequency at 1800Hz. On the other hand, the S50 features a 1" Terylene Dome Tweeter and 2 x 5.25" Mica-reinforced polypropylene Woofer with a Crossover frequency at 2500Hz.
Frequency Response
Imagine X1T has a frequency range of 35-23k Hz whereas S50 has a frequency range of 33-40k Hz. With a minimum frequency of 33Hz, the S50 can go slightly deeper then the Imagine X1T's min frequency of 35Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Imagine X1T and S50 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Imagine X1T sensitivity is rated at 90 dB and the S50's is at 89 dB. This 1 dB difference makes the PSB Imagine X1T a more sensitive speaker compared to Polk S50, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Imagine X1T can handle a max power of 200 watts RMS from the amp the whereas S50 has a max power handling value of 150 watts RMS, 50 watts less than the Imagine X1T.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Imagine X1T and S50 features dual binding post speaker terminals for bi-amping or bi-wiring.
PSB Imagine X1T's 5-Way post terminals allows Bi-amping or bi-wiring
Polk S50's 5-way post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Imagine X1T has a front firing port whereas S50 has a bottom firing ports. PSB Imagine X1T's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Polk S50 with its rear-firing port.
Polk S50 Port
Physical Specs

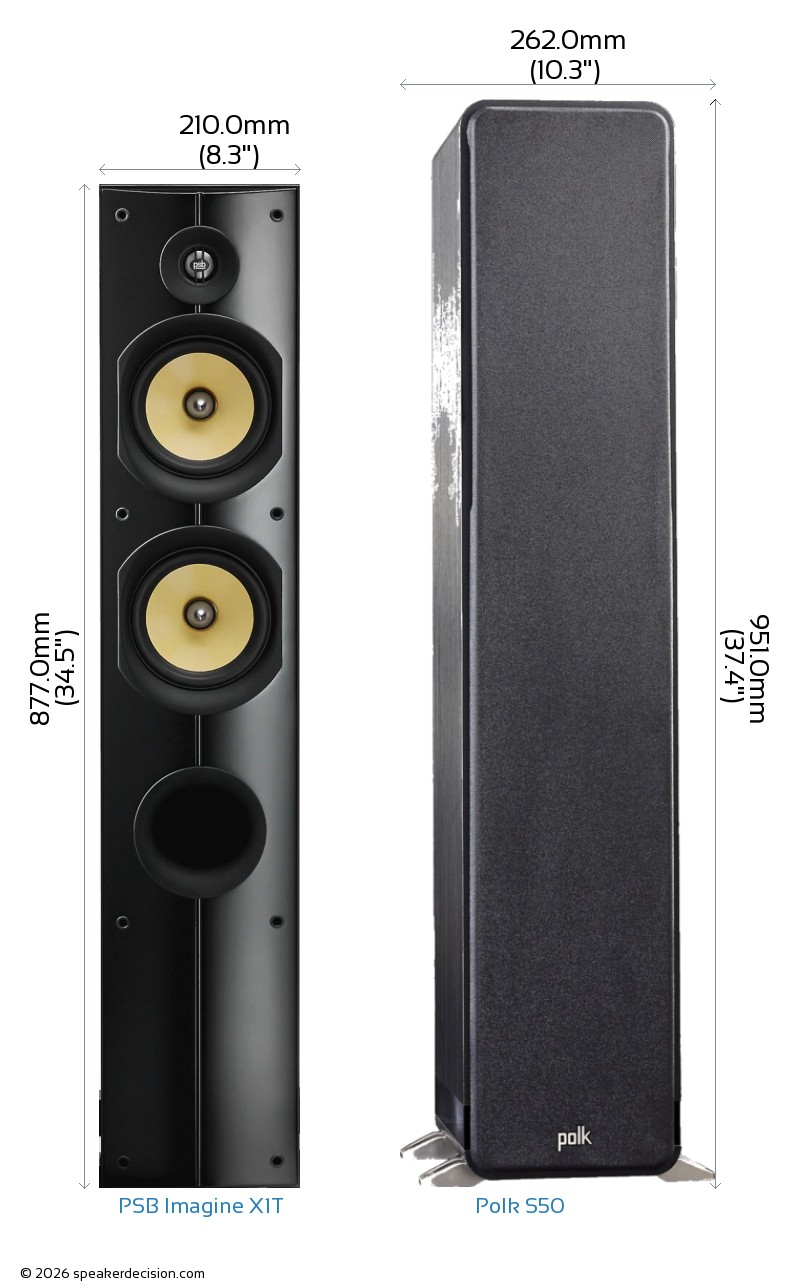

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB Imagine X1T's and Polk S50's external dimensions. PSB Imagine X1T has external dimensions of 877.0 x 210.0 x 378.0mm ( 34-1/2 x 8-1/4 x 14-7/8inch) whereas Polk S50 has external dimensions of 951.0 x 262.0 x 281.0mm ( 37-7/16 x 10-5/16 x 11-1/16inch) .
PSB Imagine X1T is 52mm narrower and 74mm shorter than Polk S50 but it is also 97mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB Imagine X1T is approximately 793.8cm2 / 123.0inch2 and base area of the Polk S50 is approximately 736.2cm2 / 114.1inch2. The Imagine X1T requires 8% more surface area than the S50 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The PSB Imagine X1T weighs 17.30kg / 38.1lbs and the Polk S50 weighs 14.50kg / 31.9lbs. This makes the Imagine X1T 19% heavier than the S50.
Here is a comparison of how Imagine X1T and S50's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of PSB Imagine X1T?
Here are the items that are included inside the box of Imagine X1T:
Floor-standing speakerGrille4 Rubber feet4 Spiked FeetWrenchQuick Start GuideWarranty Card
What's in the Box of Polk S50?
Here are the items that come with the S50:
Floorstanding loudspeakerGrille (attached)4 Feet (pre-installed)Owners ManualOnline Product Registration
 Max Input Power |
200 watts
vs
150 watts
|
Handle more power from your amplifier |
 Sensitivity |
90 dB
vs
89 dB
|
Play louder with same amount of amplification power |
 Height |
877mm
vs
951mm
|
Easier to fit in smaller spaces |
 Low Frequency Response |
33 Hz
vs
35 Hz
|
Generates deeper bass |
 High Frequency Response |
40k Hz
vs
23k Hz
|
Generates higher frequency |
 Base Surface Area |
736cm2 (262x281mm)
vs
793cm2 (210x378mm)
|
Takes less floor space |
| General |
PSB Imagine X1T |
Polk Audio Signature S50 |
| Brand |
PSB |
Polk Audio |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
20-200 watts |
20-150 watts |
| Sensitivity |
90 dB |
89 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
4 ohms |
n/a |
| Frequency Response |
35-23k Hz |
33-40k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
Clay/Ceramic/Poly |
Mica-reinforced polypropylene |
| Woofer Surround Material |
Rubber |
Butyl rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
1800Hz |
2500Hz |
| Firing Direction |
front |
bottom |
Physical Specs |
|
|
| Height |
877.0mm (34.5") |
951.0mm (37.4") |
| Width |
210.0mm (8.3") |
262.0mm (10.3") |
| Depth |
378.0mm (14.9") |
281.0mm (11.1") |
| Weight |
17.30kg (38.1lbs) |
14.50kg (31.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain |
Meddite MDF |
| Available Colors |
Black |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
