In this review, we will be comparing Imagine X1T and C 97 II, two Passive Floor-standing speakers from PSB and Jamo.
Let's have a brief look at the main features
of PSB Imagine X1T and Jamo C 97 II first before getting into our more
detailed comparison.
PSB Imagine X1T Key Specs
- 2-way Design
- 1" Dome Tweeter
- 2 x 5.25" Clay/Ceramic/Poly Woofer
- 35-23k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-200watts
- Weight:17.30kg
- Dimensions (H x W x D): 877.0" x 8-1/4" x 14-7/8"( 877.0 x 210.0 x 378.0mm )
Jamo C 97 II Key Specs
- 3-way Design
- 1" Tweeter
- 6" Midrange
- 3 x 6" Composite Woofer
- 6" Midrange
- 32-24k Hz Frequency Response
- 89 dB Sensitivity
- Impedance: 6ohms
- Power Range:50-180watts
- Weight:24.55kg
- Dimensions (H x W x D): 1070.0" x 9-3/4" x 15-13/16"( 1070.0 x 248.0 x 402.0mm )
What size room are the PSB Imagine X1T and Jamo C 97 II speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
PSB Imagine X1T |
Jamo C 97 II |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the PSB Imagine X1T and Jamo C 97 II compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Imagine X1T is a 2-way design whereas the C 97 II is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
PSB Imagine X1T |
Jamo C 97 II |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 6-inch |
|
Woofer
|
2 x 5.25-inch
|
3 x 6-inch
|
Imagine X1T features a 1" titanium with neodymium magnets Dome Tweeter and 2 x 5.25" Clay/Ceramic/Poly Woofer with a Crossover frequency at 1800Hz. On the other hand, the C 97 II features a 1" Tweeter , a 6" Midrange and 3 x 6" Composite Woofer .
Frequency Response
Imagine X1T has a frequency range of 35-23k Hz whereas C 97 II has a frequency range of 32-24k Hz. With a minimum frequency of 32Hz, the C 97 II can go slightly deeper then the Imagine X1T's min frequency of 35Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Imagine X1T is a 8 ohms speaker compared to the C 97 II which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Imagine X1T sensitivity is rated at 90 dB and the C 97 II's is rated at 89 dB. This 1 dB difference makes the PSB Imagine X1T a more sensitive speaker compared to Jamo C 97 II, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Imagine X1T can handle a max power of 200 watts RMS from the amp the whereas C 97 II has a max power handling value of 180 watts RMS, 20 watts less than the Imagine X1T.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Imagine X1T and C 97 II features dual binding post speaker terminals for bi-amping or bi-wiring.
PSB Imagine X1T's 5-Way post terminals allows Bi-amping or bi-wiring
Jamo C 97 II's Posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Imagine X1T has a front firing port whereas C 97 II has a rear firing ports. PSB Imagine X1T's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Jamo C 97 II with its rear-firing port.
Physical Specs

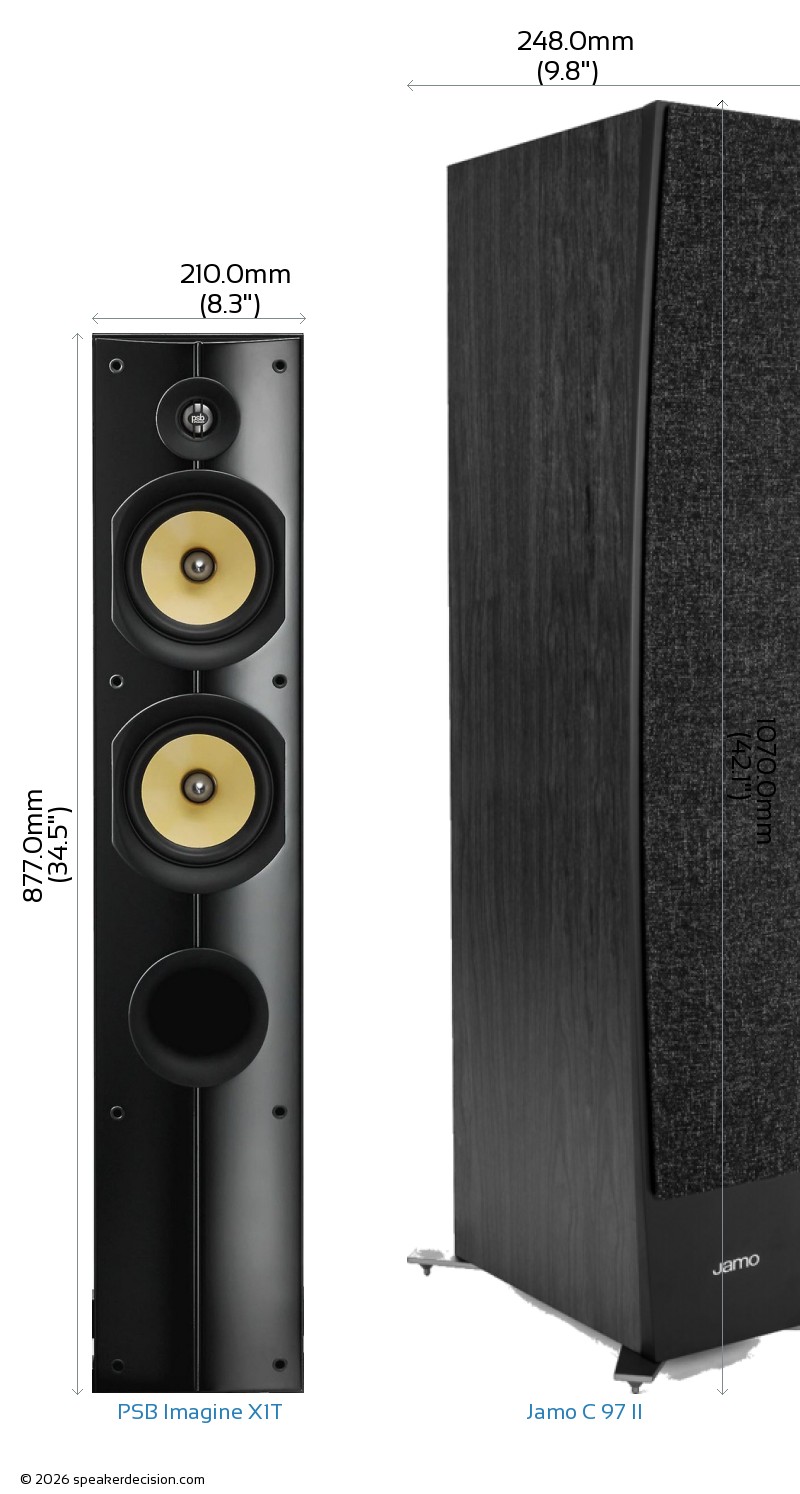

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB Imagine X1T's and Jamo C 97 II's external dimensions. PSB Imagine X1T has external dimensions of 877.0 x 210.0 x 378.0mm ( 34-1/2 x 8-1/4 x 14-7/8inch) whereas Jamo C 97 II has external dimensions of 1070.0 x 248.0 x 402.0mm ( 42-1/8 x 9-3/4 x 15-13/16inch) .
Jamo C 97 II is clearly the larger of the two speakers. Its body is 38mm wider, 193mm taller and 24mm deeper than PSB Imagine X1T.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB Imagine X1T is approximately 793.8cm2 / 123.0inch2 and base area of the Jamo C 97 II is approximately 997.0cm2 / 154.5inch2. The Imagine X1T requires 20% less surface area than the C 97 II which gives it a small advantage on placement in tight spaces.
