In this review, we will be comparing W250-LCR and W280-IDC, two Passive In-wall speakers by Monitor Audio
Let's have a brief look at the main features
of Monitor Audio W250-LCR and Monitor Audio W280-IDC first before getting into our more
detailed comparison.
Monitor Audio W250-LCR Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 2 x 5" Metal Matrix Polymer Woofer
- 60-30kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-100watts
- Dimensions (H x W x D): 353.0" x 5.7500" x 4.0000"( 353.0 x 147.0 x 102.0mm )
Monitor Audio W280-IDC Key Specs
- 3-way Design
- 1" Hard-Dome Tweeter
- 4" Midrange
- 8" C-CAM Woofer
- 4" Midrange
- 45-30kHz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:30-120watts
- Dimensions (H x W x D): 388.0" x 9.1875" x 3.6875"( 388.0 x 234.0 x 94.0mm )
What size room are the Monitor Audio W250-LCR and Monitor Audio W280-IDC speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Monitor Audio W250-LCR |
Monitor Audio W280-IDC |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Monitor Audio W250-LCR and Monitor Audio W280-IDC compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that W250-LCR is a 2-way design whereas the W280-IDC is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Monitor Audio W250-LCR |
Monitor Audio W280-IDC |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 4-inch |
|
Woofer
|
2 x 5-inch
|
1 x 8-inch
|
W250-LCR features a 1" Hard-Dome Tweeter and 2 x 5" Metal Matrix Polymer Woofer . On the other hand, the W280-IDC features a 1" Hard-Dome Tweeter , a 4" Midrange and 1 x 8" C-CAM Woofer .
Frequency Response
W250-LCR has a frequency range of 60-30kHz whereas W280-IDC has a frequency range of 45-30kHz. With a minimum frequency of 45Hz, the W280-IDC can go significantly deeper on the low side and provide stronger bass compared to the W250-LCR's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
High Frequency
In-wall Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
W250-LCR is a 8 ohms speaker compared to the W280-IDC which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. W250-LCR sensitivity is rated at 88 dB and the W280-IDC's is rated at 90 dB. This 2 dB difference makes the Monitor Audio W280-IDC a more sensitive speaker compared to Monitor Audio W250-LCR, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
W250-LCR can handle a max power of 120 watts RMS from the amp the whereas W250-LCR has a max power handling value of 100 watts RMS , 20 watts less than the W280-IDC.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
W250-LCR features Spring post type posts and W280-IDC has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.

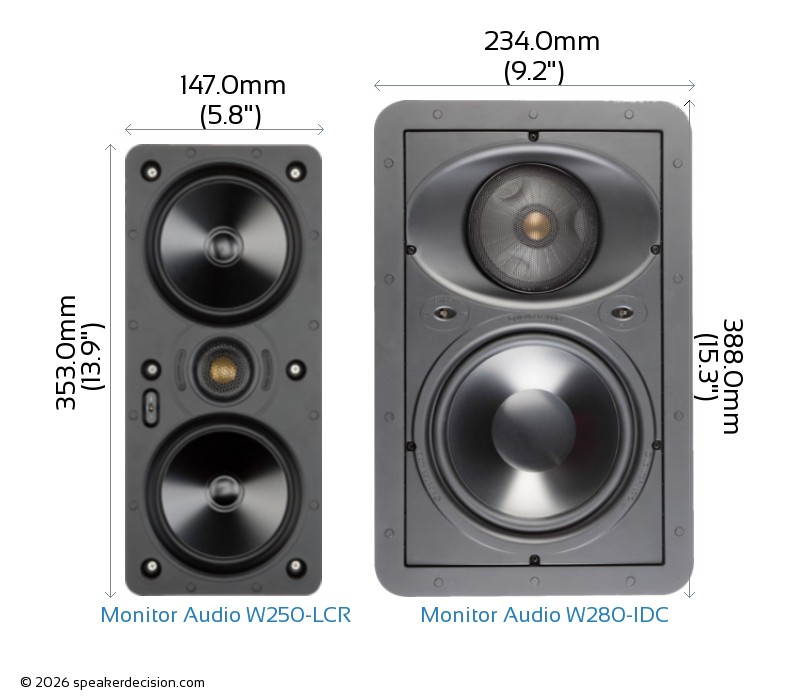

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio W250-LCR's and Monitor Audio W280-IDC's external dimensions. Monitor Audio W250-LCR has external dimensions of 353.0 x 147.0 x 102.0mm ( 13.8750-inch x 5.7500-inch x 4.0000-inch) whereas Monitor Audio W280-IDC has external dimensions of 388.0 x 234.0 x 94.0mm ( 15.2500-inch x 9.1875-inch x 3.6875-inch) .
Monitor Audio W250-LCR is 87mm narrower and 35mm shorter than Monitor Audio W280-IDC but it is also 8mm deeper.
What's in the Box of Monitor Audio W250-LCR?
Here are the items that are included inside the box of W250-LCR:
In-wall speakerGrillePaint skimInstallation GuideImportant Safety InstructionsCutout Template
What's in the Box of Monitor Audio W280-IDC?
Here are the items that come with the W280-IDC:
In-Wall speakerGrillePaint skimInstallation GuideImportant Safety InstructionsCutout Template
