In this review, we will be comparing Silver 500 7G and HDI-3800, two Passive Floor-standing speakers from Monitor Audio and JBL. Let's have a brief look at the main features
of Monitor Audio Silver 500 7G and JBL HDI-3800 first before getting into our more
detailed comparison.
Monitor Audio Silver 500 7G Key Specs
- 3-way Design
- 1" gold dome C-CAM with Uniform Dispersion (UD) Waveguide II Tweeter
- 3" Midrange
- 2 x 8" C-CAM RST II Woofer
- 27-35k Hz Frequency Response
- 90.5 dB Sensitivity
- Impedance: 8ohms
- Power Range:80-250watts
- Weight:22.53kg
- Dimensions (H x W x D): 1085.0" x 12-11/16" x 15-7/16"( 1085.0 x 323.0 x 393.0mm )
JBL HDI-3800 Key Specs
- 2-way Design
- 1" Tweeter
- 3 x 8" Aluminum Woofer
- 37-30k Hz Frequency Response
- 92 dB Sensitivity
- Impedance: 4ohms
- Power Range:25-300watts
- Weight:38.08kg
- Dimensions (H x W x D): 1143.0" x 11-15/16" x 16-9/16"( 1143.0 x 304.0 x 421.0mm )
What size room are the Monitor Audio Silver 500 7G and JBL HDI-3800 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
Monitor Audio Silver 500 7G |
JBL HDI-3800 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Average |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Monitor Audio Silver 500 7G and JBL HDI-3800 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Silver 500 7G is a 3-way design whereas the HDI-3800 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Monitor Audio Silver 500 7G |
JBL HDI-3800 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 3-inch |
- |
|
Woofer
|
2 x 8-inch
|
3 x 8-inch
|
Silver 500 7G features a 1" gold dome C-CAM with Uniform Dispersion (UD) Waveguide II Tweeter , a 3" Midrange and 2 x 8" C-CAM RST II Woofer . On the other hand, the HDI-3800 features a 1" Tweeter and 3 x 8" Aluminum Woofer .
Frequency Response
Silver 500 7G has a frequency range of 27-35k Hz whereas HDI-3800 has a frequency range of 37-30k Hz. With a minimum frequency of 27Hz, the Silver 500 7G can go significantly deeper on the low side and provide stronger bass compared to the HDI-3800's min frequency of 37Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
Monitor Audio Silver 500 7G
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Silver 500 7G is a 8 ohms speaker compared to the HDI-3800 which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the HDI-3800 can provide this impedance level.
These two speakers also have different sensitivity levels. Silver 500 7G sensitivity is rated at 90.5 dB and the HDI-3800's is rated at 92 dB. This 1 dB difference makes the JBL HDI-3800 a more sensitive speaker compared to Monitor Audio Silver 500 7G, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Silver 500 7G can handle a max power of 300 watts RMS from the amp the whereas Silver 500 7G has a max power handling value of 250 watts RMS , 50 watts less than the HDI-3800.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Silver 500 7G and HDI-3800 features dual binding post speaker terminals for bi-amping or bi-wiring.
Cabinet Type and Port Position
Both Silver 500 7G and HDI-3800 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

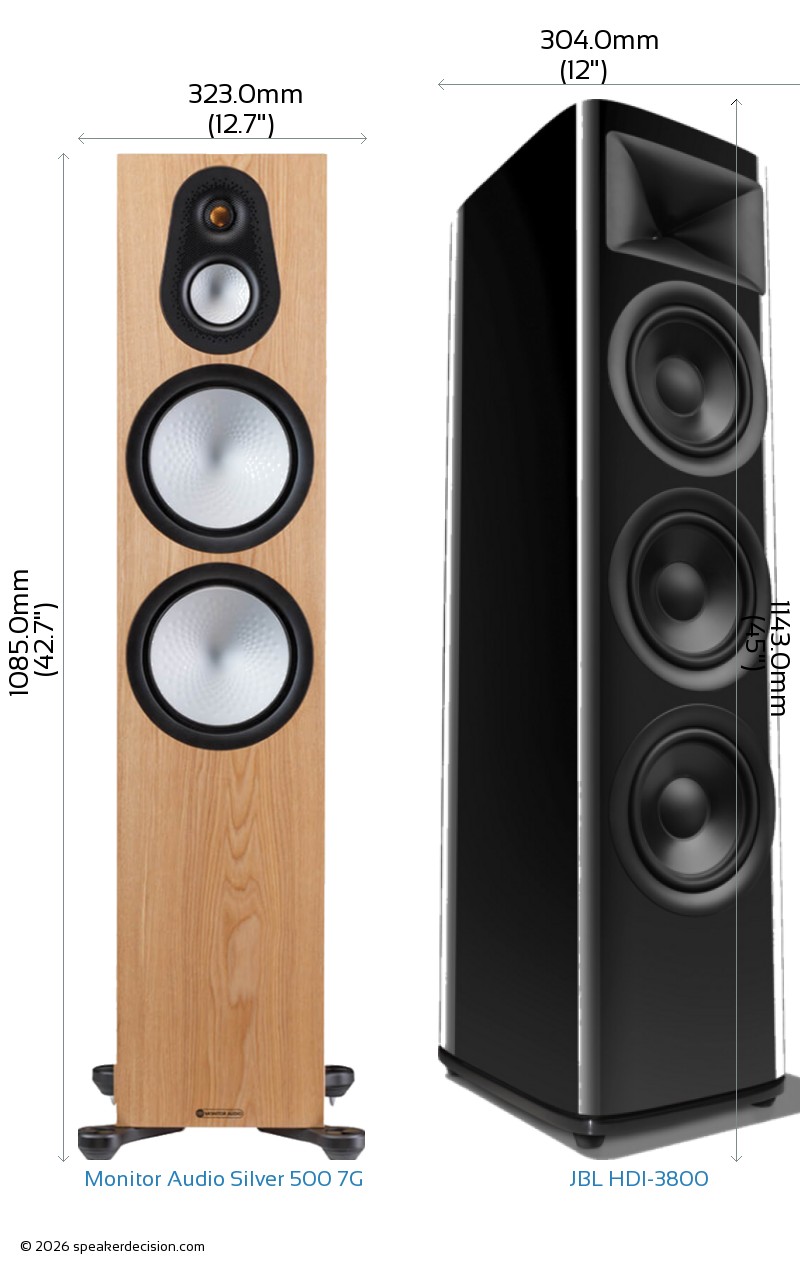

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio Silver 500 7G's and JBL HDI-3800's external dimensions. Monitor Audio Silver 500 7G has external dimensions of 1085.0 x 323.0 x 393.0mm ( 42-11/16 x 12-11/16 x 15-7/16inch) whereas JBL HDI-3800 has external dimensions of 1143.0 x 304.0 x 421.0mm ( 45 x 11-15/16 x 16-9/16inch) .
Monitor Audio Silver 500 7G is 58mm shorter and 28mm less deeper than JBL HDI-3800 but it is also 19mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Monitor Audio Silver 500 7G is approximately 1269.4cm2 / 196.8inch2 and base area of the JBL HDI-3800 is approximately 1279.8cm2 / 198.4inch2. The Silver 500 7G requires 1% less surface area than the HDI-3800 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Monitor Audio Silver 500 7G weighs 22.53kg / 49.6lbs and the JBL HDI-3800 weighs 38.08kg / 83.8lbs. This makes the HDI-3800 69% heavier than the Silver 500 7G.
Here is a comparison of how Silver 500 7G and HDI-3800's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
Monitor Audio Silver 500 7G
What's in the Box of Monitor Audio Silver 500 7G?
Here are the items that are included inside the box of Silver 500 7G:
Floorstanding loudspeakerGrille4 Outrigger feet4 Rubber feet (pre-installed on outrigger feet)4 Spikes4 Bolts4 Machine screws2 Foam port plugs2 Hex-keysOwners ManualImportant Safety Instructions
What's in the Box of JBL HDI-3800?
Here are the items that come with the HDI-3800:
Floorstanding loudspeakerGrille2 Jumper-straps (pre-installed)4 Spike feetOwners Manual
