In this review, we will be comparing MartinLogan Foundation F2 and Prime Tower, two Passive Floor-standing speakers from MartinLogan and SVS.
Let's have a brief look at the main features
of MartinLogan Foundation F2 and SVS Prime Tower first before getting into our more
detailed comparison.
MartinLogan Foundation F2 Key Specs
- 3-way Design
- 1" Folded Motion Ribbon Tweeter
- 5.5" Midrange
- 3 x 6.5" Aluminum Woofer
- 36-23k Hz Frequency Response
- 92 dB Sensitivity
- Impedance: 4ohms
- Power Range:up to 200watts
- Weight:23.86kg
- Dimensions (H x W x D): 1129.0" x 8-3/4" x 16"( 1129.0 x 223.0 x 407.0mm )
SVS Prime Tower Key Specs
- 3-way Design
- 1" dome Tweeter
- 4.5" Midrange
- 2 x 6.5" Polypropylene Woofer
- 4.5" Midrange
- 30-25k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-250watts
- Weight:18.23kg
- Dimensions (H x W x D): 931.0" x 8" x 11-11/16"( 931.0 x 204.0 x 297.0mm )
What size room are the MartinLogan Foundation F2 and SVS Prime Tower speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
MartinLogan Foundation F2 |
SVS Prime Tower |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the MartinLogan Foundation F2 and SVS Prime Tower compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both MartinLogan Foundation F2 and Prime Tower are 3-way speakers.
| Driver |
MartinLogan Foundation F2 |
SVS Prime Tower |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.5-inch |
1 x 4.5-inch |
|
Woofer
|
3 x 6.5-inch
|
2 x 6.5-inch
|
MartinLogan Foundation F2 features a 1" Gen2 Obsidian Folded Motion Ribbon Tweeter , a 5.5" Midrange and 3 x 6.5" Aluminum Woofer with a Crossover frequency at 330 Hz - 3600 Hz. On the other hand, the Prime Tower features a 1" aluminum dome Tweeter , a 4.5" Midrange and 2 x 6.5" Polypropylene Woofer with a Crossover frequency at 350Hz and 2100Hz.
Frequency Response
MartinLogan Foundation F2 has a frequency range of 36-23k Hz whereas Prime Tower has a frequency range of 30-25k Hz. With a minimum frequency of 30Hz, the Prime Tower can go significantly deeper on the low side and provide stronger bass compared to the MartinLogan Foundation F2's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
MartinLogan Foundation F2
High Frequency
Floor-standing Speakers
MartinLogan Foundation F2
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
MartinLogan Foundation F2 is a 4 ohms speaker compared to the Prime Tower which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the MartinLogan Foundation F2 can provide this impedance level.
These two speakers also have different sensitivity levels. MartinLogan Foundation F2 sensitivity is rated at 92 dB and the Prime Tower's is rated at 87 dB. This 5 dB difference makes the MartinLogan Foundation F2 a more sensitive speaker compared to SVS Prime Tower, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
MartinLogan Foundation F2
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
MartinLogan Foundation F2 can handle a max power of 250 watts RMS from the amp the whereas MartinLogan Foundation F2 has a max power handling value of 200 watts RMS , 50 watts less than the Prime Tower.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
MartinLogan Foundation F2 features 5-Way post type posts and Prime Tower has a 5-Way post type posts. None of these speakers feature bi-amping/bi-wiring.
MartinLogan Foundation F2's Binding post terminals
SVS Prime Tower's 5-Way post terminals
Cabinet Type and Port Position
Both MartinLogan Foundation F2 and Prime Tower have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

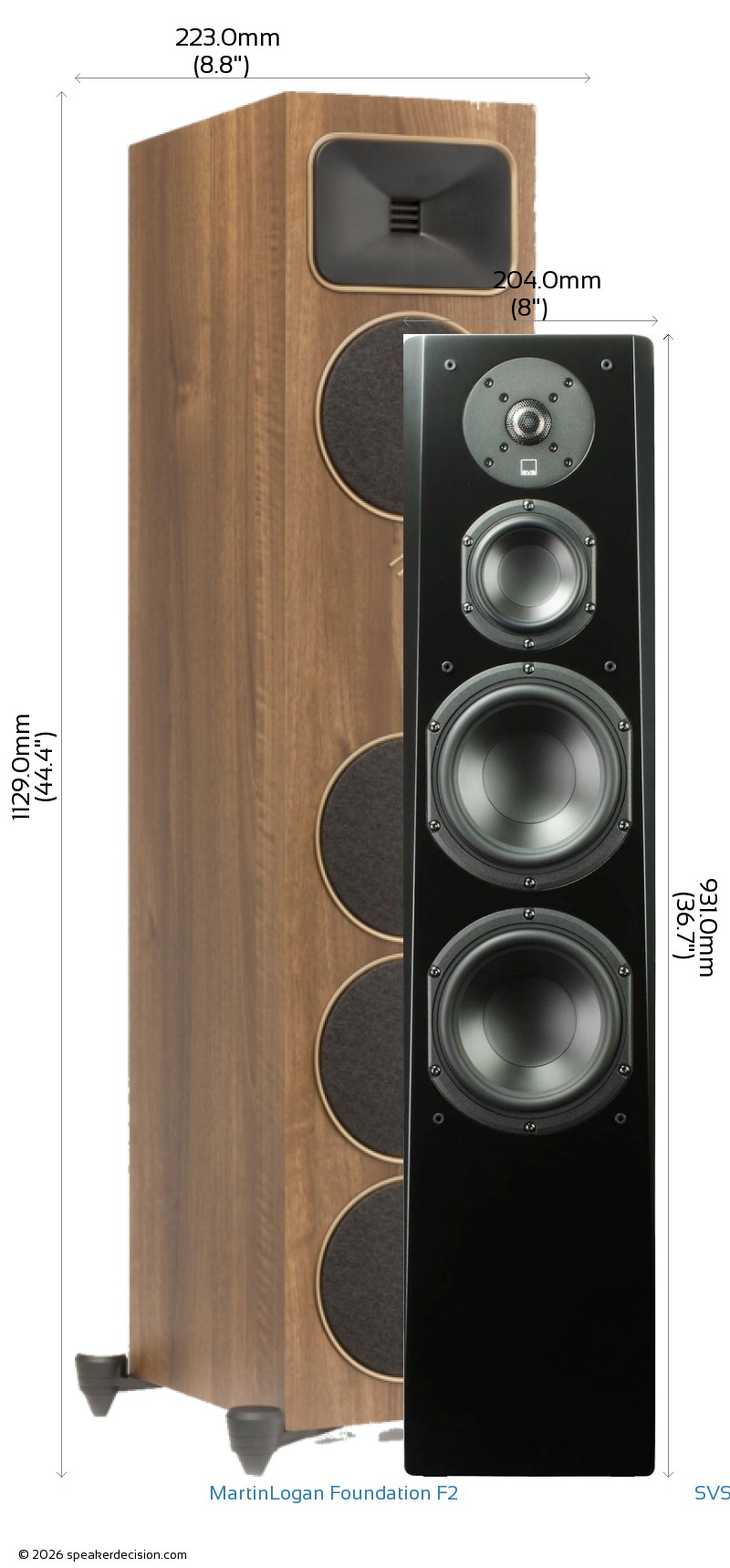

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Foundation F2's and SVS Prime Tower's external dimensions. MartinLogan Foundation F2 has external dimensions of 1129.0 x 223.0 x 407.0mm ( 44-7/16inch x 8-3/4inch x 16inch ) whereas SVS Prime Tower has external dimensions of 931.0 x 204.0 x 297.0mm ( 36-5/8 x 8 x 11-11/16inch) .
MartinLogan Foundation F2 is clearly the larger of the two speakers. Its body is 19mm wider, 198mm taller and 110mm deeper than SVS Prime Tower.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan Foundation F2 is approximately 907.6cm2 / 140.7inch2 and base area of the SVS Prime Tower is approximately 605.9cm2 / 93.9inch2. The MartinLogan Foundation F2 requires 50% more surface area than the Prime Tower which gives it a small disadvantage on placement in tight spaces.
