In this review, we will be comparing R-51M and Reva 2, two Passive Bookshelf speakers from Klipsch and Wharfedale.
Let's have a brief look at the main features
of Klipsch R-51M and Wharfedale Reva 2 first before getting into our more
detailed comparison.
| Key Specs | Klipsch R-51M | Wharfedale Reva 2 |
|---|
| Brand | Klipsch
United States · founded 1946 | Wharfedale
United Kingdom · founded 1932 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Tractrix Horn | 1" Dome |
|---|
| Woofer | 5.25" Copper-spun IMG | 5" Woven Glass Fiber |
|---|
| Frequency response | 62-21k Hz | 48-20k Hz |
|---|
| Sensitivity | 93 dB | 86 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | Up to 85 watts | 20-80 watts |
|---|
| Weight | 5.00kg / 11lbs | 7.82kg / 17.2lbs |
|---|
| Dimensions (H x W x D) | 13.3" x 7.0" x 8.4"
338.0 x 178.0 x 215.0mm | 14-1/16" x 7-7/8" x 12-13/16"
358.0 x 201.0 x 326.0mm |
|---|
What size room are the Klipsch R-51M and Wharfedale Reva 2 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch R-51M |
Wharfedale Reva 2 |
| Near-field |
Average |
Average |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
Bad |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both R-51M and Reva 2 are 2-way speakers.
Klipsch R-51MWharfedale Reva 2
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Klipsch R-51M |
Wharfedale Reva 2 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.25-inch
|
1 x 5-inch
|
R-51M features a 1" Tractrix Horn Tweeter and 1 x 5.25" Copper-spun IMG Woofer with a Crossover frequency at 1660Hz. On the other hand, the Reva 2 features a 1" woven textile Dome Tweeter and 1 x 5" Woven Glass Fiber Woofer.
Frequency Response
R-51M has a frequency range of 62-21k Hz whereas Reva 2 has a frequency range of 48-20k Hz. With a minimum frequency of 48Hz, the Reva 2 can go significantly deeper on the low side and provide stronger bass compared to the R-51M's min frequency of 62Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R-51M and Reva 2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. R-51M sensitivity is rated at 93 dB and the Reva 2's is at 86 dB. This 7 dB difference makes the Klipsch R-51M a more sensitive speaker compared to Wharfedale Reva 2, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
R-51M can handle a max power of 85 watts RMS, whereas Reva 2 has a max power handling value of 80 watts RMS, 5 watts less than the R-51M.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Reva 2 features Post posts which make bi-amping or bi-wiring possible. R-51M has a Single Gold Plated Binding Posts - 5-way which doesn't feature bi-amping/bi-wiring.
Klipsch R-51M's Single Gold Plated Binding Posts - 5-way terminals
Wharfedale Reva 2's Post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
R-51M has a rear firing port whereas Reva 2 has a bottom firing ports. Wharfedale Reva 2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Klipsch R-51M with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-51M's and Wharfedale Reva 2's external dimensions. Klipsch R-51M has external dimensions of 338.0 x 178.0 x 215.0mm (13.3 x 7.0 x 8.4inch) whereas Wharfedale Reva 2 has external dimensions of 358.0 x 201.0 x 326.0mm (14-1/16 x 7-7/8 x 12-13/16inch).
Wharfedale Reva 2 is clearly the larger of the two speakers. Its body is 23mm wider, 20mm taller and 111mm deeper than Klipsch R-51M.

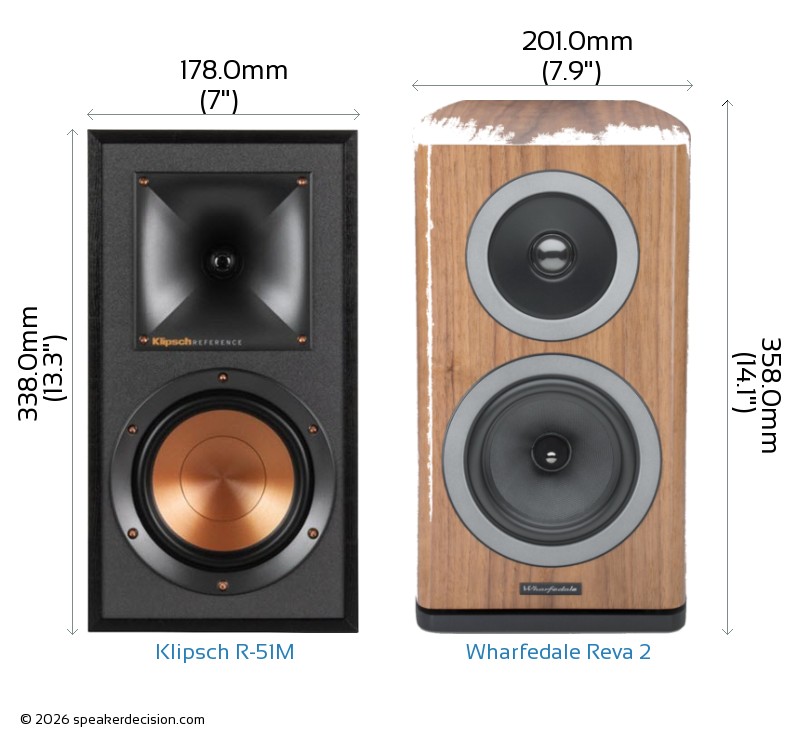

Below you can see the front view size comparison of Klipsch R-51M and Wharfedale Reva 2 in scale.
Comparison image of Klipsch R-51M and Wharfedale Reva 2 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-51M is approximately 382.7cm2 / 59.3inch2 and base area of the Wharfedale Reva 2 is approximately 655.3cm2 / 101.6inch2. The R-51M requires 42% less surface area than the Reva 2 which gives it a small advantage on placement in tight spaces.

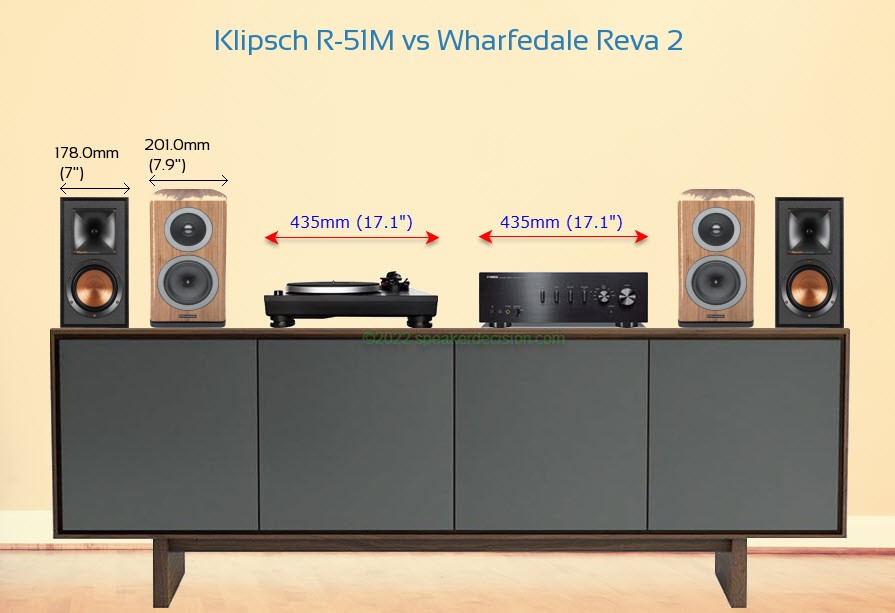

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Klipsch R-51M and Wharfedale Reva 2 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch R-51M weighs 5.00kg / 11lbs and the Wharfedale Reva 2 weighs 7.82kg / 17.2lbs. This makes the Reva 2 56% heavier than the R-51M.
Here is a comparison of how R-51M and Reva 2's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Klipsch R-51M?
Here are the items that are included inside the box of R-51M:
- 2 Bookshelf loudspeakers
- 2 Grilles (installed)
- 8 Self-adhesive rubber feet
- Quick Setup Guide
- Important Safety Instructions
- Warranty Information
What's in the Box of Wharfedale Reva 2?
Here are the items that come with the Reva 2:
- 2 Bookshelf loudspeakers
- 2 Grilles (pre-installed)
- 8 Self-adhesive rubber feet
- 4 Jumper bars (pre-installed)
- Pair of white gloves
- User-feets Manual
 Max Input Power |
85 watts
vs
80 watts
|
Handle more power from your amplifier |
 Sensitivity |
93 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
5.25 inches
vs
5 inches
|
Larger woofer |
 High Frequency Response |
21k Hz
vs
20k Hz
|
Generates higher frequency |
 Height |
338mm
vs
358mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
382cm2
vs
655cm2
|
Takes less floor space |
 Price per pair* |
359USD
vs
999USD
|
costs less (*prices may change depending on the seller, location and time) |
|
Low Frequency Response |
48 Hz
vs
62 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
| General |
Klipsch Reference R-51M |
Wharfedale Reva 2 |
| Brand |
Klipsch |
Wharfedale |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
Up to 85 watts |
20-80 watts |
| Sensitivity |
93 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
62-21k Hz |
48-20k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5.25" |
5" |
| Woofer Composition |
Copper-spun IMG |
Woven Glass Fiber |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix Horn |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
1660Hz |
n/a |
| Firing Direction |
rear |
bottom |
Physical Specs |
|
|
| Height |
338.0mm (13.3") |
358.0mm (14.1") |
| Width |
178.0mm (7") |
201.0mm (7.9") |
| Depth |
215.0mm (8.5") |
326.0mm (12.8") |
| Weight |
5.00kg (11lbs) |
7.82kg (17.2lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
Wood composite laminate |
| Available Colors |
Black |
Walnut, Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24-28" |
24" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Wharfedale Reva 2 costs roughly 2.8x what Klipsch R-51M does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | Wharfedale Reva 2 digs deeper - 48Hz against 62Hz. |
| Amplifier needs | A | Klipsch R-51M is more sensitive (93dB vs 86dB), so it goes louder on the same amplifier. |
| Headroom | evenly matched | Similar power handling (85W vs 80W). |
| Size | depends | Klipsch R-51M is easier to place; Wharfedale Reva 2 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Wharfedale Reva 2: bi-amping. Klipsch R-51M sits in a wider range (5 models), so a matched surround system is easier later. |
| Price | A | Klipsch R-51M is cheaper - $359 against $999, about 64% less; arguably a different class. |
A Klipsch R-51M B Wharfedale Reva 2
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 62Hz anyway, which makes the cheaper Klipsch R-51M much easier to justify. In a large or open-plan room, Wharfedale Reva 2 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Klipsch R-51M is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
