In this review, we will be comparing Reference 3 Meta and Elysian 4, two Passive Floor-standing speakers from KEF and Wharfedale.
Let's have a brief look at the main features
of KEF Reference 3 Meta and Wharfedale Elysian 4 first before getting into our more
detailed comparison.
| Key Specs | KEF Reference 3 Meta | Wharfedale Elysian 4 |
|---|
| Brand | KEF
United Kingdom · founded 1961 | Wharfedale
United Kingdom · founded 1932 |
|---|
| Design | 3-way | 3-way |
|---|
| Uni-Q driver | 12th Generation Uni-Q | — |
|---|
| Tweeter | 1" aluminium dome with MAT | 27x90mm" AMT (Ribbon) |
|---|
| Midrange | 5" | 6" |
|---|
| Woofer | 2 x 6.5" aluminium cone | 2 x 8.5" Coated Fiberglass |
|---|
| Frequency response | 43-35k Hz | 30-22k Hz |
|---|
| Sensitivity | 86 dB | 92 dB |
|---|
| Impedance | 4 ohms | 4 ohms |
|---|
| Power range | 50-300 watts | 15-250 watts |
|---|
| Weight | 51.30kg / 112.9lbs | 49.60kg / 109.1lbs |
|---|
| Dimensions (H x W x D) | 47.5" x 12.7" x 18.4"
1207 x 323 x 467 mm | 46-3/4" x 15-13/16" x 18-3/16"
1188.0 x 402.0 x 462.0mm |
|---|
What size room are the KEF Reference 3 Meta and Wharfedale Elysian 4 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
KEF Reference 3 Meta |
Wharfedale Elysian 4 |
| Near-field |
Are you nuts? |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Good |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Reference 3 Meta and Elysian 4 are 3-way speakers.
KEF Reference 3 MetaWharfedale Elysian 4
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
KEF Reference 3 Meta |
Wharfedale Elysian 4 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
27x90mm-inch
|
|
Midrange
|
1 x 5-inch |
1 x 6-inch |
|
Woofer
|
2 x 6.5-inch
|
2 x 8.5-inch
|
Reference 3 Meta features a 1" aluminium dome with MAT Tweeter, a 5" Midrange and 2 x 6.5" aluminium cone Woofer with a Crossover frequency at 450Hz and 2100Hz. On the other hand, the Elysian 4 features a 27x90mm" AMT (Ribbon) Tweeter, a 6" Midrange and 2 x 8.5" Coated Fiberglass Woofer with a Crossover frequency at 340Hz and 3100Hz.
Frequency Response
Reference 3 Meta has a frequency range of 43-35k Hz whereas Elysian 4 has a frequency range of 30-22k Hz. With a minimum frequency of 30Hz, the Elysian 4 can go significantly deeper on the low side and provide stronger bass compared to the Reference 3 Meta's min frequency of 43Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Reference 3 Meta and Elysian 4 have the same Impedance of 4 ohms but where they differ is the sensitivity levels. Reference 3 Meta sensitivity is rated at 86 dB and the Elysian 4's is at 92 dB. This 6 dB difference makes the Wharfedale Elysian 4 a more sensitive speaker compared to KEF Reference 3 Meta, hence will play louder with the same amount of watts.
One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the Reference 3 Meta and the Reference 3 Meta can provide this impedance level.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Reference 3 Meta can handle a max power of 300 watts RMS, whereas Elysian 4 has a max power handling value of 250 watts RMS, 50 watts less than the Reference 3 Meta.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Reference 3 Meta and Elysian 4 features dual binding post speaker terminals for bi-amping or bi-wiring.
KEF Reference 3 Meta's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Reference 3 Meta has a rear firing port whereas Elysian 4 has a bottom firing ports. Wharfedale Elysian 4's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to KEF Reference 3 Meta with its rear-firing port.
KEF Reference 3 Meta Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF Reference 3 Meta's and Wharfedale Elysian 4's external dimensions. KEF Reference 3 Meta has external dimensions of 1207 x 323 x 467 mm (47.5 x 12.7 x 18.4 in.) whereas Wharfedale Elysian 4 has external dimensions of 1188.0 x 402.0 x 462.0mm (46-3/4 x 15-13/16 x 18-3/16inch).
Wharfedale Elysian 4 is 19mm shorter and 5mm less deeper than KEF Reference 3 Meta but it is also 79mm wider.

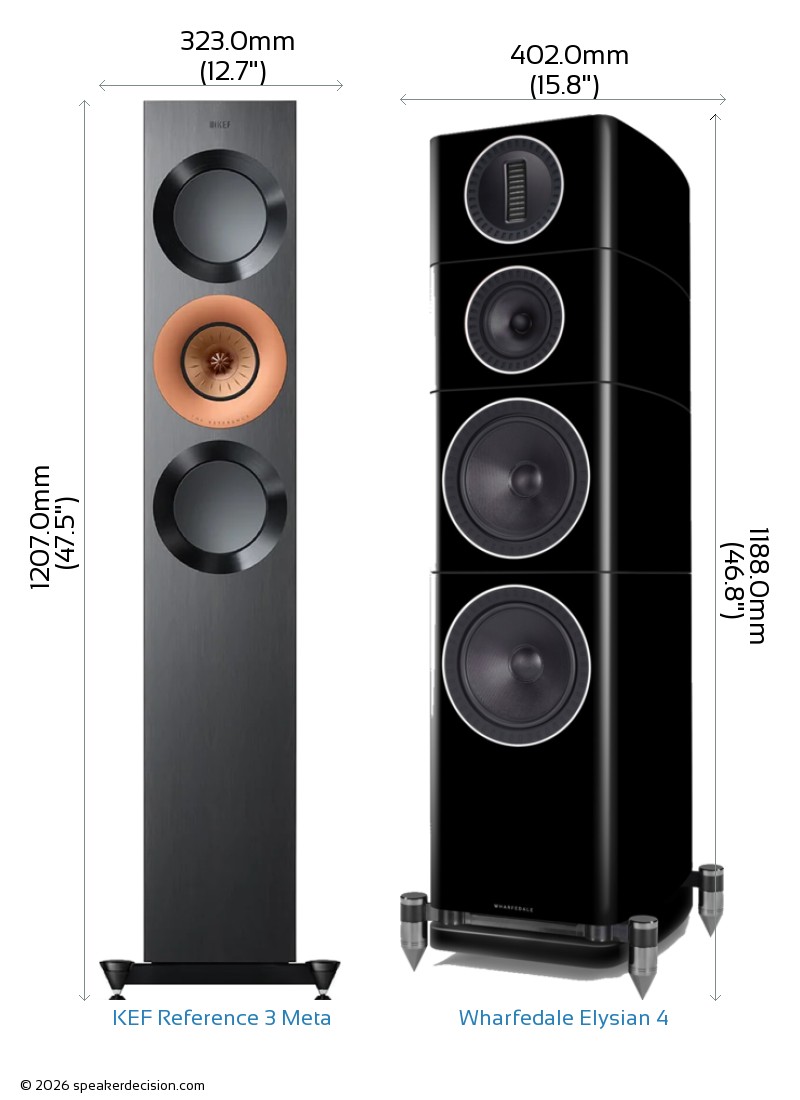

Below you can see the front view size comparison of KEF Reference 3 Meta and Wharfedale Elysian 4 in scale.
Comparison image of KEF Reference 3 Meta and Wharfedale Elysian 4 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF Reference 3 Meta is approximately 1508.4cm2 / 233.8inch2 and base area of the Wharfedale Elysian 4 is approximately 1857.2cm2 / 287.9inch2. The Reference 3 Meta requires 19% less surface area than the Elysian 4 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KEF Reference 3 Meta weighs 51.30kg / 112.9lbs and the Wharfedale Elysian 4 weighs 49.60kg / 109.1lbs. This makes the Reference 3 Meta 3% heavier than the Elysian 4.
Here is a comparison of how Reference 3 Meta and Elysian 4's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Wharfedale Elysian 4?
Here are the items that come with the Elysian 4:
- Floorstanding loudspeaker
- Grille
- 2 Terminal-jumpers (pre-installed)
- 4 Spike feet
- User Manual
 Max Input Power |
300 watts
vs
250 watts
|
Handle more power from your amplifier |
 High Frequency Response |
35k Hz
vs
22k Hz
|
Generates higher frequency |
 Base Surface Area |
1508cm2
vs
1857cm2
|
Takes less floor space |
 Sensitivity |
92 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
8.5 inches
vs
6.5 inches
|
Larger woofer |
|
Low Frequency Response |
30 Hz
vs
43 Hz
|
Generates deeper bass |
 Height |
1188mm
vs
1207mm
|
Easier to fit in smaller spaces |
 Price per pair* |
9996USD
vs
15000USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
KEF Reference 3 Meta |
Wharfedale Elysian 4 |
| Brand |
KEF |
Wharfedale |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
50-300 watts |
15-250 watts |
| Sensitivity |
86 dB |
92 dB |
| Impedance |
4 ohms |
4 ohms |
| Impedance |
3.2 ohms |
n/a |
| Frequency Response |
43-35k Hz |
30-22k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
8.5" |
| Woofer Composition |
aluminium cone |
Coated Fiberglass |
| Woofer Surround Material |
Rubber |
Foamed Rubber |
| Tweeter Size |
1" |
27x90mm" |
| Tweeter Type |
aluminium dome with MAT |
AMT (Ribbon) |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5" |
6" |
| Crossover Frequency |
450Hz and 2100Hz |
340Hz and 3100Hz |
| Firing Direction |
rear |
bottom |
Physical Specs |
|
|
| Height |
1207.0mm (47.5") |
1188.0mm (46.8") |
| Width |
323.0mm (12.7") |
402.0mm (15.8") |
| Depth |
467.0mm (18.4") |
462.0mm (18.2") |
| Weight |
51.30kg (112.9lbs) |
49.60kg (109.1lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
n/a |
MDF/Lacquer |
| Available Colors |
High-Gloss White/Blue, High-Gloss White/Champagne, High-Gloss Black/Grey, High-Gloss Black/Copper, Satin Walnut/Silver |
Piano Black, Piano Walnut,White |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 years |
5 Years |
| Labor Warranty |
5 years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | B | Wharfedale Elysian 4 digs deeper - 30Hz against 43Hz. |
| Amplifier needs | B | Wharfedale Elysian 4 is more sensitive (92dB vs 86dB), so it goes louder on the same amplifier. |
| Headroom | evenly matched | Similar power handling (300W vs 250W). |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | KEF Reference 3 Meta: bi-amping; Wharfedale Elysian 4: bi-amping. |
| Price | B | Wharfedale Elysian 4 is cheaper - $9,996 against $15,000, about 33% less. |
A KEF Reference 3 Meta B Wharfedale Elysian 4
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Wharfedale Elysian 4 is the easier recommendation: it leads on most of the measured areas and costs less. Take KEF Reference 3 Meta if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 43Hz anyway, so judge these on the other rows instead. Match it to your room: we rate KEF Reference 3 Meta the better fit for a very large room; elsewhere the two are rated the same.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
