In this review, we will be comparing two different types of speakers by ELAC. ELAC Debut 3.0 DC53 is a Center Channel speaker whereas the Debut 3.0 DF63 is a Floor-standing speaker.
Let's have a brief look at the main features
of ELAC Debut 3.0 DC53 and ELAC Debut 3.0 DF63 first before getting into our more
detailed comparison.
| Key Specs | ELAC Debut 3.0 DC53 | ELAC Debut 3.0 DF63 |
|---|
| Brand | ELAC
Germany · founded 1926 | ELAC
Germany · founded 1926 |
|---|
| Design | 2-way | 3-way |
|---|
| Tweeter | 1" Hard-Dome | 1" Hard-Dome |
|---|
| Midrange | — | 6.5" |
|---|
| Woofer | 2 x 5.25" Aramid fiber | 2 x 6.5" Aramid fiber |
|---|
| Frequency response | 57 to 38K Hz | 31 to 38K Hz |
|---|
| Sensitivity | 87.5 dB | 87.5 dB |
|---|
| Impedance | 4 ohms | 4 ohms |
|---|
| Power range | 30 - 120 watts | 30 - 180 watts |
|---|
| Weight | 8.73kg / 19.2lbs | 17.64kg / 38.8lbs |
|---|
| Dimensions (H x W x D) | 6-13/16" x 19-1/16" x 9-3/4"
174.0 x 485.0 x 248.0mm | 43-1/16" x 9-5/8" x 12-9/16"
1094.0 x 245.0 x 320.0mm |
|---|
Debut 3.0 DC53 and Debut 3.0 DF63 are members of ELAC's Debut 3.0 series of speakers. Below you can find the loudspeakers from this series.
ELAC Debut 3.0 Series
History
What size room are the ELAC Debut 3.0 DC53 and ELAC Debut 3.0 DF63 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
ELAC Debut 3.0 DC53 |
ELAC Debut 3.0 DF63 |
| Near-field |
Poor |
Bad |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Debut 3.0 DC53 is a 2-way design whereas the Debut 3.0 DF63 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
ELAC Debut 3.0 DC53ELAC Debut 3.0 DF63
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
ELAC Debut 3.0 DC53 |
ELAC Debut 3.0 DF63 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 6.5-inch |
|
Woofer
|
2 x 5.25-inch
|
2 x 6.5-inch
|
Debut 3.0 DC53 features a 1" Hard-Dome Tweeter and 2 x 5.25" Aramid fiber Woofer with a Crossover frequency at 1900Hz. On the other hand, the Debut 3.0 DF63 features a 1" Hard-Dome Tweeter, a 6.5" Midrange and 2 x 6.5" Aramid fiber Woofer with a Crossover frequency at 550Hz and 2000Hz.
Frequency Response
Debut 3.0 DC53 has a frequency range of 57 to 38K Hz whereas Debut 3.0 DF63 has a frequency range of 31 to 38K Hz. With a minimum frequency of 31Hz, the Debut 3.0 DF63 can go significantly deeper on the low side and provide stronger bass compared to the Debut 3.0 DC53's min frequency of 57Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Debut 3.0 DC53 and Debut 3.0 DF63 have the same Impedance of 4 ohms and their sensitivity is also same at 88 dB.
One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the Debut 3.0 DC53 and the Debut 3.0 DC53 can provide this impedance level.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Debut 3.0 DF63 can handle a max power of 180 watts RMS, whereas Debut 3.0 DC53 has a max power handling value of 120 watts RMS, 60 watts less than the Debut 3.0 DF63.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Debut 3.0 DC53 features 5-Way post type posts and Debut 3.0 DF63 has a 5-Way post type posts. None of these speakers feature bi-amping/bi-wiring.
ELAC Debut 3.0 DC53's 5-Way post terminals
ELAC Debut 3.0 DF63's 5-Way post terminals
ELAC Debut 3.0 DF63 Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare ELAC Debut 3.0 DC53's and ELAC Debut 3.0 DF63's external dimensions. ELAC Debut 3.0 DC53 has external dimensions of 174.0 x 485.0 x 248.0mm (6-13/16-inch x 19-1/16-inch x 9-3/4-inch) whereas ELAC Debut 3.0 DF63 has external dimensions of 1094.0 x 245.0 x 320.0mm (43-1/16-inch x 9-5/8-inch x 12-9/16-inch).
ELAC Debut 3.0 DC53 is 920mm shorter and 72mm less deeper than ELAC Debut 3.0 DF63 but it is also 240mm wider.

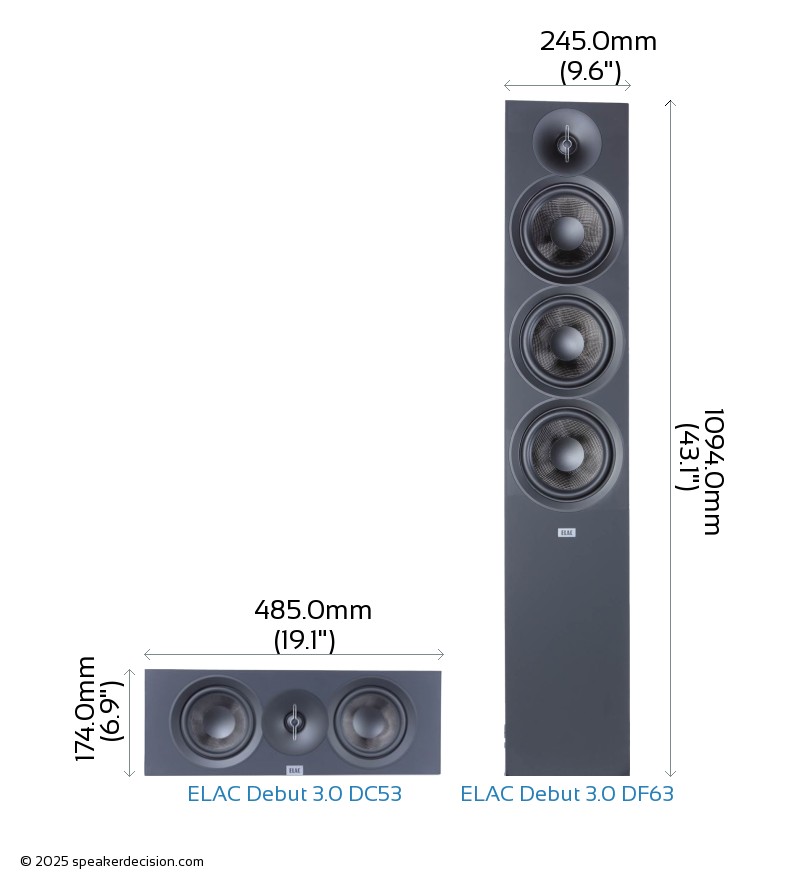

Below you can see the front view size comparison of ELAC Debut 3.0 DC53 and ELAC Debut 3.0 DF63 in scale.
Comparison image of ELAC Debut 3.0 DC53 and ELAC Debut 3.0 DF63 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the ELAC Debut 3.0 DC53 is approximately 1202.8cm2 / 186.4inch2 and base area of the ELAC Debut 3.0 DF63 is approximately 784.0cm2 / 121.5inch2. The Debut 3.0 DC53 requires 53% more surface area than the Debut 3.0 DF63 which gives it a small disadvantage on placement in tight spaces.
