In this review, we will be comparing SB-2000 and Windsor 10, two Powered Subwoofer speakers from SVS and KLH. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of SVS SB-2000 and KLH Windsor 10 first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both SVS SB-2000and KLH Windsor 10 have a single woofer setup however the SVS SB-2000's woofer is 12-inch whereas the KLH Windsor 10 features a 10-inch woofer.
Frequency Response
SB-2000 has a frequency range of 19-220 Hz whereas Windsor 10 has a frequency range of 32-150 Hz. With a minimum frequency of 19Hz, the SB-2000 can go significantly deeper on the low side and provide stronger bass compared to the Windsor 10's min frequency of 32Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The SVS SB-2000 has a Acoustic Suspension type cabinet. Acoustic Suspension aka Sealed type subwoofers have enclosures that are sealed hence no ports or holes exists on the cabinet. Sealed designs helps to provide more accurate and tight bass responses compared to ported designs. On the other hand the KLH Windsor 10 have Bass Reflex type enclosure. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare SVS SB-2000's and KLH Windsor 10's external dimensions. SVS SB-2000 has external dimensions of 372.0 x 362.0 x 478.0mm (14-5/8 x 14-1/4 x 18-13/16inch) whereas KLH Windsor 10 has external dimensions of 397.0 x 337.0 x 450.0mm (15-5/8 x 13-1/4 x 17-11/16inch).
KLH Windsor 10 is 25mm narrower and 28mm less deeper than SVS SB-2000 but it is also 25mm taller.

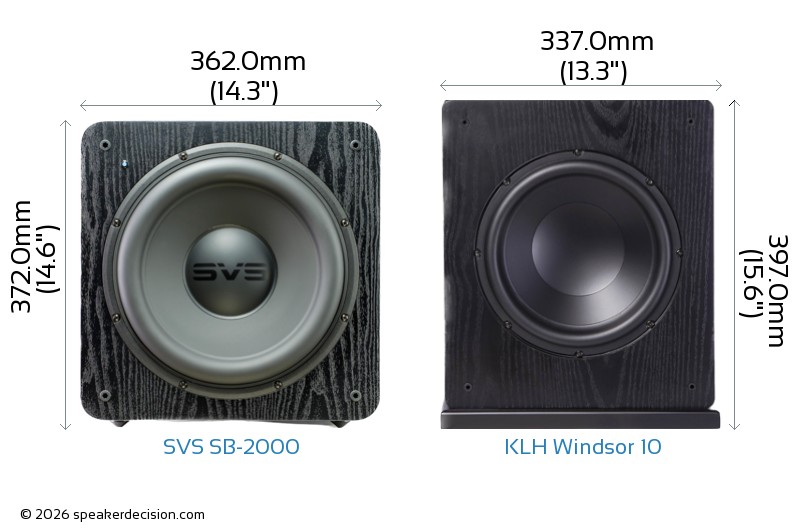

Below you can see the front view size comparison of SVS SB-2000 and KLH Windsor 10 in scale.
Comparison image of SVS SB-2000 and KLH Windsor 10 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the SVS SB-2000 is approximately 1730.4cm2 / 268.2inch2 and base area of the KLH Windsor 10 is approximately 1516.5cm2 / 235.1inch2. The SB-2000 requires 14% more surface area than the Windsor 10 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The SVS SB-2000 weighs 15.82kg / 34.8lbs and the KLH Windsor 10 weighs 14.78kg / 32.5lbs. This makes the SB-2000 7% heavier than the Windsor 10.
Here is a comparison of how SB-2000 and Windsor 10's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of SVS SB-2000?
Here are the items that are included inside the box of SB-2000:
- Powered subwoofer
- Grille
- 8-feet AC power cord
- Owners Manual
- Quick Start Guide
What's in the Box of KLH Windsor 10?
Here are the items that come with the Windsor 10:
- Powered subwoofer
- Grille
- 9-feet AC power cord
- Manual
 Woofer Size |
12 inches
vs
10 inches
|
Larger woofer |
| Low Frequency Response |
19 Hz
vs
32 Hz
|
Generates deeper bass |
 High Frequency Response |
220 Hz
vs
150 Hz
|
Generates higher frequency |
 Height |
372mm
vs
397mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1516cm2
vs
1730cm2
|
Takes less floor space |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
SVS SB-2000 needs about 14% more floor area. SVS SB-2000 stands 28mm further into the room. KLH Windsor 10 is 25mm taller.
| General |
SVS SB-2000 |
KLH Windsor 10 |
| Brand |
SVS |
KLH |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
500 watts |
150 watts |
| Frequency Response |
19-220 Hz |
32-150 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
500-watt RMS |
150-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
10" |
| Woofer Composition |
Aluminum |
Composite |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
50-160 Hz and 80 Hz |
n/a |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
372.0mm (14.6") |
397.0mm (15.6") |
| Width |
362.0mm (14.3") |
337.0mm (13.3") |
| Depth |
478.0mm (18.8") |
450.0mm (17.7") |
| Weight |
15.82kg (34.8lbs) |
14.78kg (32.5lbs) |
| Enclosure |
Acoustic Suspension |
Bass Reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
5 Years |
2 Years |
| Labor Warranty |
5 Years |
2 Years |
A sealed subwoofer against a ported one. That is the most consequential line on this page: it decides how the bass rolls off, how it behaves in a small room, and how much output you get for the size of the box.
| Area | Better | Why |
|---|
| Bass depth | A | SVS SB-2000 goes deeper - 19Hz against 32Hz. Under 20Hz is felt more than heard - the bottom of a pipe organ and the bottom of a film mix. |
| Amplifier power | A | SVS SB-2000 has the bigger amplifier - 500W against 150W RMS, about 5.2dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | A | SVS SB-2000 moves more air: 12" against 10" is 1.44x the cone area, not the 1.2x the diameters suggest. More area means the same output with less excursion, and less distortion with it. |
| Enclosure | depends | SVS SB-2000 is sealed - a sealed box rolls off gently and is usually the easier one to integrate in a small or awkward room; KLH Windsor 10 is ported - a ported box gives more output low down for its size, at the cost of a steeper roll-off below tuning. Neither is better in the abstract; ported tends to suit films and sealed tends to suit music, and both generalisations have exceptions. |
| Warranty | A | SVS SB-2000 carries 5 years on parts against 2 years. A subwoofer amplifier works harder than anything else in the system, so this is not a throwaway line. |
| Price | evenly matched | Priced within a few per cent of each other. |
A SVS SB-2000 B KLH Windsor 10
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
SVS SB-2000 has the edge on paper, though not by much. The "depends" rows are more likely to decide this than the score is. Films or music? If this is mainly a home cinema, KLH Windsor 10 will hit harder for the money; if it is mainly for music in a normal-sized room, SVS SB-2000 is usually the easier one to make sound right.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
