In this review, we will be comparing R11 Meta and Motion XT F200, two Passive Floor-standing speakers from KEF and MartinLogan.
Let's have a brief look at the main features
of KEF R11 Meta and MartinLogan Motion XT F200 first before getting into our more
detailed comparison.
| Key Specs | KEF R11 Meta | MartinLogan Motion XT F200 |
|---|
| Brand | KEF
United Kingdom · founded 1961 | MartinLogan
United States · founded 1982 |
|---|
| Design | 3-way | 3-way |
|---|
| Uni-Q driver | 12th Generation Uni-Q | — |
|---|
| Tweeter | 1" Vented dome | 1.25 x 2.4" Folded Motion XT |
|---|
| Midrange | 5" | 6.5" |
|---|
| Woofer | 4 x 6.5" Hybrid Aluminum | 3 x 8" Aluminum |
|---|
| Frequency response | 46-28k Hz | 27-25k Hz |
|---|
| Sensitivity | 90 dB | 92 dB |
|---|
| Impedance | 4 ohms | 4 ohms |
|---|
| Power range | 15-300 watts | 20-600 watts |
|---|
| Weight | 36.59kg / 80.5lbs | 39.00kg / 85.8lbs |
|---|
| Dimensions (H x W x D) | 51" x 12-1/4" x 15-1/8"
1296.0 x 312.0 x 385.0mm | 50-3/4" x 13-3/4" x 16-1/2"
1289 x 349 x 419mm |
|---|
What size room are the KEF R11 Meta and MartinLogan Motion XT F200 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
KEF R11 Meta |
MartinLogan Motion XT F200 |
| Near-field |
Are you nuts? |
Are you nuts? |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Good |
Good |
| Very Large Room |
Good |
Good |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both R11 Meta and Motion XT F200 are 3-way speakers.
KEF R11 MetaMartinLogan Motion XT F200
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
KEF R11 Meta |
MartinLogan Motion XT F200 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1.25 x 2.4-inch
|
|
Midrange
|
1 x 5-inch |
1 x 6.5-inch |
|
Woofer
|
4 x 6.5-inch
|
3 x 8-inch
|
R11 Meta features a 1" Aluminum with MAT absorber Vented dome Tweeter, a 5" Midrange and 4 x 6.5" Hybrid Aluminum Woofer with a Crossover frequency at 330Hz and 2500Hz. On the other hand, the Motion XT F200 features a 1.25 x 2.4" Folded Motion XT Tweeter, a 6.5" Midrange and 3 x 8" Aluminum Woofer with a Crossover frequency at 300Hz and 2600Hz.
Frequency Response
R11 Meta has a frequency range of 46-28k Hz whereas Motion XT F200 has a frequency range of 27-25k Hz. With a minimum frequency of 27Hz, the Motion XT F200 can go significantly deeper on the low side and provide stronger bass compared to the R11 Meta's min frequency of 46Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R11 Meta and Motion XT F200 have the same Impedance of 4 ohms but where they differ is the sensitivity levels. R11 Meta sensitivity is rated at 90 dB and the Motion XT F200's is at 92 dB. This 2 dB difference makes the MartinLogan Motion XT F200 a more sensitive speaker compared to KEF R11 Meta, hence will play louder with the same amount of watts.
One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the R11 Meta and the R11 Meta can provide this impedance level.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Motion XT F200 can handle a max power of 600 watts RMS, whereas R11 Meta has a max power handling value of 300 watts RMS, 300 watts less than the Motion XT F200.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
MartinLogan Motion XT F200
Input Type and Bi-Amping / Bi-Wiring
Both R11 Meta and Motion XT F200 features dual binding post speaker terminals for bi-amping or bi-wiring.
KEF R11 Meta's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
MartinLogan Motion XT F200's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
R11 Meta has a rear firing port whereas Motion XT F200 has a bottom firing ports. MartinLogan Motion XT F200's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to KEF R11 Meta with its rear-firing port.
KEF R11 Meta Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF R11 Meta's and MartinLogan Motion XT F200's external dimensions. KEF R11 Meta has external dimensions of 1296.0 x 312.0 x 385.0mm (51-inch x 12-1/4-inch x 15-1/8-inch) whereas MartinLogan Motion XT F200 has external dimensions of 1289 x 349 x 419mm (50-3/4inch x 13-3/4inch x 16-1/2inch).
KEF R11 Meta is 37mm narrower and 34mm less deeper than MartinLogan Motion XT F200 but it is also 7mm taller.

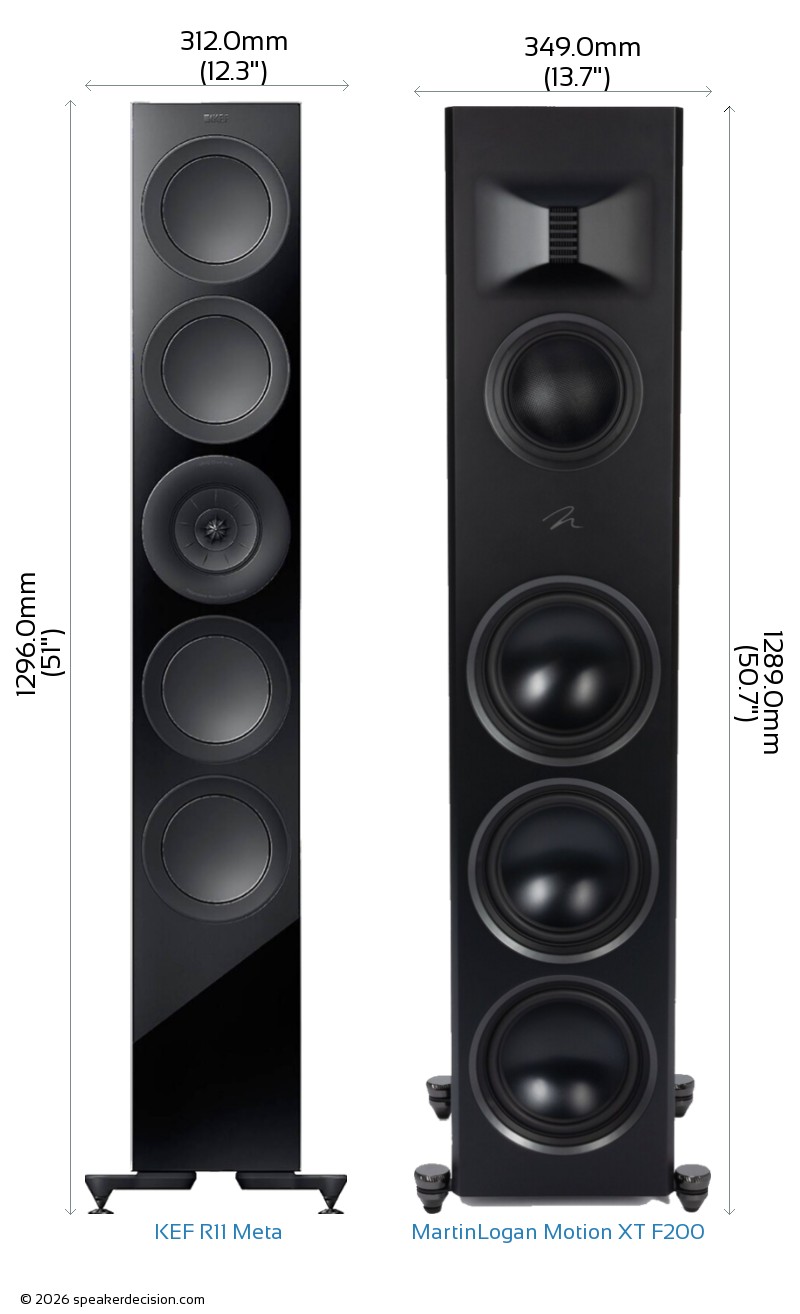

Below you can see the front view size comparison of KEF R11 Meta and MartinLogan Motion XT F200 in scale.
Comparison image of KEF R11 Meta and MartinLogan Motion XT F200 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF R11 Meta is approximately 1201.2cm2 / 186.2inch2 and base area of the MartinLogan Motion XT F200 is approximately 1462.3cm2 / 226.7inch2. The R11 Meta requires 18% less surface area than the Motion XT F200 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KEF R11 Meta weighs 36.59kg / 80.5lbs and the MartinLogan Motion XT F200 weighs 39.00kg / 85.8lbs. This makes the Motion XT F200 7% heavier than the R11 Meta.
Here is a comparison of how R11 Meta and Motion XT F200's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
MartinLogan Motion XT F200
What's in the Box of KEF R11 Meta?
Here are the items that are included inside the box of R11 Meta:
- R11 Meta
- Microfiber grille
- Plinth and spike accessories
- Port bungs
- User manual and warranty information
 Number of Woofers |
4
vs
3
|
More woofers |
 High Frequency Response |
28k Hz
vs
25k Hz
|
Generates higher frequency |
 Base Surface Area |
1201cm2
vs
1462cm2
|
Takes less floor space |
 Max Input Power |
600 watts
vs
300 watts
|
Handle more power from your amplifier |
 Sensitivity |
92 dB
vs
90 dB
|
Play louder with same amount of amplification power |
|
Woofer Size |
8 inches
vs
6.5 inches
|
Larger woofer |
|
Low Frequency Response |
27 Hz
vs
46 Hz
|
Generates deeper bass |
 Height |
1289mm
vs
1296mm
|
Easier to fit in smaller spaces |
 Price per pair* |
5498USD
vs
6498USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
KEF R11 Meta |
MartinLogan Motion® XT F200 |
| Brand |
KEF |
MartinLogan |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
15-300 watts |
20-600 watts |
| Sensitivity |
90 dB |
92 dB |
| Impedance |
4 ohms |
4 ohms |
| Impedance |
3.2 ohms |
n/a |
| Frequency Response |
46-28k Hz |
27-25k Hz |
Drivers |
|
|
| Woofer Quantity |
4 |
3 |
| Woofer Size |
6.5" |
8" |
| Woofer Composition |
Hybrid Aluminum |
Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1.25 x 2.4" |
| Tweeter Type |
Vented dome |
Folded Motion XT |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5" |
6.5" |
| Crossover Frequency |
330Hz and 2500Hz |
300Hz and 2600Hz |
| Firing Direction |
rear |
bottom |
| Suggested Break-in Period |
n/a |
Allow 72 hours of break-in |
Physical Specs |
|
|
| Height |
1296.0mm (51") |
1289.0mm (50.7") |
| Width |
312.0mm (12.3") |
349.0mm (13.7") |
| Depth |
385.0mm (15.2") |
419.0mm (16.5") |
| Weight |
36.59kg (80.5lbs) |
39.00kg (85.8lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
n/a |
MDF/Wood veneer |
| Available Colors |
Black Gloss, White Gloss, Walnut |
Gloss Black, Walnut, and Satin White |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 years |
5 Years |
| Labor Warranty |
5 years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | B | MartinLogan Motion XT F200 digs deeper - 27Hz against 46Hz. |
| Amplifier needs | B | MartinLogan Motion XT F200 is more sensitive (92dB vs 90dB), so it goes louder on the same amplifier. |
| Headroom | B | MartinLogan Motion XT F200 takes more power (600W vs 300W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | KEF R11 Meta: bi-amping; MartinLogan Motion XT F200: bi-amping. |
| Price | B | MartinLogan Motion XT F200 is cheaper - $5,498 against $6,498, about 15% less. |
A KEF R11 Meta B MartinLogan Motion XT F200
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
MartinLogan Motion XT F200 is the easier recommendation: it leads on most of the measured areas and costs less. Take KEF R11 Meta if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 46Hz anyway, so judge these on the other rows instead. If your amplifier is modest, vintage or valve-based, MartinLogan Motion XT F200 is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
