In this review, we will be comparing RP-504C II and RC-64 III, two Passive Center Channel speakers by Klipsch
Let's have a brief look at the main features
of Klipsch RP-504C II and Klipsch RC-64 III first before getting into our more
detailed comparison.
Klipsch RP-504C II Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 4 x 5.25" Cerametallic cone Woofer
- 50-25k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 150watts
- Weight:16.50kg
- Dimensions (H x W x D): 177.0" x 32-3/16" x 15-1/8"( 177.0 x 818.0 x 385.0mm )
Klipsch RC-64 III Key Specs
- 2-way Design
- 1-3/4" Tractrix horn Tweeter
- 4 x 6.5" Cerametallic cone Woofer
- 57-24k Hz Frequency Response
- 99 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 200watts
- Weight:25.00kg
- Dimensions (H x W x D): 204.0" x 35-3/4" x 15-1/4"( 204.0 x 909.0 x 388.0mm )
What size room are the Klipsch RP-504C II and Klipsch RC-64 III speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-504C II |
Klipsch RC-64 III |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-504C II and Klipsch RC-64 III compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both RP-504C II and RC-64 III are 2-way speakers.
| Driver |
Klipsch RP-504C II |
Klipsch RC-64 III |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-3/4-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
4 x 5.25-inch
|
4 x 6.5-inch
|
RP-504C II features a 1" titanium Tractrix Horn Tweeter and 4 x 5.25" Cerametallic cone Woofer with a Crossover frequency at 1950 Hz. On the other hand, the RC-64 III features a 1-3/4" titanium Tractrix horn Tweeter and 4 x 6.5" Cerametallic cone Woofer .
Frequency Response
RP-504C II has a frequency range of 50-25k Hz whereas RC-64 III has a frequency range of 57-24k Hz. With a minimum frequency of 50Hz, the RP-504C II can go significantly deeper on the low side and provide stronger bass compared to the RC-64 III's min frequency of 57Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-504C II and RC-64 III have the same Impedance of 8 ohms but where they differ is the sensitivity levels. RP-504C II sensitivity is rated at 96 dB and the RC-64 III's is at 99 dB. This 3 dB difference makes the Klipsch RC-64 III a more sensitive speaker compared to Klipsch RP-504C II, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
RP-504C II can handle a max power of 200 watts RMS from the amp the whereas RP-504C II has a max power handling value of 150 watts RMS , 50 watts less than the RC-64 III.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RC-64 III features Binding post posts which make bi-amping or bi-wiring possible. RP-504C II has a Binding post which doesn't feature bi-amping/bi-wiring.
Klipsch RP-504C II's Binding post terminals
Klipsch RC-64 III's Binding post terminals allows Bi-amping or bi-wiring

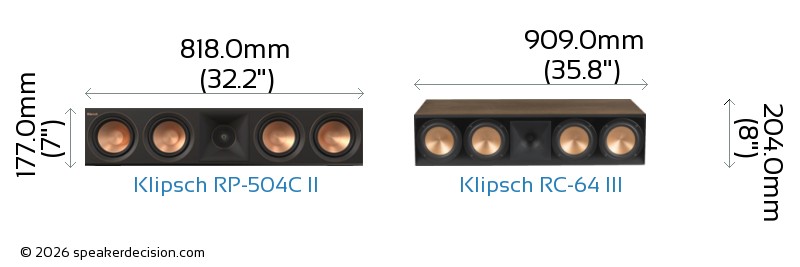

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-504C II's and Klipsch RC-64 III's external dimensions. Klipsch RP-504C II has external dimensions of 177.0 x 818.0 x 385.0mm ( 6-15/16 x 32-3/16 x 15-1/8inch) whereas Klipsch RC-64 III has external dimensions of 204.0 x 909.0 x 388.0mm ( 8 x 35-3/4 x 15-1/4inch) .
Klipsch RC-64 III is clearly the larger of the two speakers. Its body is 91mm wider, 27mm taller and 3mm deeper than Klipsch RP-504C II.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-504C II is approximately 3149.3cm2 / 488.1inch2 and base area of the Klipsch RC-64 III is approximately 3526.9cm2 / 546.7inch2. The RP-504C II requires 11% less surface area than the RC-64 III which gives it a small advantage on placement in tight spaces.
