In this review, we will be comparing RP-500C and RP-500C II, two Passive Center Channel speakers by Klipsch Let's have a brief look at the main features
of Klipsch RP-500C and Klipsch RP-500C II first before getting into our more
detailed comparison.
What size room are the Klipsch RP-500C and Klipsch RP-500C II speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-500C and Klipsch RP-500C II compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both RP-500C and RP-500C II are 2-way speakers.
| Driver |
Klipsch RP-500C |
Klipsch RP-500C II |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.25-inch
|
2 x 5.25-inch
|
RP-500C features a 1" titanium Tractrix horn Tweeter and 2 x 5.25" Cerametallic cone Woofer . On the other hand, the RP-500C II features a 1" titanium Tractrix Horn Tweeter and 2 x 5.25" Cerametallic cone Woofer with a Crossover frequency at 1630 Hz.
Frequency Response
RP-500C and RP-500C II has exactly the same frequency range of 60-25k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-500C and RP-500C II have the same Impedance of 8 ohms and their sensitivity is also same at 96 dB.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
RP-500C and RP-500C II has the same power range of up to 100 watts.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RP-500C features Binding post type posts and RP-500C II has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch RP-500C's Binding post terminals
Cabinet Type and Port Position
Both RP-500C and RP-500C II have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

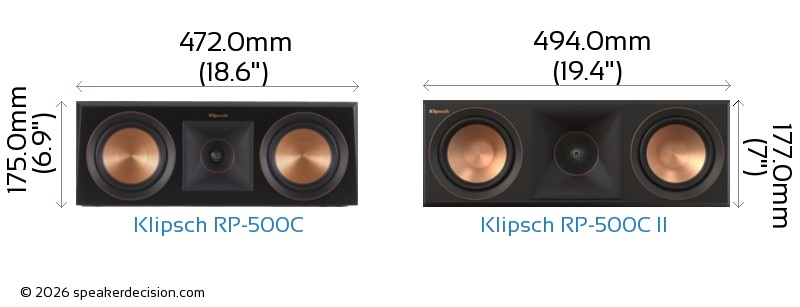

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-500C's and Klipsch RP-500C II's external dimensions. Klipsch RP-500C has external dimensions of 175.0 x 472.0 x 254.0mm ( 6-7/8 x 18-9/16 x 10inch) whereas Klipsch RP-500C II has external dimensions of 177.0 x 494.0 x 269.0mm ( 6-15/16 x 19-7/16 x 10-9/16inch) .
Klipsch RP-500C II is clearly the larger of the two speakers. Its body is 22mm wider, 2mm taller and 15mm deeper than Klipsch RP-500C.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-500C is approximately 1198.9cm2 / 185.8inch2 and base area of the Klipsch RP-500C II is approximately 1328.9cm2 / 206.0inch2. The RP-500C requires 10% less surface area than the RP-500C II which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch RP-500C weighs 8.18kg / 18lbs and the Klipsch RP-500C II weighs 8.20kg / 18lbs. This makes the RP-500C II 0% heavier than the RP-500C.
Here is a comparison of how RP-500C and RP-500C II's weights compare with the average, max and min weights in Passive Center Channel class.
Weight
All Center Channel Speakers
What's in the Box of Klipsch RP-500C?
Here are the items that are included inside the box of RP-500C:
Center channel loudspeakerGrille (installed)4 Self-adhesive rubber feetTilt rod (attached nut)User ManualImportant Safety InstructionsWarranty Information
What's in the Box of Klipsch RP-500C II?
Here are the items that come with the RP-500C II:
Center channel loudspeakerGrilleTilt rod (attached nut)User ManualImportant Safety InstructionsWarranty Information
 Height |
175mm
vs
177mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1198cm2 (472x254mm)
vs
1328cm2 (494x269mm)
|
Takes less floor space |
| General |
Klipsch Reference Premiere RP-500C |
Klipsch Reference Premiere RP-500C II |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Center channel speaker |
Center channel speaker |
| Power Range |
up to 100 watts |
up to 100 watts |
| Sensitivity |
96 dB |
96 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
60-25k Hz |
60-25k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
Cerametallic cone |
Cerametallic cone |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix horn |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1630 Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
175.0mm (6.9") |
177.0mm (7") |
| Width |
472.0mm (18.6") |
494.0mm (19.4") |
| Depth |
254.0mm (10") |
269.0mm (10.6") |
| Weight |
8.18kg (18lbs) |
8.20kg (18lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
MDF/Wood-grain vinyl |
| Available Colors |
Walnut, Black |
Walnut, Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
n/a |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
