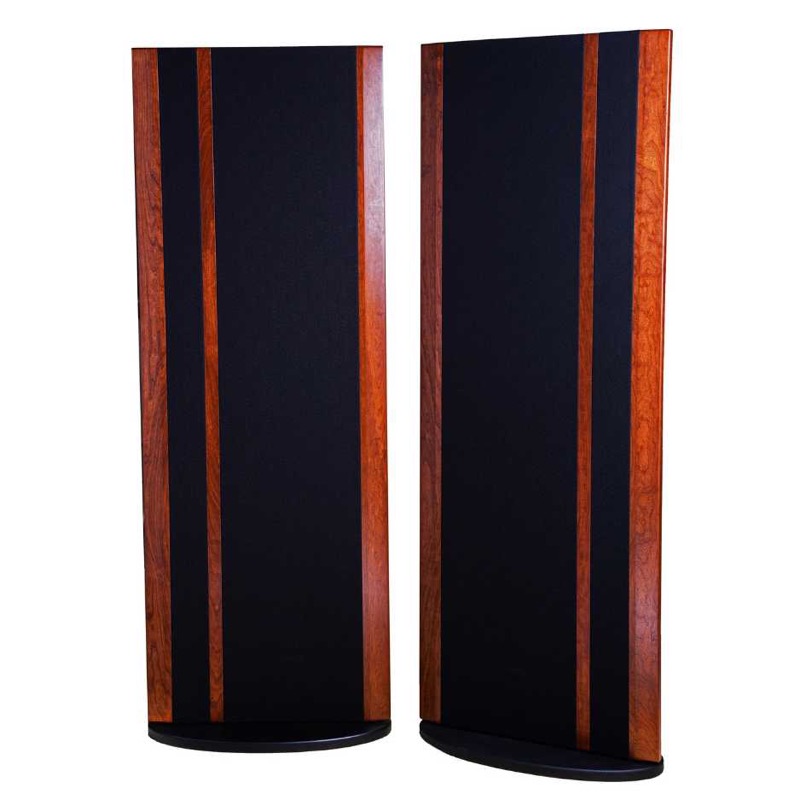

Magnepan 20.7x is a -way Passive Dipole Floor-standing speaker by Magnepan. It was released in 2012. It features a Tweeter and x " Woofer.
Planar-magnetic dipole panel. Magnepan publishes no crossover frequencies or driver sizes for its models, so those fields are left empty rather than estimated.
The speaker has a frequency range of 25-40k Hz and a sensitivity of 86 dB. Magnepan 20.7x has an MSRP of 30000$ per pair.
Room Size Suitability
The size of the room where you plan to use the Magnepan 20.7x is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Bad |
| Small Room | Poor |
| Mid-size Room | Average |
| Large Room | Good |
| Very Large Room | Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Frequency Response of the Magnepan 20.7x Speaker
Magnepan 20.7x has a Frequency response range of 25-40k Hz. With a minimum frequency of 25 Hz, 20.7x delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how 20.7x's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Floor-standing Speakers
Thinking about a subwoofer for the Magnepan 20.7x?
Among the speakers in our database with a max MSRP price of 30000$ (Pair), there is only one Passive Floor-standing speaker that have the deeper bass levels than the Magnepan 20.7x's 25Hz:
Impedance and Sensitivity
Magnepan 20.7x's nominal impedance level is
4 ohms and has a sensitivity of
86 dB.
Sensitivity
Floor-standing Speakers
Nominal Impedance of the 4 Ohms means that the Magnepan 20.7x is a difficult to drive speaker from nominal Impedance perspective, make sure that you choose an amplifier than can provide 4 Ohms for this speaker.
Many AVRs (audio/video receiver) in the market may have difficulty when the speakers dip below the 4 Ohms levels (this may cause clipping or even physical damage), so we recommend to not pair the Magnepan 20.7x with an AVR but use an Integrated Amplifier instead.
Sensitivity
With a sensitivity level of only 86 dB, Magnepan 20.7x is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the Magnepan 20.7x plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the Magnepan 20.7x need?
At normal listening levels in a medium room, about
38–600 W
per channel into 4 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? See every integrated amplifier we cover.
Input Type
20.7x features type connectors.
Magnepan 20.7x External Dimensions and Weight
Magnepan 20.7x has external dimensions of (Height x Width x Depth) 79 x 29 x 2.062inch (2006.6 x 736.6 x 52.4mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Magnepan 20.7x is approximately 386.0cm2 / 59.8inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
Cabinet type and Materials
Magnepan 20.7x has a
Dipole type cabinet.
