In this review, we will be comparing ESL 9 and Triton Two+, two Passive Floor-standing speakers from MartinLogan and GoldenEar. Let's have a brief look at the main features
of MartinLogan ESL 9 and GoldenEar Triton Two+ first before getting into our more
detailed comparison.
What size room are the MartinLogan ESL 9 and GoldenEar Triton Two+ speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the MartinLogan ESL 9 and GoldenEar Triton Two+ compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that ESL 9 is a 2-way design whereas the Triton Two+ is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
MartinLogan ESL 9 |
GoldenEar Triton Two+ |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
9.2 x 44-inch
|
-inch
|
|
Midrange
|
- |
1 x 4.5-inch |
|
Woofer
|
2 x 8-inch
|
1 x 5-inch
|
ESL 9 features a 9.2 x 44" curved electrostatic transducer Tweeter and 2 x 8" high-excursion paper cone Woofer . On the other hand, the Triton Two+ features a " High-Velocity Folded Ribbon Tweeter , a 4.5" Midrange and 1 x 5" Polymer Woofer .
Frequency Response
ESL 9 has a frequency range of 34-23k Hz whereas Triton Two+ has a frequency range of 16-35k Hz. With a minimum frequency of 16Hz, the Triton Two+ can go significantly deeper on the low side and provide stronger bass compared to the ESL 9's min frequency of 34Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
Impedance and Sensitivity
ESL 9 is a 4 ohms speaker compared to the Triton Two+ which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the ESL 9 can provide this impedance level.
These two speakers also have different sensitivity levels. ESL 9 sensitivity is rated at 90 dB and the Triton Two+'s is rated at 91 dB. This 1 dB difference makes the GoldenEar Triton Two+ a more sensitive speaker compared to MartinLogan ESL 9, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
ESL 9 can handle a max power of 500 watts RMS from the amp the whereas ESL 9 has a max power handling value of 400 watts RMS , 100 watts less than the Triton Two+.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
ESL 9 features Binding post posts which make bi-amping or bi-wiring possible. Triton Two+ has a 5-Way post which doesn't feature bi-amping/bi-wiring.
MartinLogan ESL 9's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs

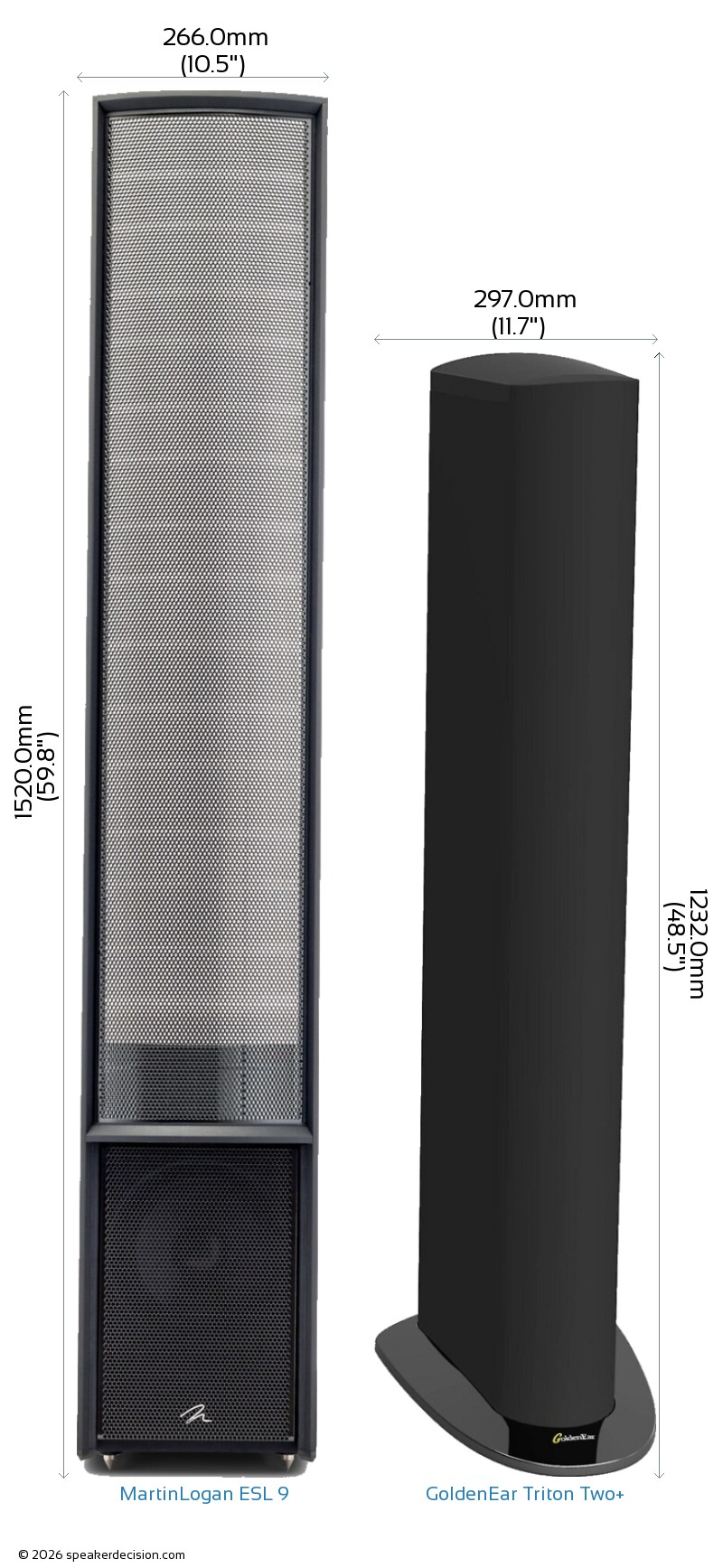

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan ESL 9's and GoldenEar Triton Two+'s external dimensions. MartinLogan ESL 9 has external dimensions of 1520.0 x 266.0 x 647.0mm ( 59-13/16 x 10-7/16 x 25-7/16inch) whereas GoldenEar Triton Two+ has external dimensions of 1232.0 x 297.0 x 486.0mm ( 48-1/2 x 11-11/16 x 19-1/8inch) .
GoldenEar Triton Two+ is 288mm shorter and 161mm less deeper than MartinLogan ESL 9 but it is also 31mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan ESL 9 is approximately 1721.0cm2 / 266.8inch2 and base area of the GoldenEar Triton Two+ is approximately 1443.4cm2 / 223.7inch2. The ESL 9 requires 19% more surface area than the Triton Two+ which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The MartinLogan ESL 9 weighs 35.45kg / 78lbs and the GoldenEar Triton Two+ weighs 27.27kg / 60lbs. This makes the ESL 9 30% heavier than the Triton Two+.
Here is a comparison of how ESL 9 and Triton Two+'s weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of MartinLogan ESL 9?
Here are the items that are included inside the box of ESL 9:
Floorstanding hybrid electrostatic loudspeakerAC power adapter (w/ attached 10-feet DC cord)Grille4 Spike FeetUsers ManualProduct Registration Card
What's in the Box of GoldenEar Triton Two+?
Here are the items that come with the Triton Two+:
Floorstanding loudspeaker9-feet AC power cordBase4 Rubber feet (pre-installed on base)4 Spikes4 Locking nuts4 Screws4 WashersOwners Manual
 Woofer Size |
8 inches
vs
5 inches
|
Larger woofer |
| Number of Woofers |
2
vs
1
|
More woofers |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Max Input Power |
500 watts
vs
400 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
91 dB
vs
90 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
| Low Frequency Response |
16 Hz
vs
34 Hz
|
Generates deeper bass |
 High Frequency Response |
35k Hz
vs
23k Hz
|
Generates higher frequency |
 Passive Radiator |
two 7-inch
vs
None
|
Increases the bass performance |
 Height |
1232mm
vs
1520mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1443cm2 (297x486mm)
vs
1721cm2 (266x647mm)
|
Takes less floor space |
 Price per pair* |
4498USD
vs
7000USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
MartinLogan Masterpiece Classic ESL 9 |
GoldenEar Triton Two+ |
| Brand |
MartinLogan |
GoldenEar |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
20-400 watts |
20-500 watts |
| Sensitivity |
90 dB |
91 dB |
| Impedance |
4 ohms |
8 ohms |
| Frequency Response |
34-23k Hz |
16-35k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
1 |
| Woofer Size |
8" |
5" |
| Woofer Composition |
high-excursion paper cone |
Polymer |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
9.2 x 44" |
- |
| Tweeter Type |
curved electrostatic transducer |
High-Velocity Folded Ribbon |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
4.5" |
Physical Specs |
|
|
| Height |
1520.0mm (59.8") |
1232.0mm (48.5") |
| Width |
266.0mm (10.5") |
297.0mm (11.7") |
| Depth |
647.0mm (25.5") |
486.0mm (19.1") |
| Weight |
35.45kg (78lbs) |
27.27kg (60lbs) |
| Enclosure |
Bass Reflex |
Passive Radiator |
| Finish |
Composite |
MDF/Lacquer |
| Available Colors |
Gloss Black |
Gloss Black |
| Grille |
Yes |
n/a |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years w/ Registration |
5 Years |
| Labor Warranty |
5 Years w/ Registration |
5 Years |
