In this review, we will be comparing BRX and R3, two Passive Bookshelf speakers from GoldenEar and KEF. Let's have a brief look at the main features
of GoldenEar BRX and KEF R3 first before getting into our more
detailed comparison.
What size room are the GoldenEar BRX and KEF R3 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the GoldenEar BRX and KEF R3 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that BRX is a 2-way design whereas the R3 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
GoldenEar BRX |
KEF R3 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5-inch |
|
Woofer
|
1 x 6-inch
|
1 x 6.5-inch
|
BRX features a " Folded Ribbon Tweeter and 1 x 6" Polypropylene Woofer . On the other hand, the R3 features a 1" aluminum Dome Tweeter , a 5" Midrange and 1 x 6.5" Hybrid aluminum Woofer with a Crossover frequency at 400Hz and 2900Hz.
Frequency Response
BRX has a frequency range of 40-35k Hz whereas R3 has a frequency range of 52-28k Hz. With a minimum frequency of 40Hz, the BRX can go significantly deeper on the low side and provide stronger bass compared to the R3's min frequency of 52Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
BRX and R3 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. BRX sensitivity is rated at 90 dB and the R3's is at 87 dB. This 3 dB difference makes the GoldenEar BRX a more sensitive speaker compared to KEF R3, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
BRX can handle a max power of 250 watts RMS from the amp the whereas R3 has a max power handling value of 180 watts RMS, 70 watts less than the BRX.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
R3 features Binding post posts which make bi-amping or bi-wiring possible. BRX has a 5-way post which doesn't feature bi-amping/bi-wiring.
GoldenEar BRX's 5-way post terminals
Cabinet Type and Port Position
Both BRX and R3 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
KEF R3 Port
Physical Specs

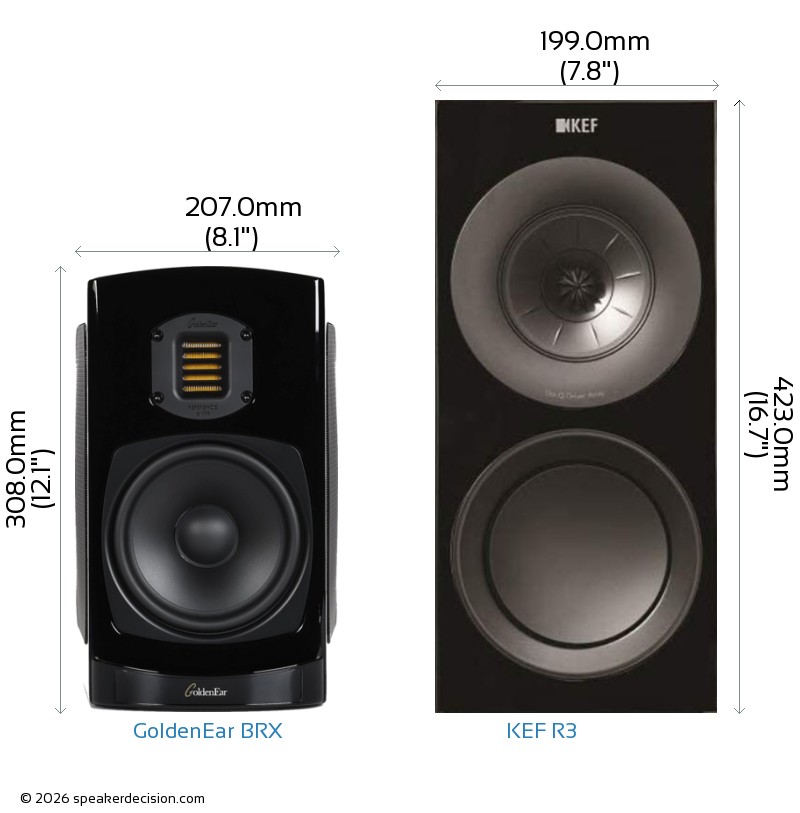

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare GoldenEar BRX's and KEF R3's external dimensions. GoldenEar BRX has external dimensions of 308.0 x 207.0 x 313.0mm ( 12-1/8 x 8-1/8 x 12-5/16inch) whereas KEF R3 has external dimensions of 423.0 x 199.0 x 337.0mm ( 16-5/8 x 7-13/16 x 13-1/4inch) .
GoldenEar BRX is 115mm shorter and 24mm less deeper than KEF R3 but it is also 8mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the GoldenEar BRX is approximately 647.9cm2 / 100.4inch2 and base area of the KEF R3 is approximately 670.6cm2 / 103.9inch2. The BRX requires 3% less surface area than the R3 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The GoldenEar BRX weighs 5.45kg / 12lbs and the KEF R3 weighs 13.55kg / 29.8lbs. This makes the R3 149% heavier than the BRX.
Here is a comparison of how BRX and R3's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of GoldenEar BRX?
Here are the items that are included inside the box of BRX:
Bookshelf loudspeaker
Grille
Owner's Manual
What's in the Box of KEF R3?
Here are the items that come with the R3:
2 Bookshelf loudspeakers2 Grilles2 Foam port plugs8 Self-adhesive rubber feetUser ManualWarranty Information
 Max Input Power |
250 watts
vs
180 watts
|
Handle more power from your amplifier |
 Sensitivity |
90 dB
vs
87 dB
|
Play louder with same amount of amplification power |
 Low Frequency Response |
40 Hz
vs
52 Hz
|
Generates deeper bass |
 High Frequency Response |
35k Hz
vs
28k Hz
|
Generates higher frequency |
 Passive Radiator |
two rectangular side-mounted
vs
None
|
Increases the bass performance |
 Height |
308mm
vs
423mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
647cm2 (207x313mm)
vs
670cm2 (199x337mm)
|
Takes less floor space |
 Price per pair* |
1598USD
vs
2200USD
|
costs less (*prices may change depending on the seller, location and time) |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
| Woofer Size |
6.5 inches
vs
6 inches
|
Larger woofer |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
| General |
GoldenEar BRX |
KEF R3 |
| Brand |
GoldenEar |
KEF |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
20-250 watts |
15-180 watts |
| Sensitivity |
90 dB |
87 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
n/a |
3.2 ohms |
| Frequency Response |
40-35k Hz |
52-28k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6" |
6.5" |
| Woofer Composition |
Polypropylene |
Hybrid aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
- |
1" |
| Tweeter Type |
Folded Ribbon |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
5" |
| Crossover Frequency |
n/a |
400Hz and 2900Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
308.0mm (12.1") |
423.0mm (16.7") |
| Width |
207.0mm (8.1") |
199.0mm (7.8") |
| Depth |
313.0mm (12.3") |
337.0mm (13.3") |
| Weight |
5.45kg (12lbs) |
13.55kg (29.8lbs) |
| Enclosure |
Passive Radiator |
Bass Reflex |
| Finish |
MDF/Lacquer |
MDF/Lacquer |
| Available Colors |
Gloss Black |
Black Gloss, White Gloss, Walnut |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24-26" |
n/a |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
