In this review, we will be comparing RP-8000F II and F35, two Passive Floor-standing speakers from Klipsch and Revel.
Let's have a brief look at the main features
of Klipsch RP-8000F II and Revel Concerta2 F35 first before getting into our more
detailed comparison.
Klipsch RP-8000F II Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 2 x 8" Cerametallic cone Woofer
- 32-25k Hz Frequency Response
- 98 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 150watts
- Weight:28.00kg
- Dimensions (H x W x D): 1097.0" x 10-7/8" x 17-9/16"( 1097.0 x 277.0 x 447.0mm )
Revel Concerta2 F35 Key Specs
- 3-way Design
- 1" dome with with proprietary acoustic lens and waveguide Tweeter
- 5.25" Midrange
- 2 x 5.25" Anodized aluminum Woofer
- 5.25" Midrange
- 55- Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:30-180watts
- Weight:18.64kg
- Dimensions (H x W x D): 1026.0" x 8-1/2" x 12-5/16"( 1026.0 x 216.0 x 313.0mm )
What size room are the Klipsch RP-8000F II and Revel Concerta2 F35 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-8000F II |
Revel Concerta2 F35 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-8000F II and Revel Concerta2 F35 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that RP-8000F II is a 2-way design whereas the F35 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Klipsch RP-8000F II |
Revel Concerta2 F35 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5.25-inch |
|
Woofer
|
2 x 8-inch
|
2 x 5.25-inch
|
RP-8000F II features a 1" titanium Tractrix Horn Tweeter and 2 x 8" Cerametallic cone Woofer with a Crossover frequency at 1630 Hz. On the other hand, the F35 features a 1" aluminum dome with with proprietary acoustic lens and waveguide Tweeter , a 5.25" Midrange and 2 x 5.25" Anodized aluminum Woofer .
Frequency Response
RP-8000F II has a frequency range of 32-25k Hz whereas F35 has a frequency range of 55- Hz. With a minimum frequency of 32Hz, the RP-8000F II can go significantly deeper on the low side and provide stronger bass compared to the F35's min frequency of 55Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-8000F II is a 8 ohms speaker compared to the F35 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. RP-8000F II sensitivity is rated at 98 dB and the F35's is rated at 90 dB. This 8 dB difference makes the Klipsch RP-8000F II a more sensitive speaker compared to Revel Concerta2 F35, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
RP-8000F II can handle a max power of 180 watts RMS from the amp the whereas RP-8000F II has a max power handling value of 150 watts RMS , 30 watts less than the F35.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RP-8000F II features Binding post posts which make bi-amping or bi-wiring possible. F35 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
Klipsch RP-8000F II's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both RP-8000F II and F35 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-8000F II's and Revel Concerta2 F35's external dimensions. Klipsch RP-8000F II has external dimensions of 1097.0 x 277.0 x 447.0mm ( 43-3/16 x 10-7/8 x 17-9/16inch) whereas Revel Concerta2 F35 has external dimensions of 1026.0 x 216.0 x 313.0mm ( 40-3/8 x 8-1/2 x 12-5/16inch) .
Klipsch RP-8000F II is clearly the larger of the two speakers. Its body is 61mm wider, 71mm taller and 134mm deeper than Revel Concerta2 F35.

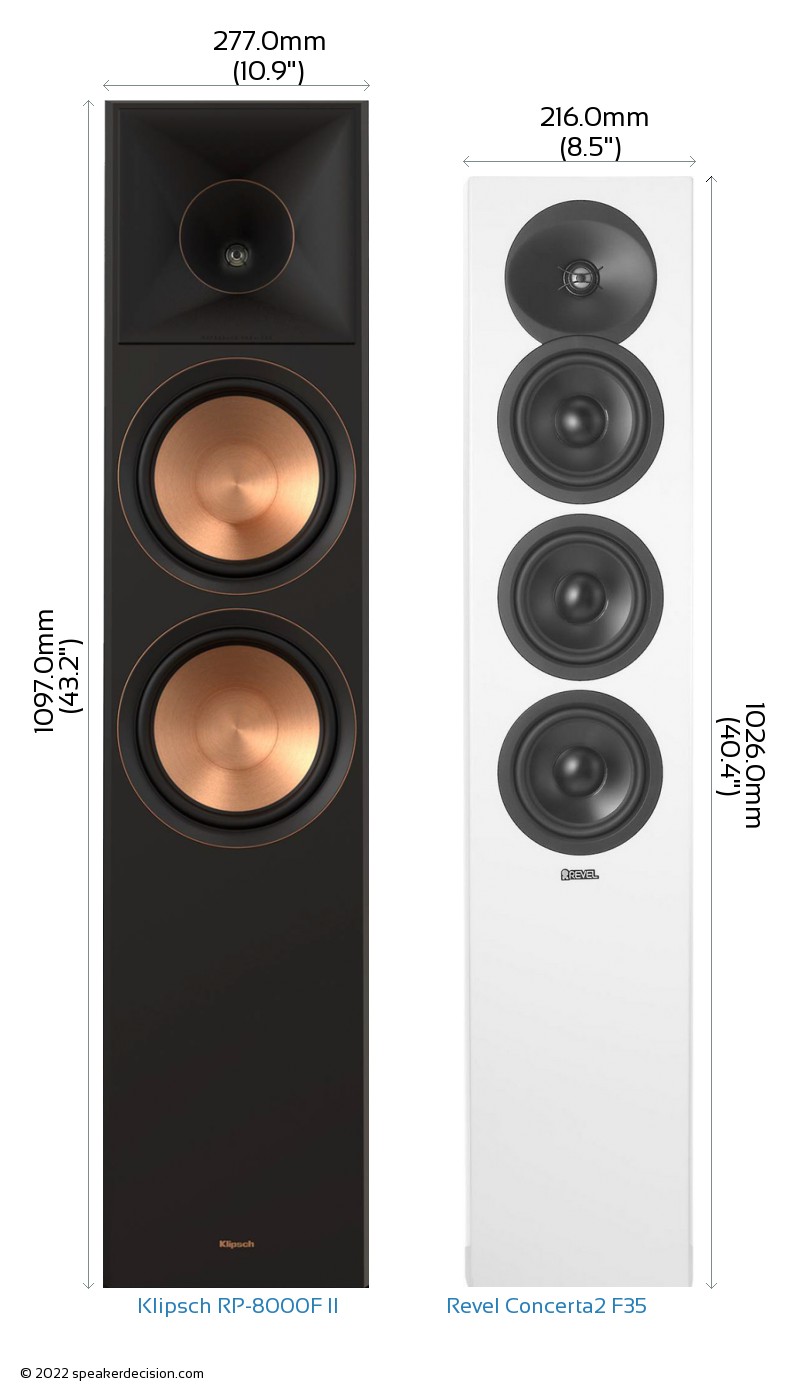

Below you can see the front view size comparison of Klipsch RP-8000F II and Revel Concerta2 F35 in scale.
Comparison image of Klipsch RP-8000F II and Revel Concerta2 F35 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-8000F II is approximately 1238.2cm2 / 191.9inch2 and base area of the Revel Concerta2 F35 is approximately 676.1cm2 / 104.8inch2. The RP-8000F II requires 83% more surface area than the F35 which gives it a small disadvantage on placement in tight spaces.
