In this review, we will be comparing two different type of speakers by JBL. JBL Stage 240B is a Bookshelf speaker whereas the A190 is a Floor-standing speaker.
Let's have a brief look at the main features
of JBL Stage 240B and JBL Stage A190 first before getting into our more
detailed comparison.
JBL Stage 240B Key Specs
- 2-way Design
- 1" Hard-dome Tweeter
- 4.5" Polycellulose Woofer
- 65-25k Hz Frequency Response
- 85 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-75watts
- Weight:4.59kg
- Dimensions (H x W x D): 274.0" x 6-15/16" x 8-1/2"( 274.0 x 177.0 x 216.0mm )
JBL Stage A190 Key Specs
- 2-way Design
- 1" HDI (High Definition Imaging) waveguide Tweeter
- 2 x 8" Polycellulose Woofer
- 36-40k Hz Frequency Response
- 91 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-225watts
- Weight:22.61kg
- Dimensions (H x W x D): 1117.0" x 13-1/4" x 17-1/2"( 1117.0 x 337.0 x 445.0mm )
What size room are the JBL Stage 240B and JBL Stage A190 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
JBL Stage 240B |
JBL Stage A190 |
| Near-field |
Average |
Bad |
| Small Room |
Good |
Poor |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Good |
| Very Large Room |
Bad |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the JBL Stage 240B and JBL Stage A190 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Stage 240B and A190 are 2-way speakers.
| Driver |
JBL Stage 240B |
JBL Stage A190 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 4.5-inch
|
2 x 8-inch
|
Stage 240B features a 1" Hard-dome Tweeter and 1 x 4.5" Polycellulose Woofer . On the other hand, the A190 features a 1" aluminum HDI (High Definition Imaging) waveguide Tweeter and 2 x 8" Polycellulose Woofer .
Frequency Response
Stage 240B has a frequency range of 65-25k Hz whereas A190 has a frequency range of 36-40k Hz. With a minimum frequency of 36Hz, the A190 can go significantly deeper on the low side and provide stronger bass compared to the Stage 240B's min frequency of 65Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Stage 240B and A190 have the same Impedance of 6 ohms but where they differ is the sensitivity levels. Stage 240B sensitivity is rated at 85 dB and the A190's is at 91 dB. This 6 dB difference makes the JBL Stage A190 a more sensitive speaker compared to JBL Stage 240B, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Stage 240B can handle a max power of 225 watts RMS from the amp the whereas Stage 240B has a max power handling value of 75 watts RMS , 150 watts less than the A190.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
A190 features 5-Way post posts which make bi-amping or bi-wiring possible. Stage 240B has a 5-Way post which doesn't feature bi-amping/bi-wiring.
Physical Specs

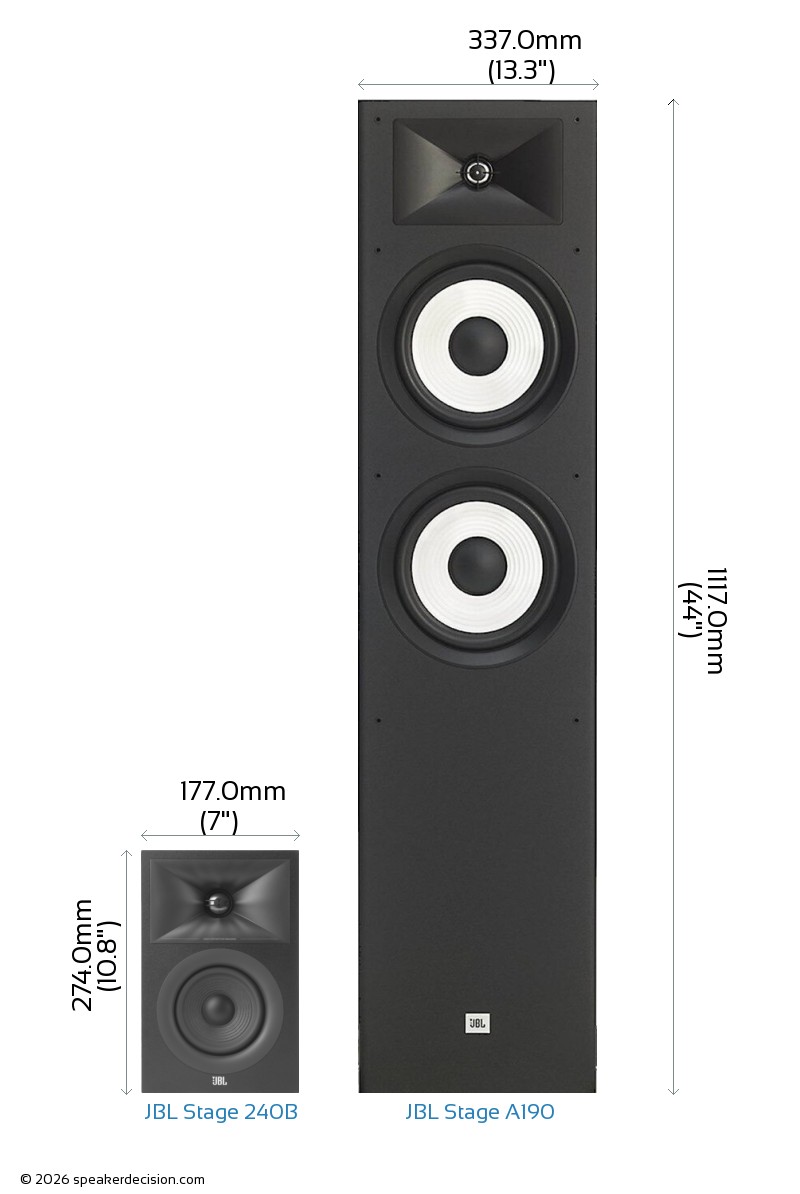

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage 240B's and JBL Stage A190's external dimensions. JBL Stage 240B has external dimensions of 274.0 x 177.0 x 216.0mm ( 10-3/4inch x 6-15/16inch x 8-1/2inch ) whereas JBL Stage A190 has external dimensions of 1117.0 x 337.0 x 445.0mm ( 43-15/16 x 13-1/4 x 17-1/2inch) .
JBL Stage A190 is clearly the larger of the two speakers. Its body is 160mm wider, 843mm taller and 229mm deeper than JBL Stage 240B.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL Stage 240B is approximately 382.3cm2 / 59.3inch2 and base area of the JBL Stage A190 is approximately 1499.7cm2 / 232.5inch2. The Stage 240B requires 75% less surface area than the A190 which gives it a small advantage on placement in tight spaces.
What's in the Box of JBL Stage 240B?
Here are the items that are included inside the box of Stage 240B:
2 Bookshelf loudspeakers 2 Grilles 2 Foam plugs 2 Wall-brackets 4 Mounting screws 8 Self-adhesive rubber pads Quick Start Guide Important Safety Instructions
What's in the Box of JBL Stage A190?
Here are the items that come with the A190:
Floorstanding loudspeakerGrille4 Outriggers4 Rubber feet4 Spikes8 Screws2 Terminal jumpers (pre-installed)Owners ManualWarranty Card
