In this review, we will be comparing two different types of speakers by JBL. JBL Stage 240B is a Bookshelf speaker whereas the A135C is a Center Channel speaker.
Let's have a brief look at the main features
of JBL Stage 240B and JBL Stage A135C first before getting into our more
detailed comparison.
| Key Specs | JBL Stage 240B | JBL Stage A135C |
|---|
| Brand | JBL
United States · founded 1946 | JBL
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Hard-dome | 1" dome with HDI (High Definition Imaging) waveguide technology |
|---|
| Woofer | 4.5" Polycellulose | 6 x 3" polycellulose |
|---|
| Frequency response | 65-25k Hz | 75-40k Hz |
|---|
| Sensitivity | 85 dB | 90 dB |
|---|
| Impedance | 6 ohms | 6 ohms |
|---|
| Power range | 25-75 watts | 20-150 watts |
|---|
| Weight | 4.59kg / 10.1lbs | 7.46kg / 16.4lbs |
|---|
| Dimensions (H x W x D) | 10-3/4" x 6-15/16" x 8-1/2"
274.0 x 177.0 x 216.0mm | 4-1/8" x 29-3/8" x 7-5/16"
105.0 x 747.0 x 186.0mm |
|---|
What size room are the JBL Stage 240B and JBL Stage A135C speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Stage 240B |
JBL Stage A135C |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Stage 240B and A135C are 2-way speakers.
JBL Stage 240BJBL Stage A135C
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
JBL Stage 240B |
JBL Stage A135C |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 4.5-inch
|
6 x 3-inch
|
Stage 240B features a 1" Hard-dome Tweeter and 1 x 4.5" Polycellulose Woofer. On the other hand, the A135C features a 1" aluminum dome with HDI (High Definition Imaging) waveguide technology Tweeter and 6 x 3" polycellulose Woofer.
Frequency Response
Stage 240B has a frequency range of 65-25k Hz whereas A135C has a frequency range of 75-40k Hz. With a minimum frequency of 65Hz, the Stage 240B can go significantly deeper on the low side and provide stronger bass compared to the A135C's min frequency of 75Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Stage 240B and A135C have the same Impedance of 6 ohms but where they differ is the sensitivity levels. Stage 240B sensitivity is rated at 85 dB and the A135C's is at 90 dB. This 5 dB difference makes the JBL Stage A135C a more sensitive speaker compared to JBL Stage 240B, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
A135C can handle a max power of 150 watts RMS, whereas Stage 240B has a max power handling value of 75 watts RMS, 75 watts less than the A135C.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Stage 240B features 5-way post type posts and A135C has a 5-way post type posts. None of these speakers feature bi-amping/bi-wiring.
Cabinet Type and Port Position
Stage 240B has a rear firing port whereas A135C has a side firing ports.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage 240B's and JBL Stage A135C's external dimensions. JBL Stage 240B has external dimensions of 274.0 x 177.0 x 216.0mm (10-3/4inch x 6-15/16inch x 8-1/2inch) whereas JBL Stage A135C has external dimensions of 105.0 x 747.0 x 186.0mm (4-1/8 x 29-3/8 x 7-5/16inch).
JBL Stage A135C is 169mm shorter and 30mm less deeper than JBL Stage 240B but it is also 570mm wider.

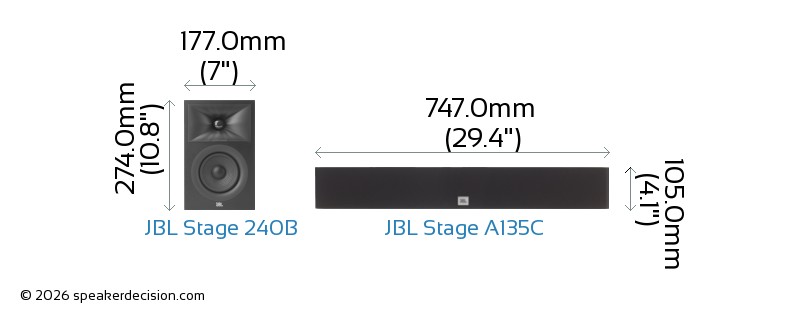

Below you can see the front view size comparison of JBL Stage 240B and JBL Stage A135C in scale.
Comparison image of JBL Stage 240B and JBL Stage A135C Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL Stage 240B is approximately 382.3cm2 / 59.3inch2 and base area of the JBL Stage A135C is approximately 1389.4cm2 / 215.4inch2. The Stage 240B requires 72% less surface area than the A135C which gives it a small advantage on placement in tight spaces.
What's in the Box of JBL Stage 240B?
Here are the items that are included inside the box of Stage 240B:
- 2 Bookshelf loudspeakers 2 Grilles 2 Foam plugs 2 Wall-brackets 4 Mounting screws 8 Self-adhesive rubber pads Quick Start Guide Important Safety Instructions
What's in the Box of JBL Stage A135C?
Here are the items that come with the A135C:
- Center-channel loudspeaker
- Grille
- 4 Leveling feet
- 4 Rubber feet
- Owners Manual
- Warranty Card
