In this review, we will be comparing two different type of speakers . ELAC Debut 3.0 DC53 is a Center Channel speaker whereas the S 809 is a Floor-standing speaker.
Let's have a brief look at the main features
of ELAC Debut 3.0 DC53 and Jamo S 809 first before getting into our more
detailed comparison.
ELAC Debut 3.0 DC53 Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 2 x 5.25" Aramid fiber Woofer
- 57 to 38K Hz Frequency Response
- 87.5 dB Sensitivity
- Impedance: 4ohms
- Power Range:30 - 120watts
- Weight:8.73kg
- Dimensions (H x W x D): 174.0" x 19-1/16" x 9-3/4"( 174.0 x 485.0 x 248.0mm )
Jamo S 809 Key Specs
- 2-way Design
- 1" Tweeter
- 3 x 5" Aluminized Polyfiber Woofer
- 37-26k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:120watts
- Weight:13.60kg
- Dimensions (H x W x D): 1042.0" x 7.5" x 9.9"( 1042.0 x 191.0 x 252.0mm )
What size room are the ELAC Debut 3.0 DC53 and Jamo S 809 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
ELAC Debut 3.0 DC53 |
Jamo S 809 |
| Near-field |
Poor |
Bad |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the ELAC Debut 3.0 DC53 and Jamo S 809 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Debut 3.0 DC53 and S 809 are 2-way speakers.
| Driver |
ELAC Debut 3.0 DC53 |
Jamo S 809 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.25-inch
|
3 x 5-inch
|
Debut 3.0 DC53 features a 1" Hard-Dome Tweeter and 2 x 5.25" Aramid fiber Woofer with a Crossover frequency at 1900Hz. On the other hand, the S 809 features a 1" Tweeter and 3 x 5" Aluminized Polyfiber Woofer with a Crossover frequency at 2000Hz.
Frequency Response
Debut 3.0 DC53 has a frequency range of 57 to 38K Hz whereas S 809 has a frequency range of 37-26k Hz. With a minimum frequency of 37Hz, the S 809 can go significantly deeper on the low side and provide stronger bass compared to the Debut 3.0 DC53's min frequency of 57Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Debut 3.0 DC53 is a 4 ohms speaker compared to the S 809 which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Debut 3.0 DC53 can provide this impedance level.
These two speakers also have different sensitivity levels. Debut 3.0 DC53 sensitivity is rated at 87.5 dB and the S 809's is rated at 90 dB. This 2 dB difference makes the Jamo S 809 a more sensitive speaker compared to ELAC Debut 3.0 DC53, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Debut 3.0 DC53 features Post type posts and S 809 has a Post type posts. None of these speakers feature bi-amping/bi-wiring.
ELAC Debut 3.0 DC53's 5-Way post terminals
Jamo S 809's Post terminals
Jamo S 809 Port
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare ELAC Debut 3.0 DC53's and Jamo S 809's external dimensions. ELAC Debut 3.0 DC53 has external dimensions of 174.0 x 485.0 x 248.0mm ( 6-13/16-inch x 19-1/16-inch x 9-3/4-inch) whereas Jamo S 809 has external dimensions of 1042.0 x 191.0 x 252.0mm ( 41.0 x 7.5 x 9.9inch) .
ELAC Debut 3.0 DC53 is 868mm shorter and 4mm less deeper than Jamo S 809 but it is also 294mm wider.

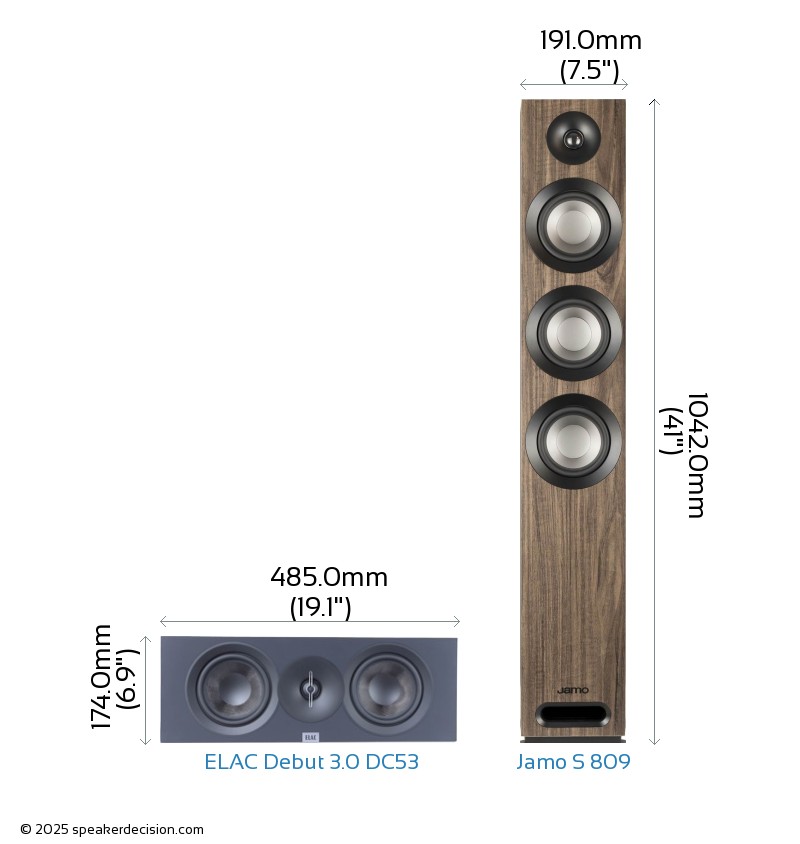

Below you can see the front view size comparison of ELAC Debut 3.0 DC53 and Jamo S 809 in scale.
Comparison image of ELAC Debut 3.0 DC53 and Jamo S 809 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the ELAC Debut 3.0 DC53 is approximately 1202.8cm2 / 186.4inch2 and base area of the Jamo S 809 is approximately 481.3cm2 / 74.6inch2. The Debut 3.0 DC53 requires 150% more surface area than the S 809 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Jamo S 809?
Here are the items that come with the S 809:
2 Floorstanding loudspeakers2 Grilles8 Mounting feet16 ScrewsUser ManualImportant Safety InstructionsWarranty Information
