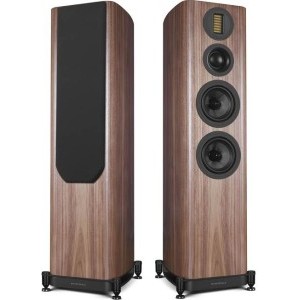

Wharfedale EVO5.4 is a 3-way Passive Bass Reflex Floor-standing speaker by Wharfedale. It features a 1.375" AMT (Ribbon) Tweeter, 1 x 2" Midrange and 2 x 6.5" woven Kevlar Woofer. The speaker has a frequency range of 42-24k Hz and a sensitivity of 90 dB. Wharfedale EVO5.4 has an MSRP of 2199$ per pair.
Room Size Suitability
The size of the room where you plan to use the Wharfedale EVO5.4 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Bad |
| Small Room | Poor |
| Mid-size Room | Good |
| Large Room | Good |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

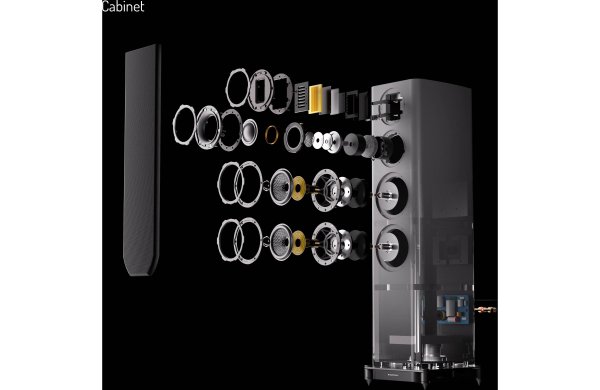

Wharfedale EVO5.4 Speaker Structure
Wharfedale replaced the older EVO4.4 with this model. Follow the link to read our detailed comparison of these models:
Compare Wharfedale EVO5.4 vs Wharfedale EVO4.4

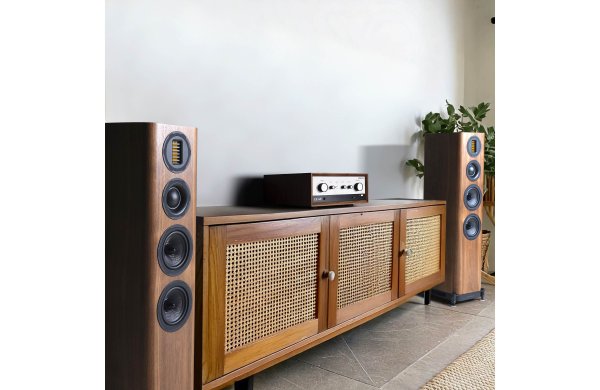

Wharfedale EVO5.4 Lifestyle

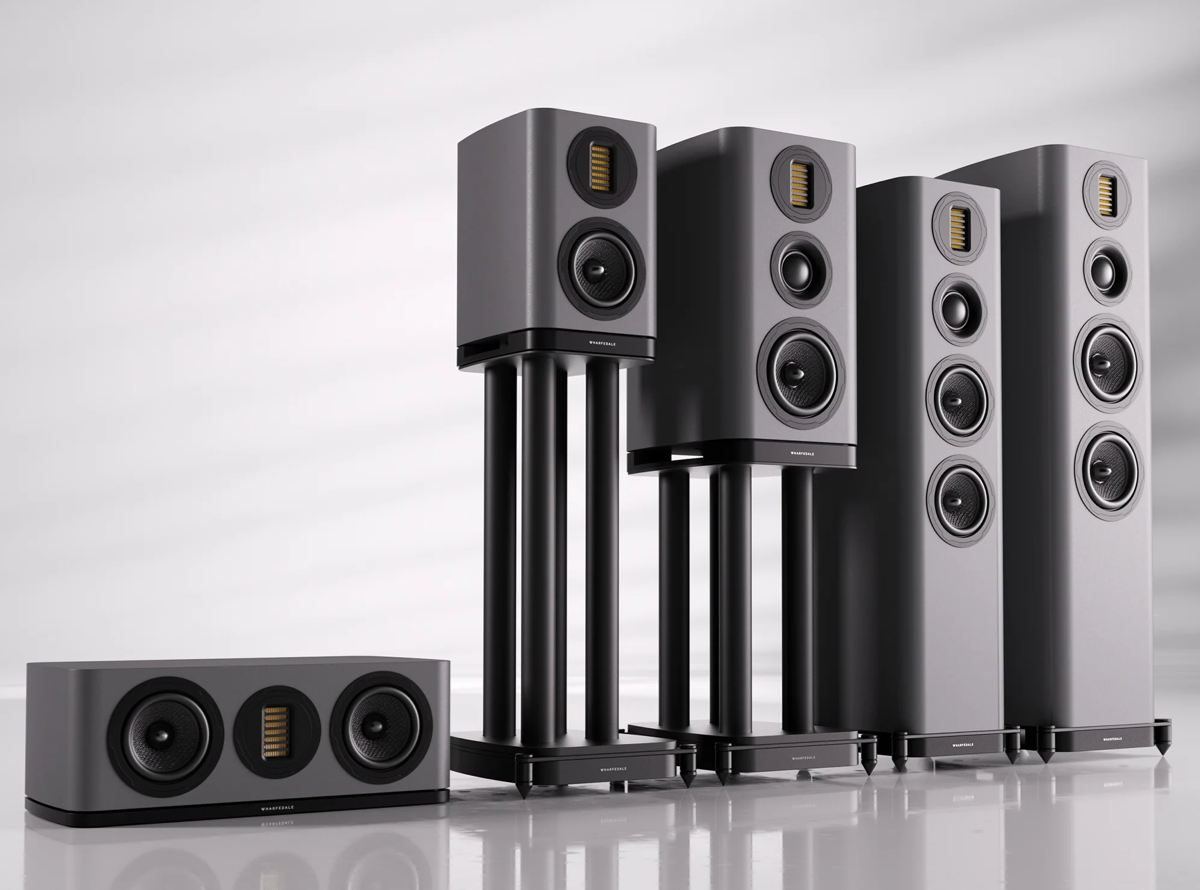

Wharfedale's EVO5 Series of Loudspeakers
EVO5.4 is a member of Wharfedale's EVO5 series of Passive speakers. Below you can see the main specs of these speakers.
Wharfedale EVO5 Series Speakers
Wharfedale EVO5 Series Speakers
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the Wharfedale EVO5.4 Speaker
Wharfedale EVO5.4 has a Frequency response range of 42-24k Hz at ±3dB and Power Range of 30-200 watts. With a minimum frequency of 42 Hz, EVO5.4 delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
To focus on the subwoofers that are in a similar price range with Wharfedale EVO5.4, check out the Powered Subwoofers under $3000. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how EVO5.4's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
Among the speakers in our database with a max MSRP price of 3000$ (Pair), these are the 5 Passive Floor-standing speakers that have the deeper bass levels than the Wharfedale EVO5.4's 42Hz:
Crossover frequency of the Wharfedale EVO5.4?
EVO5.4 is a 3-way speaker and its crossover frequency between the woofer and the midrange set to 1100Hz and the Crossover frequency between the midrange and the tweeter is set to 4000Hz.
Impedance and Sensitivity
Wharfedale EVO5.4's nominal impedance level is
4 ohms but can go down to as low as
4.3 ohms, and has a sensitivity of
90 dB.
Sensitivity
Floor-standing Speakers
Nominal Impedance of the 4 Ohms means that the Wharfedale EVO5.4 is a difficult to drive speaker from nominal Impedance perspective, make sure that you choose an amplifier than can provide 4 Ohms for this speaker.
Many AVRs (audio/video receiver) in the market may have difficulty when the speakers dip below the 4 Ohms levels (this may cause clipping or even physical damage), so we recommend to not pair the Wharfedale EVO5.4 with an AVR but use an Integrated Amplifier instead.
Sensitivity
90dB of the Wharfedale EVO5.4 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise.
Check the amplifiers that are in a similar price range to the Wharfedale EVO5.4:
Input Type
EVO5.4 features Binding post type connectors. Bi-amping and Bi-wiring are not possible.

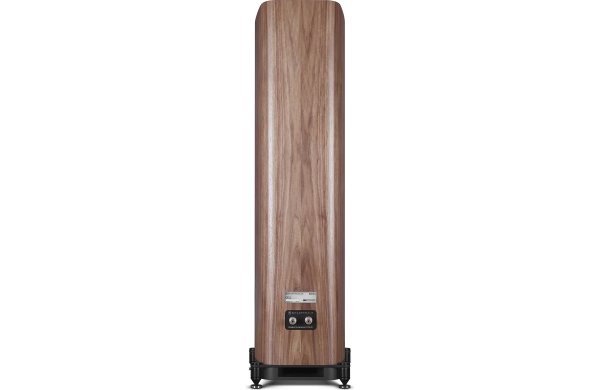

Wharfedale EVO5.4 Back View
Wharfedale EVO5.4 External Dimensions and Weight
Wharfedale EVO5.4 has external dimensions of (Height x Width x Depth) 40.5" × 11.9" × 15.4" (1028.0 x 302.0 x 350.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Wharfedale EVO5.4 is approximately 1057.0cm2 / 163.8inch2.

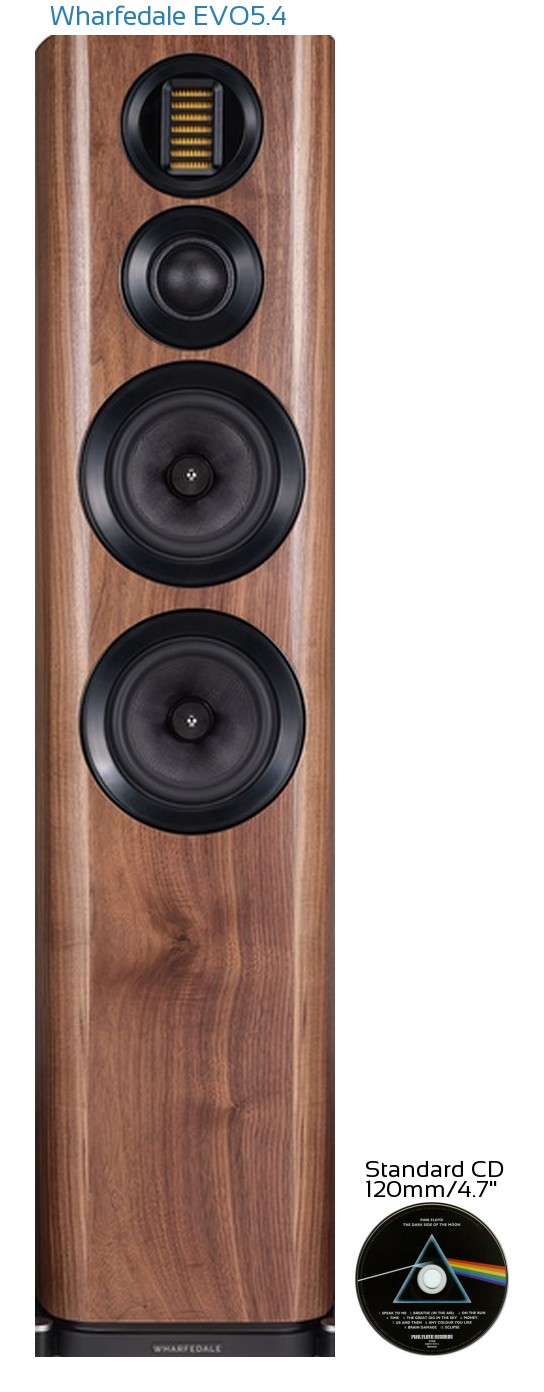

To get a better perspective on the real life size of Wharfedale EVO5.4, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Wharfedale EVO5.4 Speaker Size Compared to a Compact Disc

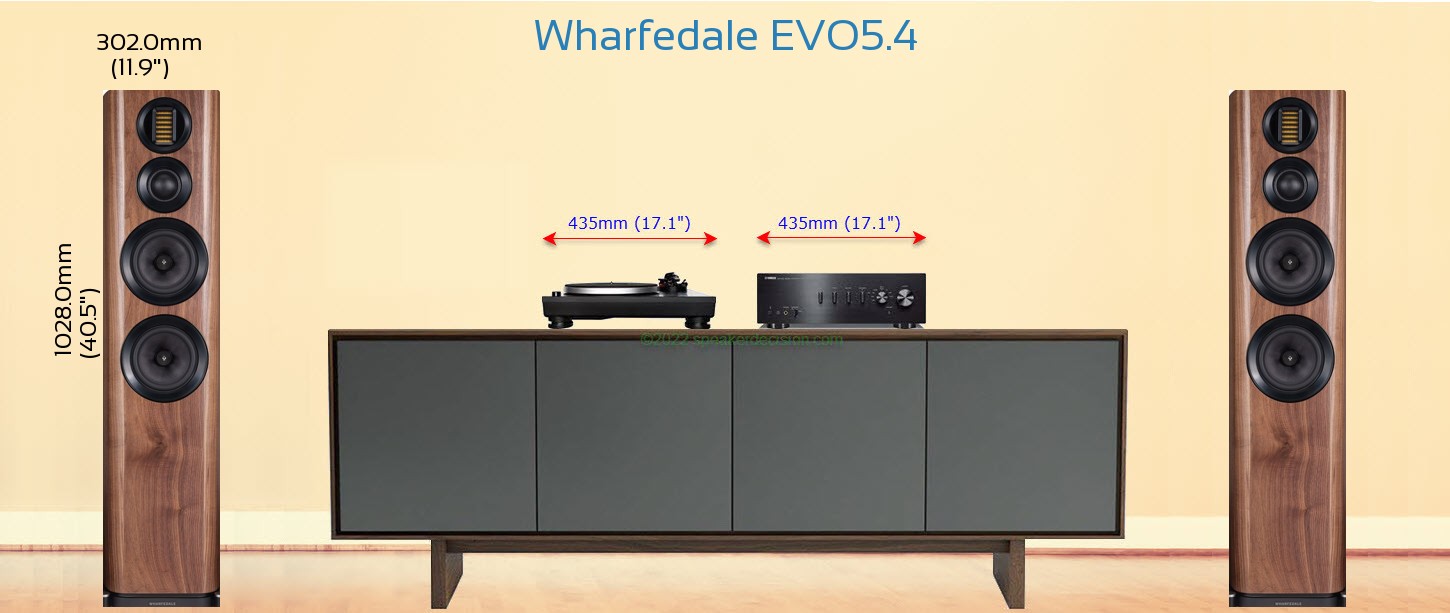

Here we place the Wharfedale EVO5.4 virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
Wharfedale EVO5.4 Floor-standing Speaker next to a Media Stand
WeightThe Wharfedale EVO5.4 weighs 31.20kg / 68.6lbs per piece. Here is a comparison of how EVO5.4's weight compares with the average, max and min weights in its class.
Weight
All Floor-standing Speakers
Weight
Floor-standing Speakers under $3000
Cabinet type and Materials
Wharfedale EVO5.4 has a
Bass Reflex type cabinet and a MDF/Wood-veneer finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Speaker Feet
Wharfedale EVO5.4 comes with the parts below which you can use to secure your loudspeaker on the surface that you are putting on:
4 Outrigger feet (pre-installed) 4 Spikes (pre-installed) 4 Isolation pucks It is always recommended to use some kind of feet under all types of speakers. Besides limiting the movement of the speakers, it also compensates for non-flat surfaces and limits the contact surface area of the speaker. Rubber based feet also help isolating the vibrations within certain frequency ranges.
Port Position
Wharfedale EVO5.4 is a bottom-firing port speaker
Available colors
Wharfedale EVO5.4 is available in Walnut, Grey. Black and White.
Does the Wharfedale EVO5.4 come with a Grille?
EVO5.4 comes with magnetic grilles in black color choices. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible. Since the included grille of the EVO5.4 is magnetic type, it is very easy to put it on and off.

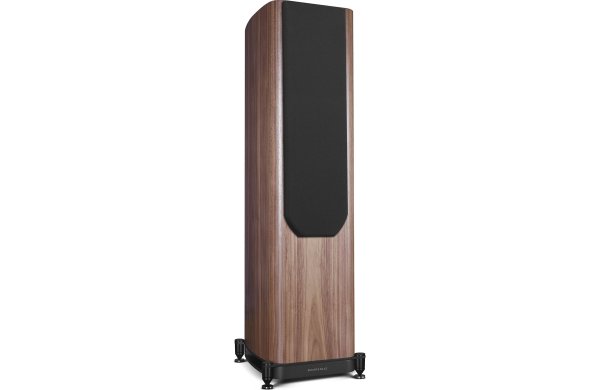

Wharfedale EVO5.4 with Grille
What's in the Box of Wharfedale EVO5.4?
Here are the items that are included inside the box of EVO5.4:
Floorstanding loudspeaker Grille 4 Outrigger feet (pre-installed) 4 Spikes (pre-installed) 4 Isolation pucks 2 Jumper-bars (pre-installed) Pair of white cloth gloves User Manual
Recommended Accessories
Here is a list of accessories that we think you may need for the Wharfedale EVO5.4.
User's Manual
For more information about how to setup, use and maintain the Wharfedale EVO5.4, use the direct link below to download the official manual document:
Download User Manual for Wharfedale EVO5.4
Official Product Page
Official manufacturer's product page for the Wharfedale EVO5.4 speaker can be found below:
Official Product Page for Wharfedale EVO5.4
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

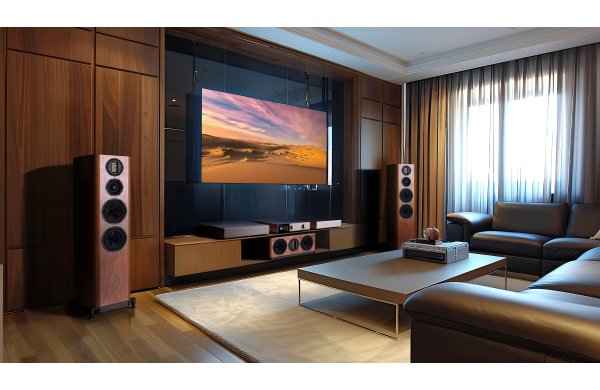

Wharfedale EVO5.4 Lifestyle
