In this review, we will be comparing two different type of speakers by Wharfedale. Wharfedale EVO5.C is a Center Channel speaker whereas the EVO5.1 is a Bookshelf speaker.
Let's have a brief look at the main features
of Wharfedale EVO5.C and Wharfedale EVO5.1 first before getting into our more
detailed comparison.
Wharfedale EVO5.C Key Specs
- 2-way Design
- 1.375" AMT (Ribbon) Tweeter
- 2 x 5" woven Kevlar Woofer
- 56-24k Hz Frequency Response
- 89 dB Sensitivity
- Impedance: 4ohms
- Power Range:25-120watts
- Weight:12.50kg
- Dimensions (H x W x D): 188.0" x 20.5" x 12"( 188 x 520 x 265.0mm )
Wharfedale EVO5.1 Key Specs
- 2-way Design
- 1.375" AMT (Ribbon) Tweeter
- 5" woven Kevlar Woofer
- 56-24k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 4ohms
- Power Range:25-100watts
- Weight:8.00kg
- Dimensions (H x W x D): 340.0" x 8.7" x 12.8"( 340.0 x 220.0 x 285.0mm )
EVO5.C and EVO5.1 are members of Wharfedale's EVO5 series of speakers. Below you can find the loudspeakers from this series.
Wharfedale EVO5 Series
History
What size room are the Wharfedale EVO5.C and Wharfedale EVO5.1 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO5.C |
Wharfedale EVO5.1 |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale EVO5.C and Wharfedale EVO5.1 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both EVO5.C and EVO5.1 are 2-way speakers.
| Driver |
Wharfedale EVO5.C |
Wharfedale EVO5.1 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1.375-inch
|
1.375-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5-inch
|
1 x 5-inch
|
EVO5.C features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter and 2 x 5" woven Kevlar Woofer with a Crossover frequency at 2300Hz. On the other hand, the EVO5.1 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter and 1 x 5" woven Kevlar Woofer with a Crossover frequency at 2700Hz.
Frequency Response
EVO5.C and EVO5.1 has exactly the same frequency range of 56-24k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.C and EVO5.1 have the same Impedance of 4 ohms but where they differ is the sensitivity levels. EVO5.C sensitivity is rated at 89 dB and the EVO5.1's is at 87 dB. This 2 dB difference makes the Wharfedale EVO5.C a more sensitive speaker compared to Wharfedale EVO5.1, hence will play louder with the same amount of watts.
One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the EVO5.C and the EVO5.C can provide this impedance level.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
EVO5.C can handle a max power of 120 watts RMS from the amp the whereas EVO5.1 has a max power handling value of 100 watts RMS, 20 watts less than the EVO5.C.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
EVO5.C features Binding post type posts and EVO5.1 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale EVO5.1's Binding post terminals
Cabinet Type and Port Position
EVO5.C has a rear firing port whereas EVO5.1 has a bottom firing ports. Wharfedale EVO5.1's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Wharfedale EVO5.C with its rear-firing port.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.C's and Wharfedale EVO5.1's external dimensions. Wharfedale EVO5.C has external dimensions of 188 x 520 x 265.0mm ( 7.4" × 20.5" × 12.0") whereas Wharfedale EVO5.1 has external dimensions of 340.0 x 220.0 x 285.0mm ( 13.4" × 8.7" × 12.8") .
Wharfedale EVO5.C is 152mm shorter and 20mm less deeper than Wharfedale EVO5.1 but it is also 300mm wider.

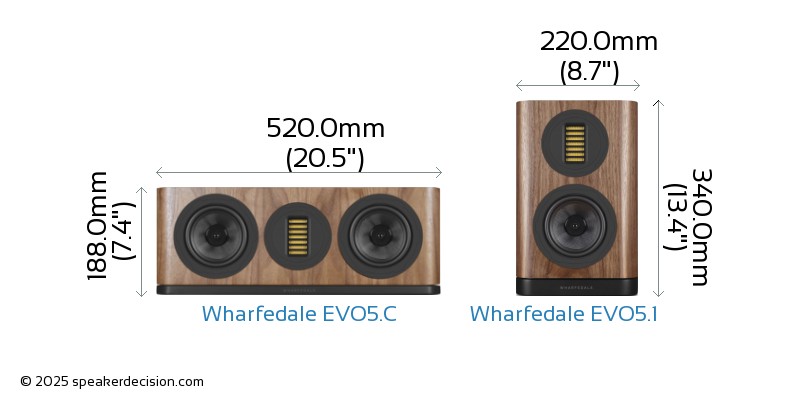

Below you can see the front view size comparison of Wharfedale EVO5.C and Wharfedale EVO5.1 in scale.
Comparison image of Wharfedale EVO5.C and Wharfedale EVO5.1 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.C is approximately 1378.0cm2 / 213.6inch2 and base area of the Wharfedale EVO5.1 is approximately 627.0cm2 / 97.2inch2. The EVO5.C requires 120% more surface area than the EVO5.1 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Wharfedale EVO5.C?
Here are the items that are included inside the box of EVO5.C:
Center-channel loudspeakerGrille2 Foam port plugs (pre-installed)2 Jumper-bars (pre-installed)4 Self-adhesive rubber feetPair of white cloth glovesUser Manual
What's in the Box of Wharfedale EVO5.1?
Here are the items that come with the EVO5.1:
2 Bookshelf loudspeakers 2 Grilles 4 Jumper-bars (pre-installed) 8 Self-adhesive rubber feet Pair of white cloth gloves User Manual
