In this review, we will be comparing LINTON Heritage and Motion 35XTi, two Passive Bookshelf speakers from Wharfedale and MartinLogan.
Let's have a brief look at the main features
of Wharfedale LINTON and MartinLogan 35XTi first before getting into our more
detailed comparison.
Wharfedale LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Woven Kevlar Woofer
- 40-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:18.40kg
- Dimensions (H x W x D): 565.0" x 11.8" x 14.2"( 565.0 x 300.0 x 360.0mm )
MartinLogan 35XTi Key Specs
- 2-way Design
- 1.25 x 2.4" Folded Motion XT Tweeter
- 6.5" Aluminum Woofer
- 50-25k Hz Frequency Response
- 92 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-250watts
- Weight:8.40kg
- Dimensions (H x W x D): 343.0" x 7.5" x 11.8"( 343.0 x 192.0 x 300.0mm )
What size room are the Wharfedale LINTON and MartinLogan 35XTi speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale LINTON |
MartinLogan 35XTi |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale LINTON and MartinLogan 35XTi compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that LINTON Heritage is a 3-way design whereas the Motion 35XTi is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Wharfedale LINTON |
MartinLogan 35XTi |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1.25 x 2.4-inch
|
|
Midrange
|
1 x 5-inch |
- |
|
Woofer
|
1 x 8-inch
|
1 x 6.5-inch
|
LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz. On the other hand, the Motion 35XTi features a 1.25 x 2.4" Folded Motion XT Tweeter and 1 x 6.5" Aluminum Woofer with a Crossover frequency at 2200Hz.
Frequency Response
LINTON Heritage has a frequency range of 40-20k Hz whereas Motion 35XTi has a frequency range of 50-25k Hz. With a minimum frequency of 40Hz, the LINTON Heritage can go significantly deeper on the low side and provide stronger bass compared to the Motion 35XTi's min frequency of 50Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
LINTON Heritage is a 6 ohms speaker compared to the Motion 35XTi which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion 35XTi can provide this impedance level.
These two speakers also have different sensitivity levels. LINTON Heritage sensitivity is rated at 90 dB and the Motion 35XTi's is rated at 92 dB. This 2 dB difference makes the MartinLogan 35XTi a more sensitive speaker compared to Wharfedale LINTON, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
LINTON Heritage can handle a max power of 250 watts RMS from the amp the whereas LINTON Heritage has a max power handling value of 200 watts RMS , 50 watts less than the Motion 35XTi.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Motion 35XTi features Custom 5-way bi-wire tool-less binding posts posts which make bi-amping or bi-wiring possible. LINTON Heritage has a Post which doesn't feature bi-amping/bi-wiring.
Wharfedale LINTON's Post terminals
MartinLogan 35XTi's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both LINTON Heritage and Motion 35XTi have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale LINTON's and MartinLogan 35XTi's external dimensions. Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) whereas MartinLogan 35XTi has external dimensions of 343.0 x 192.0 x 300.0mm ( 13.5 x 7.5 x 11.8inch) .
Wharfedale LINTON is clearly the larger of the two speakers. Its body is 108mm wider, 222mm taller and 60mm deeper than MartinLogan 35XTi.

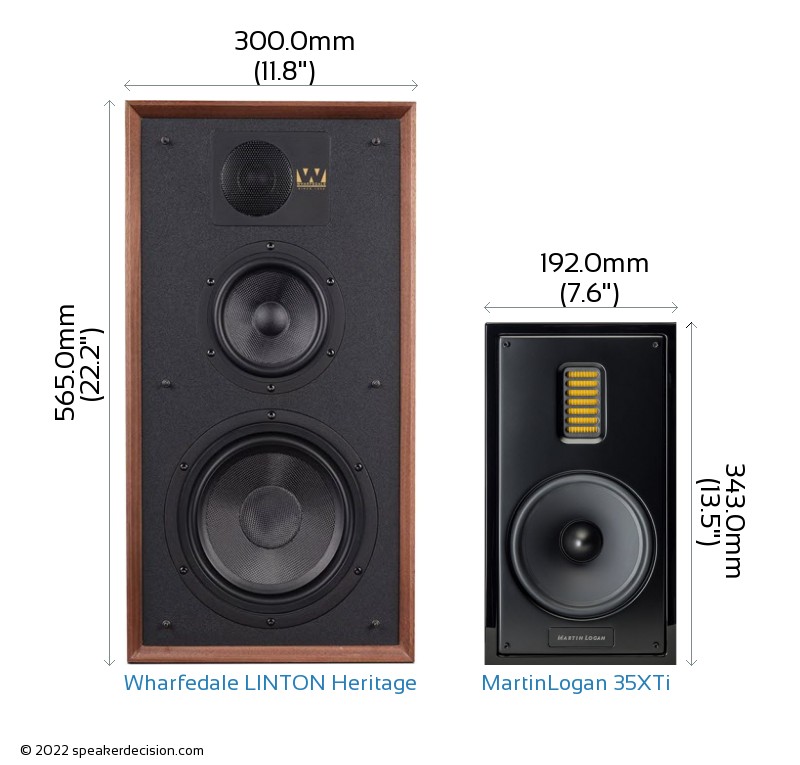

Below you can see the front view size comparison of Wharfedale LINTON and MartinLogan 35XTi in scale.
Comparison image of Wharfedale LINTON and MartinLogan 35XTi Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2 and base area of the MartinLogan 35XTi is approximately 576.0cm2 / 89.3inch2. The LINTON Heritage requires 72% more surface area than the Motion 35XTi which gives it a small disadvantage on placement in tight spaces.
