In this review, we will be comparing Motion 40i and RP-6000F, two Passive Floor-standing speakers from MartinLogan and Klipsch. Let's have a brief look at the main features
of MartinLogan 40i and Klipsch RP-6000F first before getting into our more
detailed comparison.
What size room are the MartinLogan 40i and Klipsch RP-6000F speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the MartinLogan 40i and Klipsch RP-6000F compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Motion 40i is a 3-way design whereas the RP-6000F is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Driver |
MartinLogan 40i |
Klipsch RP-6000F |
Driver Setup
|
3-way
|
2-way
|
Tweeter
|
1.0 x 1.4-inch
|
1-inch
|
Midrange
|
1 x 5.5-inch |
- |
Woofer
|
2 x 6.5-inch
|
2 x 6.5-inch
|
Motion 40i features a 1.0 x 1.4" Folded Motion Tweeter , a 5.5" Midrange and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 500Hz and 2600Hz. On the other hand, the RP-6000F features a 1" Tractrix Horn Tweeter and 2 x 6.5" Cerametallic Woofer .
Frequency Response
Motion 40i has a frequency range of 40-25k Hz whereas RP-6000F has a frequency range of 34-25k Hz. With a minimum frequency of 34Hz, the RP-6000F can go significantly deeper on the low side and provide stronger bass compared to the Motion 40i's min frequency of 40Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Motion 40i is a 4 ohms speaker compared to the RP-6000F which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion 40i can provide this impedance level.
These two speakers also have different sensitivity levels. Motion 40i sensitivity is rated at 92 dB and the RP-6000F's is rated at 97 dB. This 5 dB difference makes the Klipsch RP-6000F a more sensitive speaker compared to MartinLogan 40i, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Motion 40i can handle a max power of 300 watts RMS from the amp the whereas RP-6000F has a max power handling value of 125 watts RMS, 175 watts less than the Motion 40i.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Motion 40i and RP-6000F features dual binding post speaker terminals for bi-amping or bi-wiring.
Cabinet Type and Port Position
Both Motion 40i and RP-6000F have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan 40i's and Klipsch RP-6000F's external dimensions. MartinLogan 40i has external dimensions of 1055.0 x 193.0 x 332.0mm ( 41-1/2 x 7-9/16 x 13-1/16inch) whereas Klipsch RP-6000F has external dimensions of 1010.0 x 237.0 x 432.0mm ( 39-3/4 x 9-5/16 x 17inch) .
MartinLogan 40i is 44mm narrower and 100mm less deeper than Klipsch RP-6000F but it is also 45mm taller.

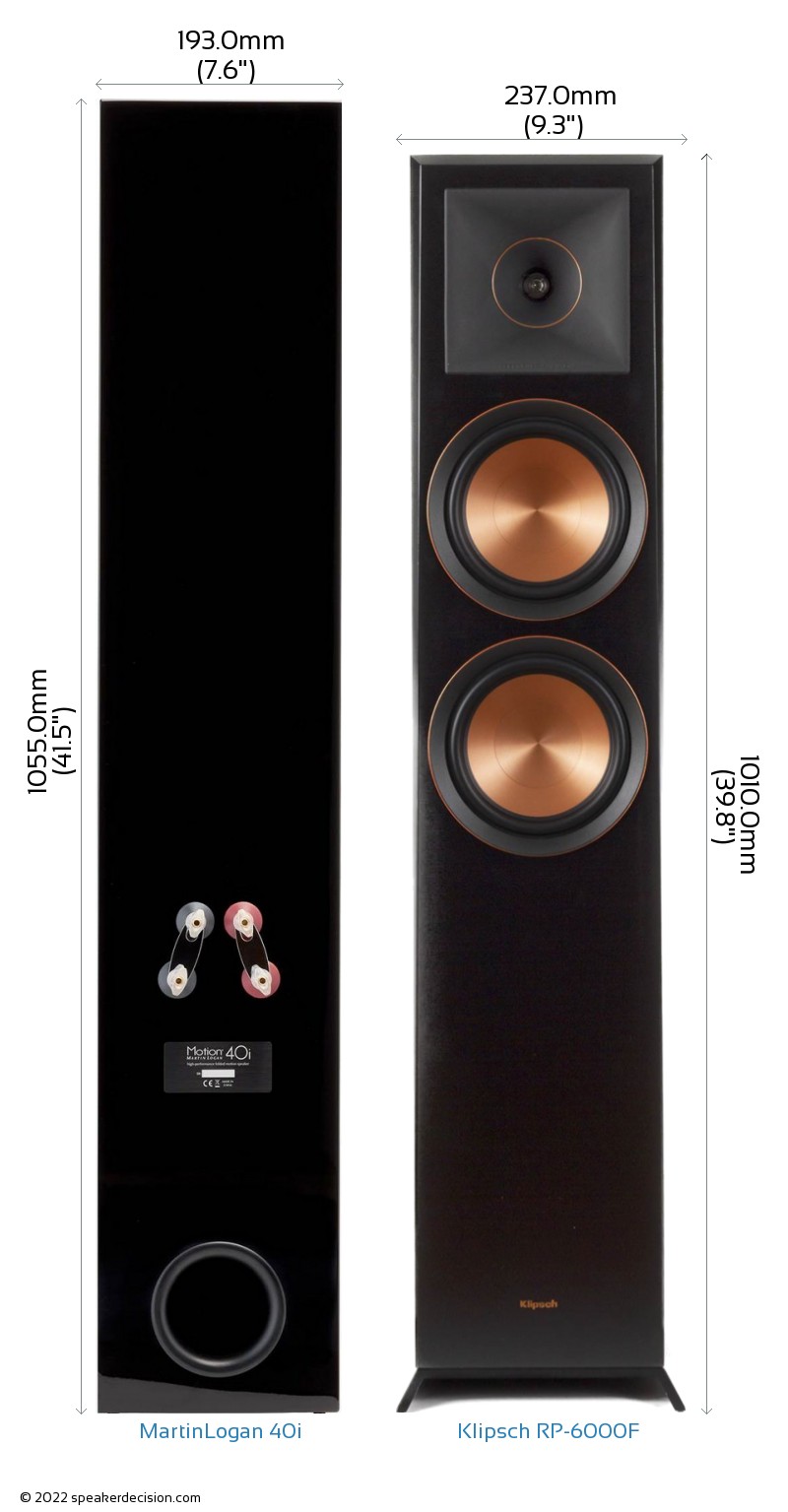

Below you can see the front view size comparison of MartinLogan 40i and Klipsch RP-6000F in scale.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the MartinLogan 40i is approximately 640.8cm2 / 99.3inch2 and base area of the Klipsch RP-6000F is approximately 1023.8cm2 / 158.7inch2. The Motion 40i requires 37% less surface area than the RP-6000F which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The MartinLogan 40i weighs 20.40kg / 44.9lbs and the Klipsch RP-6000F weighs 22.27kg / 49lbs. This makes the RP-6000F 9% heavier than the Motion 40i.
Here is a comparison of how Motion 40i and RP-6000F's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of MartinLogan 40i?
Here are the items that are included inside the box of Motion 40i:
Floorstanding loudspeaker2 Grilles4 Rubber feet (pre-installed)4 Spike feet (w/ nuts attached)Users ManualWarranty/Registration Information
What's in the Box of Klipsch RP-6000F?
Here are the items that come with the RP-6000F:
Floorstanding loudspeakerStabilizer feet (installed)Grille (installed)2 Terminal jumpers (installed)User ManualImportant Safety InstructionsWarranty Information
Max Input Power |
300 watts
vs
125 watts
|
Handle more power from your amplifier |
Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
Base Surface Area |
640cm2 (193x332mm)
vs
1023cm2 (237x432mm)
|
Takes less floor space |
Sensitivity |
97 dB
vs
92 dB
|
Play louder with same amount of amplification power |
Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
Low Frequency Response |
34 Hz
vs
40 Hz
|
Generates deeper bass |
Height |
1010mm
vs
1055mm
|
Easier to fit in smaller spaces |
Price per pair* |
1378USD
vs
2600USD
|
costs less (*prices may change depending on the seller, location and time) |
General |
MartinLogan Motion 40i |
Klipsch Reference Premiere RP-6000F |
Brand |
MartinLogan |
Klipsch |
Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
Power Range |
20-300 watts |
up to 125 watts |
Sensitivity |
92 dB |
97 dB |
Impedance |
4 ohms |
8 ohms |
Frequency Response |
40-25k Hz |
34-25k Hz |
Drivers |
|
|
Woofer Quantity |
2 |
2 |
Woofer Size |
6.5" |
6.5" |
Woofer Composition |
Aluminum |
Cerametallic |
Woofer Surround Material |
Rubber |
Rubber |
Tweeter Size |
1.0 x 1.4" |
1" |
Tweeter Type |
Folded Motion |
Tractrix Horn |
Aimable Tweeter |
No |
No |
Midrange Driver |
5.5" |
No |
Crossover Frequency |
500Hz and 2600Hz |
n/a |
Firing Direction |
rear |
rear |
Suggested Break-in Period |
Allow 72 hours of break-in at 90 dB |
n/a |
Physical Specs |
|
|
Height |
1055.0mm (41.5") |
1010.0mm (39.8") |
Width |
193.0mm (7.6") |
237.0mm (9.3") |
Depth |
332.0mm (13.1") |
432.0mm (17") |
Weight |
20.40kg (44.9lbs) |
22.27kg (49lbs) |
Enclosure |
Bass Reflex |
Bass Reflex |
Finish |
MDF/Lacquer |
MDF/Wood-grain vinyl |
Available Colors |
Gloss Black, Matt White, Red Walnut |
Walnut, Black |
Grille |
Yes |
Yes |
Moisture Resistancy |
No |
No |
Connections |
|
|
Biamp Inputs |
Yes |
Yes |
Other |
|
|
Parts Warranty |
5 Years |
5 Years |
Labor Warranty |
5 Years |
5 Years |
