In this review, we will be comparing R11 Meta and R-620F, two Passive Floor-standing speakers from KEF and Klipsch.
Let's have a brief look at the main features
of KEF R11 Meta and Klipsch R-620F first before getting into our more
detailed comparison.
KEF R11 Meta Key Specs
- 3-way Design
- 12th Generation Uni-Q Driver
- 1" Vented dome Tweeter
- 5" Midrange
- 4 x 6.5" Hybrid Aluminum Woofer
- 46-28 Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 4ohms
- Power Range:15-300watts
- Weight:36.59kg
- Dimensions (H x W x D): 1296.0" x 12-1/4" x 15-1/8"( 1296.0 x 312.0 x 385.0mm )
Klipsch R-620F Key Specs
- 2-way Design
- 1.0" Tweeter
- 2 x 6.5" Copper-spun IMG Woofer
- 38-21k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:18.64kg
- Dimensions (H x W x D): 1021.0" x 9-3/8" x 14-1/2"( 1021.0 x 239.0 x 369.0mm )
What size room are the KEF R11 Meta and Klipsch R-620F speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
KEF R11 Meta |
Klipsch R-620F |
| Near-field |
Are you nuts? |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Good |
Poor |
| Very Large Room |
Good |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the KEF R11 Meta and Klipsch R-620F compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that R11 Meta is a 3-way design whereas the R-620F is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
KEF R11 Meta |
Klipsch R-620F |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1.0-inch
|
|
Midrange
|
1 x 5-inch |
- |
|
Woofer
|
4 x 6.5-inch
|
2 x 6.5-inch
|
R11 Meta features a 1" Aluminum with MAT absorber Vented dome Tweeter , a 5" Midrange and 4 x 6.5" Hybrid Aluminum Woofer with a Crossover frequency at 330Hz and 2500Hz. On the other hand, the R-620F features a 1.0" Tweeter and 2 x 6.5" Copper-spun IMG Woofer with a Crossover frequency at 2000Hz.
Frequency Response
R11 Meta has a frequency range of 46-28 Hz whereas R-620F has a frequency range of 38-21k Hz. With a minimum frequency of 38Hz, the R-620F can go significantly deeper on the low side and provide stronger bass compared to the R11 Meta's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R11 Meta is a 4 ohms speaker compared to the R-620F which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the R11 Meta can provide this impedance level.
These two speakers also have different sensitivity levels. R11 Meta sensitivity is rated at 90 dB and the R-620F's is rated at 96 dB. This 6 dB difference makes the Klipsch R-620F a more sensitive speaker compared to KEF R11 Meta, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
R11 Meta can handle a max power of 300 watts RMS from the amp the whereas R-620F has a max power handling value of 100 watts RMS, 200 watts less than the R11 Meta.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
R11 Meta features Custom 5-way bi-wire tool-less binding posts posts which make bi-amping or bi-wiring possible. R-620F has a Post which doesn't feature bi-amping/bi-wiring.
KEF R11 Meta's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Klipsch R-620F's Post terminals
Cabinet Type and Port Position
Both R11 Meta and R-620F have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
KEF R11 Meta Port
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF R11 Meta's and Klipsch R-620F's external dimensions. KEF R11 Meta has external dimensions of 1296.0 x 312.0 x 385.0mm ( 51-inch x 12-1/4-inch x 15-1/8-inch) whereas Klipsch R-620F has external dimensions of 1021.0 x 239.0 x 369.0mm ( 40-3/16 x 9-3/8 x 14-1/2inch) .
KEF R11 Meta is clearly the larger of the two speakers. Its body is 73mm wider, 275mm taller and 16mm deeper than Klipsch R-620F.

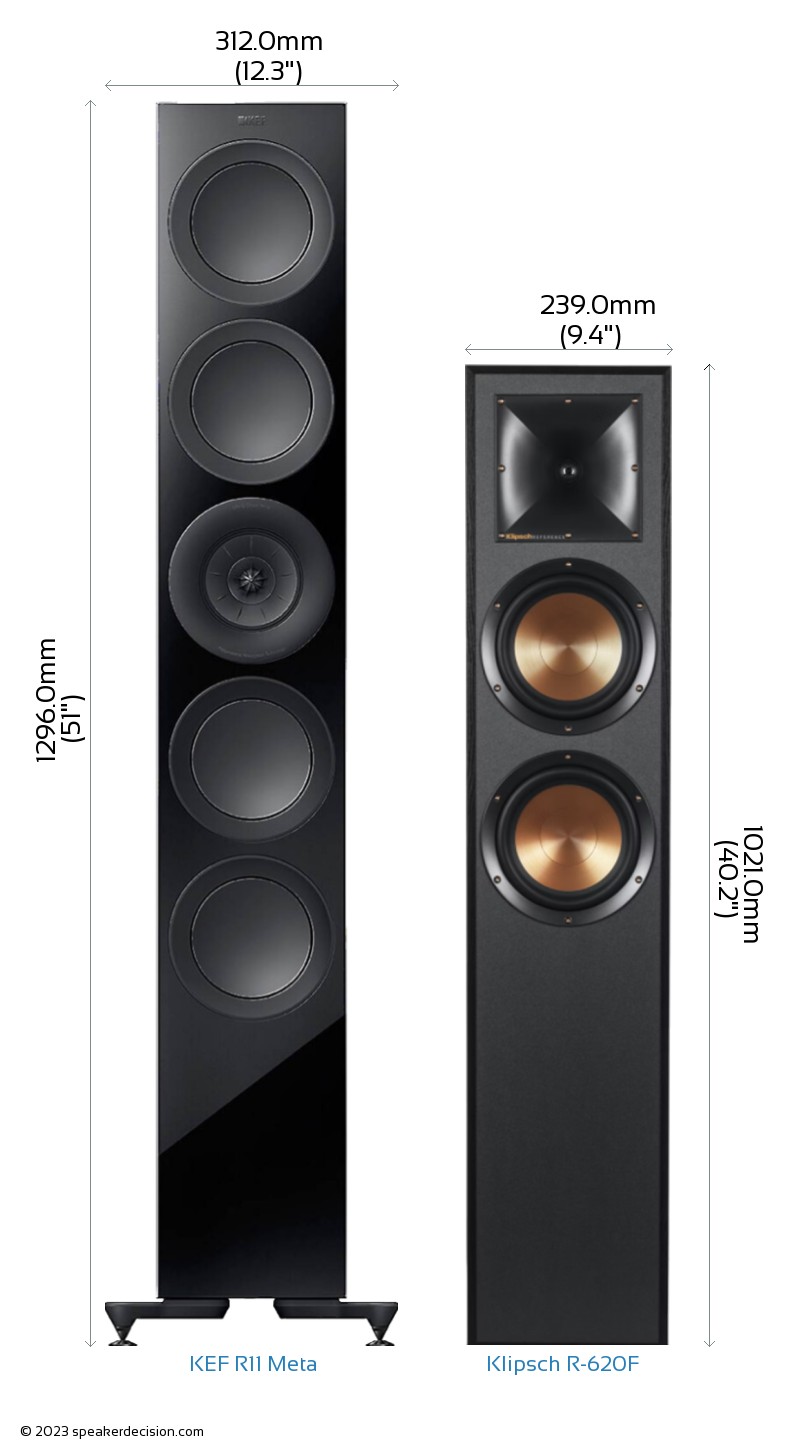

Below you can see the front view size comparison of KEF R11 Meta and Klipsch R-620F in scale.
Comparison image of KEF R11 Meta and Klipsch R-620F Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF R11 Meta is approximately 1201.2cm2 / 186.2inch2 and base area of the Klipsch R-620F is approximately 881.9cm2 / 136.7inch2. The R11 Meta requires 36% more surface area than the R-620F which gives it a small disadvantage on placement in tight spaces.
