In this review, we will be comparing A190 and C 97 II, two Passive Floor-standing speakers from JBL and Jamo.
Let's have a brief look at the main features
of JBL Stage A190 and Jamo C 97 II first before getting into our more
detailed comparison.
JBL Stage A190 Key Specs
- 2-way Design
- 1" HDI (High Definition Imaging) waveguide Tweeter
- 2 x 8" Polycellulose Woofer
- 36-40k Hz Frequency Response
- 91 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-225watts
- Weight:22.61kg
- Dimensions (H x W x D): 1117.0" x 13-1/4" x 17-1/2"( 1117.0 x 337.0 x 445.0mm )
Jamo C 97 II Key Specs
- 3-way Design
- 1" Tweeter
- 6" Midrange
- 3 x 6" Composite Woofer
- 6" Midrange
- 32-24k Hz Frequency Response
- 89 dB Sensitivity
- Impedance: 6ohms
- Power Range:50-180watts
- Weight:24.55kg
- Dimensions (H x W x D): 1070.0" x 9-3/4" x 15-13/16"( 1070.0 x 248.0 x 402.0mm )
What size room are the JBL Stage A190 and Jamo C 97 II speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Stage A190 |
Jamo C 97 II |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Average |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Average |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the JBL Stage A190 and Jamo C 97 II compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that A190 is a 2-way design whereas the C 97 II is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
JBL Stage A190 |
Jamo C 97 II |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 6-inch |
|
Woofer
|
2 x 8-inch
|
3 x 6-inch
|
A190 features a 1" aluminum HDI (High Definition Imaging) waveguide Tweeter and 2 x 8" Polycellulose Woofer . On the other hand, the C 97 II features a 1" Tweeter , a 6" Midrange and 3 x 6" Composite Woofer .
Frequency Response
A190 has a frequency range of 36-40k Hz whereas C 97 II has a frequency range of 32-24k Hz. With a minimum frequency of 32Hz, the C 97 II can go slightly deeper then the A190's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
A190 and C 97 II have the same Impedance of 6 ohms but where they differ is the sensitivity levels. A190 sensitivity is rated at 91 dB and the C 97 II's is at 89 dB. This 2 dB difference makes the JBL Stage A190 a more sensitive speaker compared to Jamo C 97 II, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
A190 can handle a max power of 225 watts RMS from the amp the whereas C 97 II has a max power handling value of 180 watts RMS, 45 watts less than the A190.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both A190 and C 97 II features dual binding post speaker terminals for bi-amping or bi-wiring.
Jamo C 97 II's Posts terminals allows Bi-amping or bi-wiring
Physical Specs

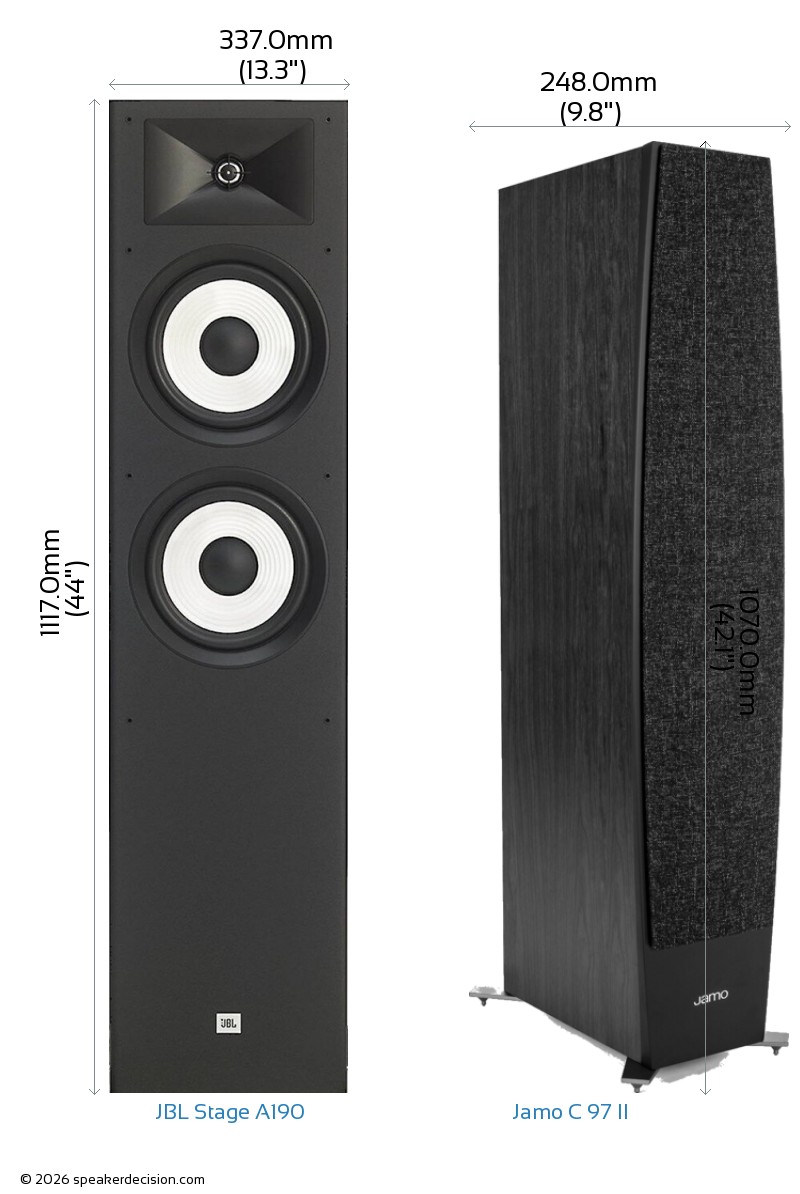

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage A190's and Jamo C 97 II's external dimensions. JBL Stage A190 has external dimensions of 1117.0 x 337.0 x 445.0mm ( 43-15/16 x 13-1/4 x 17-1/2inch) whereas Jamo C 97 II has external dimensions of 1070.0 x 248.0 x 402.0mm ( 42-1/8 x 9-3/4 x 15-13/16inch) .
JBL Stage A190 is clearly the larger of the two speakers. Its body is 89mm wider, 47mm taller and 43mm deeper than Jamo C 97 II.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL Stage A190 is approximately 1499.7cm2 / 232.5inch2 and base area of the Jamo C 97 II is approximately 997.0cm2 / 154.5inch2. The A190 requires 50% more surface area than the C 97 II which gives it a small disadvantage on placement in tight spaces.
