In this review, we will be comparing LINTON Heritage and Uni-Fi UB5, two Passive Bookshelf speakers from Wharfedale and ELAC.
Let's have a brief look at the main features
of Wharfedale LINTON and ELAC Uni-Fi UB5 first before getting into our more
detailed comparison.
Wharfedale LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Woven Kevlar Woofer
- 40-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:18.40kg
- Dimensions (H x W x D): 565.0" x 11.8" x 14.2"( 565.0 x 300.0 x 360.0mm )
ELAC Uni-Fi UB5 Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 4" Midrange
- 5.25" Aluminum Woofer
- 4" Midrange
- 46-25k Hz Frequency Response
- 85 dB Sensitivity
- Impedance: 4ohms
- Power Range:40-140watts
- Weight:7.48kg
- Dimensions (H x W x D): 324.0" x 7.8" x 10.7"( 324.0 x 200.0 x 273.0mm )
What size room are the Wharfedale LINTON and ELAC Uni-Fi UB5 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale LINTON |
ELAC Uni-Fi UB5 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale LINTON and ELAC Uni-Fi UB5 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both LINTON Heritage and Uni-Fi UB5 are 3-way speakers.
| Driver |
Wharfedale LINTON |
ELAC Uni-Fi UB5 |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5-inch |
1 x 4-inch |
|
Woofer
|
1 x 8-inch
|
1 x 5.25-inch
|
LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz. On the other hand, the Uni-Fi UB5 features a 1" Soft-dome Tweeter , a 4" Midrange and 1 x 5.25" Aluminum Woofer with a Crossover frequency at 270Hz and 2700Hz.
Frequency Response
LINTON Heritage has a frequency range of 40-20k Hz whereas Uni-Fi UB5 has a frequency range of 46-25k Hz. With a minimum frequency of 40Hz, the LINTON Heritage can go significantly deeper on the low side and provide stronger bass compared to the Uni-Fi UB5's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
LINTON Heritage is a 6 ohms speaker compared to the Uni-Fi UB5 which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Uni-Fi UB5 can provide this impedance level.
These two speakers also have different sensitivity levels. LINTON Heritage sensitivity is rated at 90 dB and the Uni-Fi UB5's is rated at 85 dB. This 5 dB difference makes the Wharfedale LINTON a more sensitive speaker compared to ELAC Uni-Fi UB5, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
LINTON Heritage can handle a max power of 200 watts RMS from the amp the whereas Uni-Fi UB5 has a max power handling value of 140 watts RMS, 60 watts less than the LINTON Heritage.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
LINTON Heritage features Post type posts and Uni-Fi UB5 has a Post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale LINTON's Post terminals
ELAC Uni-Fi UB5's Post terminals
Cabinet Type and Port Position
Both LINTON Heritage and Uni-Fi UB5 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale LINTON's and ELAC Uni-Fi UB5's external dimensions. Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) whereas ELAC Uni-Fi UB5 has external dimensions of 324.0 x 200.0 x 273.0mm ( 12.7 x 7.8 x 10.7inch) .
Wharfedale LINTON is clearly the larger of the two speakers. Its body is 100mm wider, 241mm taller and 87mm deeper than ELAC Uni-Fi UB5.

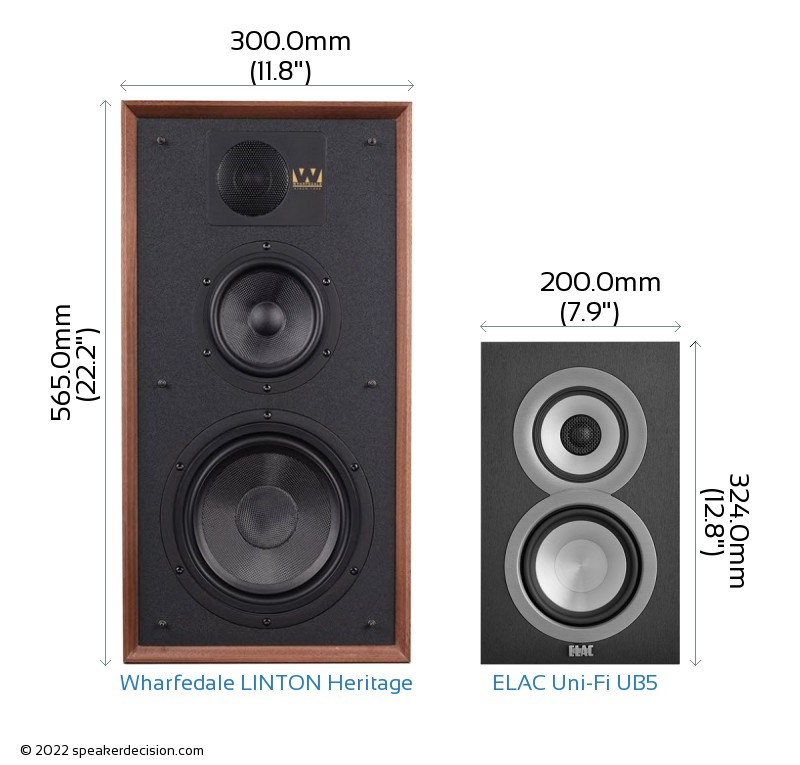

Below you can see the front view size comparison of Wharfedale LINTON and ELAC Uni-Fi UB5 in scale.
Comparison image of Wharfedale LINTON and ELAC Uni-Fi UB5 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2 and base area of the ELAC Uni-Fi UB5 is approximately 546.0cm2 / 84.6inch2. The LINTON Heritage requires 81% more surface area than the Uni-Fi UB5 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale LINTON weighs 18.40kg / 40.5lbs and the ELAC Uni-Fi UB5 weighs 7.48kg / 16.5lbs. This makes the LINTON Heritage 146% heavier than the Uni-Fi UB5.
Here is a comparison of how LINTON Heritage and Uni-Fi UB5's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale LINTON?
Here are the items that are included inside the box of LINTON Heritage:
Bookshelf loudspeaker Grille (pre-installed) 4 Self-adhesive rubber feet Pair of white gloves User's Manual
What's in the Box of ELAC Uni-Fi UB5?
Here are the items that come with the Uni-Fi UB5:
2 Bookshelf loudspeakers 2 Grilles Operating Instructions
 Max Input Power |
200 watts
vs
140 watts
|
Handle more power from your amplifier |
 Sensitivity |
90 dB
vs
85 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
6 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Woofer Size |
8 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
40 Hz
vs
46 Hz
|
Generates deeper bass |
 High Frequency Response |
25k Hz
vs
20k Hz
|
Generates higher frequency |
 Height |
324mm
vs
565mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
546cm2
vs
990cm2
|
Takes less floor space |
| General |
Wharfedale LINTON Heritage |
ELAC Uni-Fi UB5 |
| Brand |
Wharfedale |
ELAC |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-200 watts |
40-140 watts |
| Sensitivity |
90 dB |
85 dB |
| Impedance |
6 ohms |
4 ohms |
| Impedance |
3.5 ohms |
n/a |
| Frequency Response |
40-20k Hz |
46-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
8" |
5.25" |
| Woofer Composition |
Woven Kevlar |
Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-dome |
Soft-dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5" |
4" |
| Crossover Frequency |
630Hz and 2400Hz |
270Hz and 2700Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
565.0mm (22.2") |
324.0mm (12.8") |
| Width |
300.0mm (11.8") |
200.0mm (7.9") |
| Depth |
360.0mm (14.2") |
273.0mm (10.7") |
| Weight |
18.40kg (40.5lbs) |
7.48kg (16.5lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood Veneer |
MDF/Vinyl |
| Available Colors |
Walnut, Red Mahogany, Black |
Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
18-22" |
24-31" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
3 Years |
| Labor Warranty |
5 Years |
3 Years |
