In this review, we will be comparing LINTON Heritage and BW 606, two Passive Bookshelf speakers from Wharfedale and Bowers Wilkins.
Let's have a brief look at the main features
of Wharfedale LINTON and B&W 606 first before getting into our more
detailed comparison.
Wharfedale LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Woven Kevlar Woofer
- 40-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:18.40kg
- Dimensions (H x W x D): 565.0" x 11.8" x 14.2"( 565.0 x 300.0 x 360.0mm )
B&W 606 Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 6.5" Continuum Woofer
- 52-28k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-120watts
- Weight:6.90kg
- Dimensions (H x W x D): 345.0" x 7-1/2" x 12-13/16"( 345.0 x 190.0 x 324.0mm )
What size room are the Wharfedale LINTON and B&W 606 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale LINTON |
B&W 606 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale LINTON and B&W 606 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that LINTON Heritage is a 3-way design whereas the BW 606 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Wharfedale LINTON |
B&W 606 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5-inch |
- |
|
Woofer
|
1 x 8-inch
|
1 x 6.5-inch
|
LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz. On the other hand, the BW 606 features a 1" Decoupled Carbon Hard-Dome Tweeter and 1 x 6.5" Continuum Woofer .
Frequency Response
LINTON Heritage has a frequency range of 40-20k Hz whereas BW 606 has a frequency range of 52-28k Hz. With a minimum frequency of 40Hz, the LINTON Heritage can go significantly deeper on the low side and provide stronger bass compared to the BW 606's min frequency of 52Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
LINTON Heritage is a 6 ohms speaker compared to the BW 606 which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. LINTON Heritage sensitivity is rated at 90 dB and the BW 606's is rated at 88 dB. This 2 dB difference makes the Wharfedale LINTON a more sensitive speaker compared to B&W 606, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
LINTON Heritage can handle a max power of 200 watts RMS from the amp the whereas BW 606 has a max power handling value of 120 watts RMS, 80 watts less than the LINTON Heritage.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
BW 606 features Post posts which make bi-amping or bi-wiring possible. LINTON Heritage has a Post which doesn't feature bi-amping/bi-wiring.
Wharfedale LINTON's Post terminals
B&W 606's Post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both LINTON Heritage and BW 606 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale LINTON's and B&W 606's external dimensions. Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) whereas B&W 606 has external dimensions of 345.0 x 190.0 x 324.0mm ( 13.5 x 7.4 x 12.7inch) .
Wharfedale LINTON is clearly the larger of the two speakers. Its body is 110mm wider, 220mm taller and 36mm deeper than B&W 606.

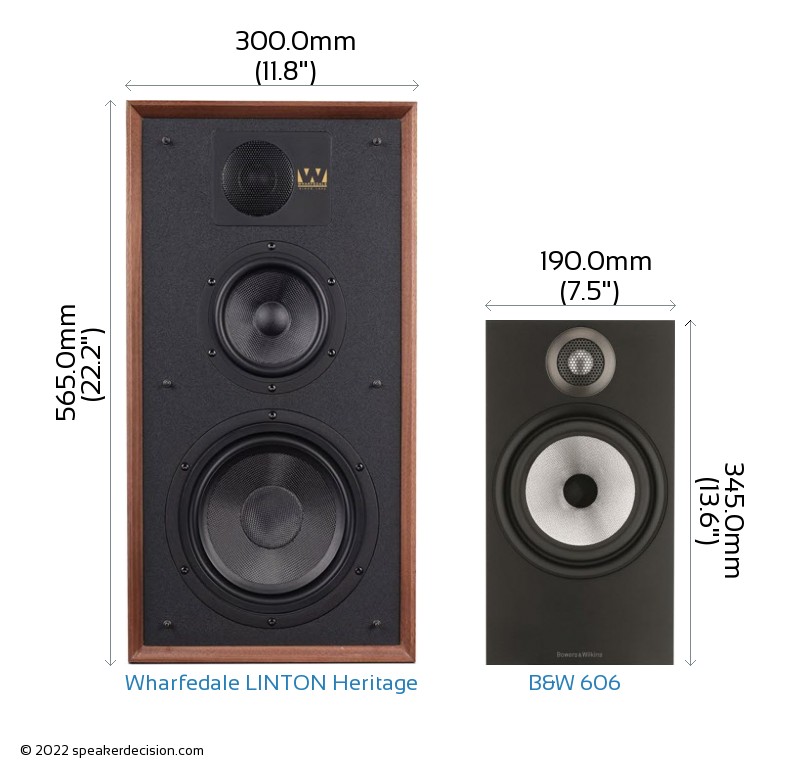

Below you can see the front view size comparison of Wharfedale LINTON and B&W 606 in scale.
Comparison image of Wharfedale LINTON and B&W 606 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2 and base area of the B&W 606 is approximately 615.6cm2 / 95.4inch2. The LINTON Heritage requires 61% more surface area than the BW 606 which gives it a small disadvantage on placement in tight spaces.
