In this review, we will be comparing EVO4.2 and Q150, two Passive Bookshelf speakers from Wharfedale and KEF.
Let's have a brief look at the main features
of Wharfedale EVO4.2 and KEF Q150 first before getting into our more
detailed comparison.
Wharfedale EVO4.2 Key Specs
- 3-way Design
- 1.18x2.36" AMT (Ribbon) Tweeter
- 2" Midrange
- 6.5" Kevlar Woofer
- 54-22k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-120watts
- Weight:13.40kg
- Dimensions (H x W x D): 455.0" x 9.8" x 13.7"( 455.0 x 250.0 x 350.0mm )
KEF Q150 Key Specs
- 2-way Design
- 11th Generation Uni-Q Driver
- 1" Dome Tweeter
- 5.25" Aluminum Woofer
- 51-28k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:10-100watts
- Weight:5.60kg
- Dimensions (H x W x D): 303.0" x 7.0" x 10.9"( 303.0 x 180.0 x 278.0mm )
What size room are the Wharfedale EVO4.2 and KEF Q150 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO4.2 |
KEF Q150 |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale EVO4.2 and KEF Q150 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that EVO4.2 is a 3-way design whereas the Q150 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Wharfedale EVO4.2 |
KEF Q150 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1.18x2.36-inch
|
1-inch
|
|
Midrange
|
1 x 2-inch |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 5.25-inch
|
EVO4.2 features a 1.18x2.36" AMT (Ribbon) Tweeter , a 2" Midrange and 1 x 6.5" Kevlar Woofer . On the other hand, the Q150 features a 1" vented aluminum Dome Tweeter and 1 x 5.25" Aluminum Woofer with a Crossover frequency at 2500Hz.
Frequency Response
EVO4.2 has a frequency range of 54-22k Hz whereas Q150 has a frequency range of 51-28k Hz. With a minimum frequency of 51Hz, the Q150 can go slightly deeper then the EVO4.2's min frequency of 54Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO4.2 and Q150 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. EVO4.2 sensitivity is rated at 88 dB and the Q150's is at 86 dB. This 2 dB difference makes the Wharfedale EVO4.2 a more sensitive speaker compared to KEF Q150, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
EVO4.2 can handle a max power of 120 watts RMS from the amp the whereas Q150 has a max power handling value of 100 watts RMS, 20 watts less than the EVO4.2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
EVO4.2 features Post posts which make bi-amping or bi-wiring possible. Q150 has a Post which doesn't feature bi-amping/bi-wiring.
KEF Q150's Post terminals
Cabinet Type and Port Position
EVO4.2 has a bottom firing port whereas Q150 has a rear firing ports. Wharfedale EVO4.2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to KEF Q150 with its rear-firing port.
KEF Q150 Port
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO4.2's and KEF Q150's external dimensions. Wharfedale EVO4.2 has external dimensions of 455.0 x 250.0 x 350.0mm ( 17.9 x 9.8 x 13.7inch) whereas KEF Q150 has external dimensions of 303.0 x 180.0 x 278.0mm ( 11.9 x 7.0 x 10.9inch) .
Wharfedale EVO4.2 is clearly the larger of the two speakers. Its body is 70mm wider, 152mm taller and 72mm deeper than KEF Q150.
Below you can see the front view size comparison of Wharfedale EVO4.2 and KEF Q150 in scale.
Comparison image of Wharfedale EVO4.2 and KEF Q150 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO4.2 is approximately 875.0cm2 / 135.6inch2 and base area of the KEF Q150 is approximately 500.4cm2 / 77.6inch2. The EVO4.2 requires 75% more surface area than the Q150 which gives it a small disadvantage on placement in tight spaces.

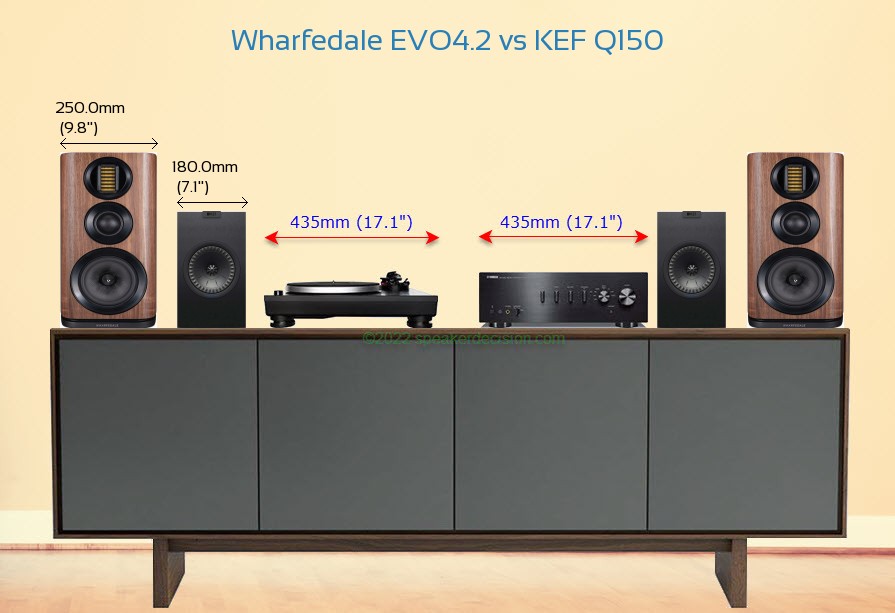

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Wharfedale EVO4.2 and KEF Q150 on a Media Console
