In this review, we will be comparing Diamond 12.3 and DFR52, two Passive Floor-standing speakers from Wharfedale and ELAC.
Let's have a brief look at the main features
of Wharfedale Diamond 12.3 and ELAC Debut Ref DFR52 first before getting into our more
detailed comparison.
Wharfedale Diamond 12.3 Key Specs
- 2-way Design
- 1" Soft-Dome Tweeter
- 2 x 5" Mica-infused polypropylene Woofer
- 45-20k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-150watts
- Weight:19.50kg
- Dimensions (H x W x D): 985.0" x 7-1/8" x 14-1/4"( 985.0 x 180.0 x 362.0mm )
ELAC Debut Ref DFR52 Key Specs
- 3-way Design
- 1" dome Tweeter
- 5.25" Midrange
- 2 x 5.25" Aramid fiber Woofer
- 5.25" Midrange
- 42-35k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 6ohms
- Power Range:up to 140watts
- Weight:16.77kg
- Dimensions (H x W x D): 1031.0" x 9-1/8" x 11-1/8"( 1031.0 x 232.0 x 283.0mm )
What size room are the Wharfedale Diamond 12.3 and ELAC Debut Ref DFR52 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale Diamond 12.3 |
ELAC Debut Ref DFR52 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale Diamond 12.3 and ELAC Debut Ref DFR52 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Diamond 12.3 is a 2-way design whereas the DFR52 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Wharfedale Diamond 12.3 |
ELAC Debut Ref DFR52 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5.25-inch |
|
Woofer
|
2 x 5-inch
|
2 x 5.25-inch
|
Diamond 12.3 features a 1" Textile Soft-Dome Tweeter and 2 x 5" Mica-infused polypropylene Woofer with a Crossover frequency at 2200Hz. On the other hand, the DFR52 features a 1" cloth dome Tweeter , a 5.25" Midrange and 2 x 5.25" Aramid fiber Woofer .
Frequency Response
Diamond 12.3 has a frequency range of 45-20k Hz whereas DFR52 has a frequency range of 42-35k Hz. With a minimum frequency of 42Hz, the DFR52 can go slightly deeper then the Diamond 12.3's min frequency of 45Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Diamond 12.3 is a 8 ohms speaker compared to the DFR52 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Diamond 12.3 sensitivity is rated at 88 dB and the DFR52's is rated at 87 dB. This 1 dB difference makes the Wharfedale Diamond 12.3 a more sensitive speaker compared to ELAC Debut Ref DFR52, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Diamond 12.3 can handle a max power of 150 watts RMS from the amp the whereas DFR52 has a max power handling value of 140 watts RMS, 10 watts less than the Diamond 12.3.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Diamond 12.3 features Binding post posts which make bi-amping or bi-wiring possible. DFR52 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
Wharfedale Diamond 12.3's Binding post terminals allows Bi-amping or bi-wiring
ELAC Debut Ref DFR52's 5-Way post terminals
Cabinet Type and Port Position
Both Diamond 12.3 and DFR52 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Diamond 12.3's and ELAC Debut Ref DFR52's external dimensions. Wharfedale Diamond 12.3 has external dimensions of 985.0 x 180.0 x 362.0mm ( 38-3/4 x 7-1/8 x 14-1/4inch) whereas ELAC Debut Ref DFR52 has external dimensions of 1031.0 x 232.0 x 283.0mm ( 40-9/16 x 9-1/8 x 11-1/8inch) .
Wharfedale Diamond 12.3 is 52mm narrower and 46mm shorter than ELAC Debut Ref DFR52 but it is also 79mm deeper.

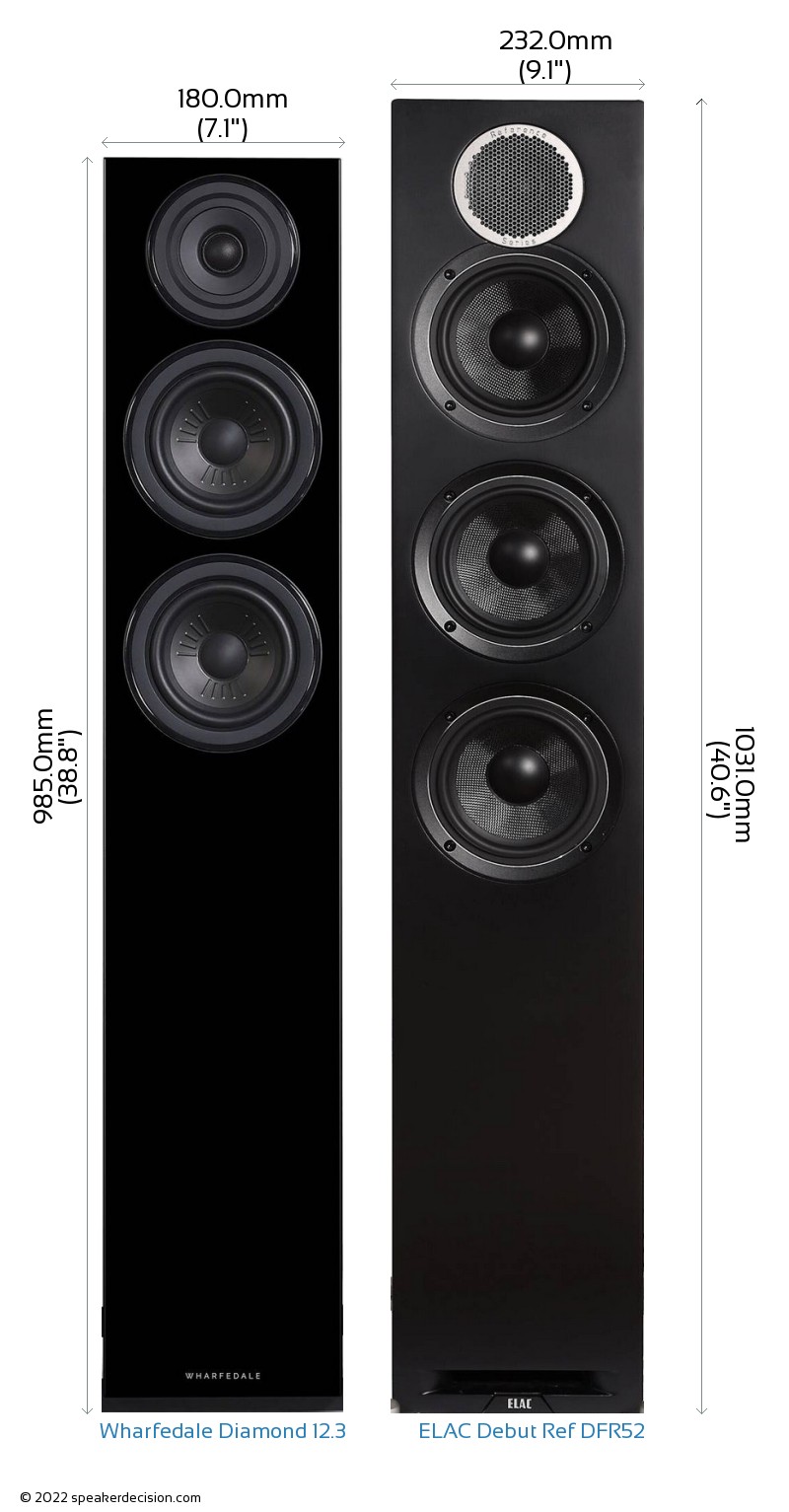

Below you can see the front view size comparison of Wharfedale Diamond 12.3 and ELAC Debut Ref DFR52 in scale.
Comparison image of Wharfedale Diamond 12.3 and ELAC Debut Ref DFR52 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Diamond 12.3 is approximately 651.6cm2 / 101.0inch2 and base area of the ELAC Debut Ref DFR52 is approximately 656.6cm2 / 101.8inch2. The Diamond 12.3 requires 1% less surface area than the DFR52 which gives it a small advantage on placement in tight spaces.
