In this review, we will be comparing XT15 and Diamond 220, two Passive Bookshelf speakers from Polk Audio and Wharfedale.
Let's have a brief look at the main features
of Polk XT15 and Wharfedale 220 first before getting into our more
detailed comparison.
Polk XT15 Key Specs
- 2-way Design
- 1" Soft-Dome Tweeter
- 5.25" Bi-laminate paper Woofer
- 48-40k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-150watts
- Weight:4.09kg
- Dimensions (H x W x D): 270.0" x 6-9/16" x 7-3/16"( 270.0 x 167.0 x 183.0mm )
Wharfedale 220 Key Specs
- 2-way Design
- 1" Dome Tweeter
- 5" Woven Kevlar Woofer
- 56-20k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-100watts
- Weight:5.32kg
- Dimensions (H x W x D): 315.0" x 6.8" x 10.0"( 315.0 x 174.0 x 255.0mm )
What size room are the Polk XT15 and Wharfedale 220 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Polk XT15 |
Wharfedale 220 |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Polk XT15 and Wharfedale 220 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both XT15 and Diamond 220 are 2-way speakers.
| Driver |
Polk XT15 |
Wharfedale 220 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.25-inch
|
1 x 5-inch
|
XT15 features a 1" Soft-Dome Tweeter and 1 x 5.25" Bi-laminate paper Woofer . On the other hand, the Diamond 220 features a 1" Dome Tweeter and 1 x 5" Woven Kevlar Woofer with a Crossover frequency at 2200Hz.
Frequency Response
XT15 has a frequency range of 48-40k Hz whereas Diamond 220 has a frequency range of 56-20k Hz. With a minimum frequency of 48Hz, the XT15 can go significantly deeper on the low side and provide stronger bass compared to the Diamond 220's min frequency of 56Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
XT15 and Diamond 220 have the same Impedance of 8 ohms and their sensitivity is also same at 86 dB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
XT15 can handle a max power of 150 watts RMS from the amp the whereas Diamond 220 has a max power handling value of 100 watts RMS, 50 watts less than the XT15.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Diamond 220 features Post posts which make bi-amping or bi-wiring possible. XT15 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
Wharfedale 220's Post terminals allows Bi-amping or bi-wiring
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Polk XT15's and Wharfedale 220's external dimensions. Polk XT15 has external dimensions of 270.0 x 167.0 x 183.0mm ( 10-5/8 x 6-9/16 x 7-3/16inch) whereas Wharfedale 220 has external dimensions of 315.0 x 174.0 x 255.0mm ( 12.4 x 6.8 x 10.0inch) .
Wharfedale 220 is clearly the larger of the two speakers. Its body is 7mm wider, 45mm taller and 72mm deeper than Polk XT15.

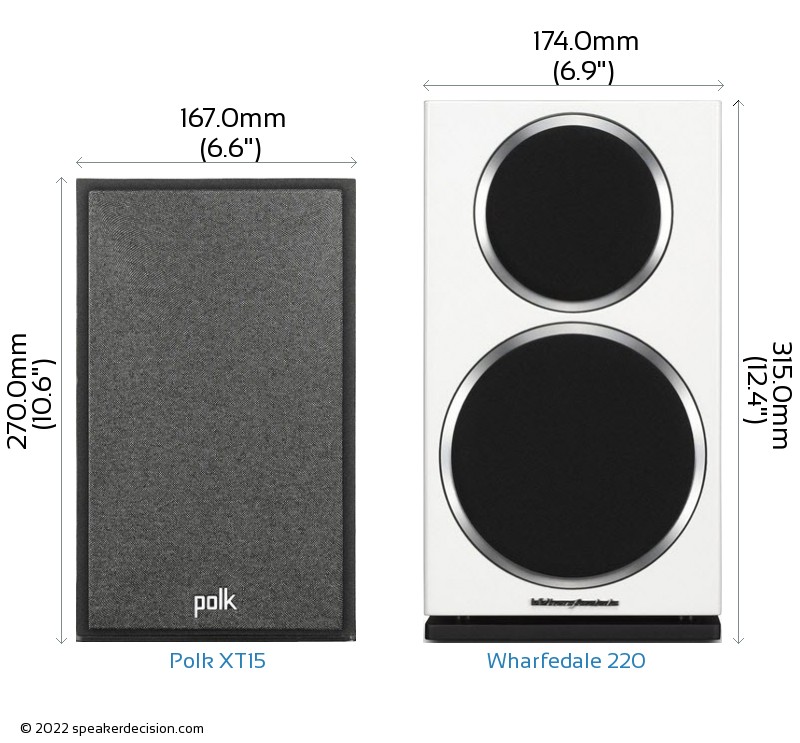

Below you can see the front view size comparison of Polk XT15 and Wharfedale 220 in scale.
Comparison image of Polk XT15 and Wharfedale 220 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Polk XT15 is approximately 305.6cm2 / 47.4inch2 and base area of the Wharfedale 220 is approximately 443.7cm2 / 68.8inch2. The XT15 requires 31% less surface area than the Diamond 220 which gives it a small advantage on placement in tight spaces.

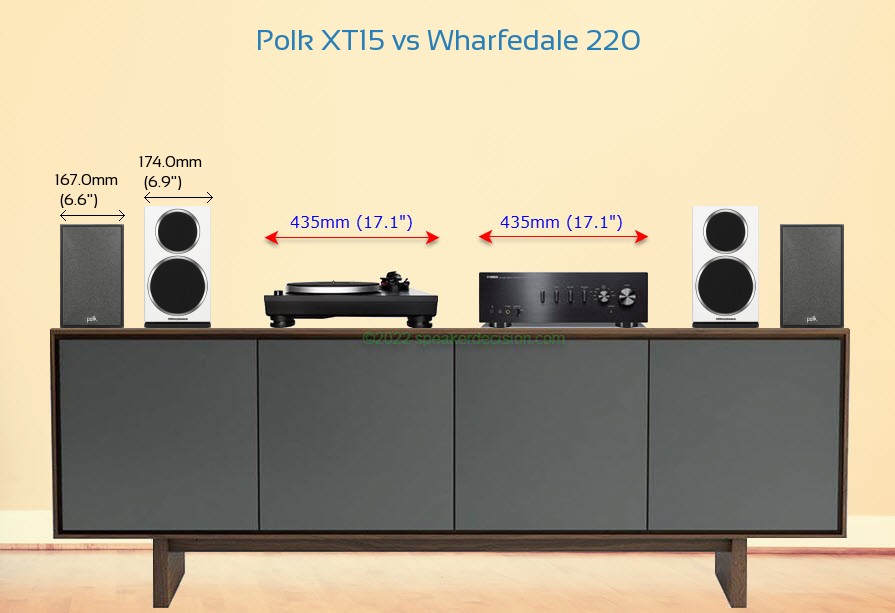

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Polk XT15 and Wharfedale 220 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Polk XT15 weighs 4.09kg / 9lbs and the Wharfedale 220 weighs 5.32kg / 11.7lbs. This makes the Diamond 220 30% heavier than the XT15.
Here is a comparison of how XT15 and Diamond 220's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Polk XT15?
Here are the items that are included inside the box of XT15:
2 Bookshelf loudspeakers2 Grilles (attached)8 Self-adhesive rubber feetOwners ManualOnline Product Registration
What's in the Box of Wharfedale 220?
Here are the items that come with the Diamond 220:
2 Bookshelf loudspeakers 2 Grilles (pre-installed) 8 Self-adhesive rubber feet User's Manual Installation Guide
 Max Input Power |
150 watts
vs
100 watts
|
Handle more power from your amplifier |
 Woofer Size |
5.25 inches
vs
5 inches
|
Larger woofer |
|
Low Frequency Response |
48 Hz
vs
56 Hz
|
Generates deeper bass |
 High Frequency Response |
40k Hz
vs
20k Hz
|
Generates higher frequency |
 Height |
270mm
vs
315mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
305cm2
vs
443cm2
|
Takes less floor space |
 Price per pair* |
199USD
vs
249USD
|
costs less (*prices may change depending on the seller, location and time) |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
| General |
Polk Audio Monitor XT15 |
Wharfedale Diamond 220 |
| Brand |
Polk Audio |
Wharfedale |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
30-150 watts |
25-100 watts |
| Sensitivity |
86 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
n/a |
4.1 ohms |
| Frequency Response |
48-40k Hz |
56-20k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5.25" |
5" |
| Woofer Composition |
Bi-laminate paper |
Woven Kevlar |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-Dome |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
2200Hz |
| Firing Direction |
n/a |
bottom |
Physical Specs |
|
|
| Height |
270.0mm (10.6") |
315.0mm (12.4") |
| Width |
167.0mm (6.6") |
174.0mm (6.9") |
| Depth |
183.0mm (7.2") |
255.0mm (10") |
| Weight |
4.09kg (9lbs) |
5.32kg (11.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF, Vinyl |
MDF/Wood veneer |
| Available Colors |
Black |
Black, White, Walnut |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
28-32" |
24" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
