In this review, we will be comparing Alpha AM5 and Navis ARB-51, two Powered Bookshelf speakers from PSB and ELAC. Being Powered speakers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them.
Let's have a brief look at the main features
of PSB Alpha AM5 and ELAC Navis ARB-51 first before getting into our more
detailed comparison.
PSB Alpha AM5 Key Specs
- 2-way Design
- 100-watt RMS Integrated Amplifier
- 0.75" Hard-Dome Tweeter
- 5.25" Polypropylene Woofer
- 55-20k Hz Frequency Response
- 24-bit Max Depth / 48 kHz Max Sample Rate
- Built-in 5.0 Bluetooth
- Weight:9.75kg
- Dimensions (H x W x D): 292.1" x 6.75" x 11"( 292.1 x 171.5 x 279.4mm )
ELAC Navis ARB-51 Key Specs
- 3-way Design
- 300-watt RMS( 600-watt Peak) Integrated Amplifier
- 1" Soft-Dome Tweeter
- 4" Midrange
- 5.25" Aluminum Woofer
- 4" Midrange
- 44-28k Hz Frequency Response
- Optional Bluetooth
- Weight:8.10kg
- Dimensions (H x W x D): 350.8" x 7.5625" x 11.3125"( 350.8 x 192.1 x 287.3mm )
In the following sections, we will get into more detail in order to better understand how the PSB Alpha AM5 and ELAC Navis ARB-51 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Alpha AM5 is a 2-way design whereas the Navis ARB-51 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
PSB Alpha AM5 |
ELAC Navis ARB-51 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
0.75-inch
|
1-inch
|
|
Midrange
|
- |
1 x 4-inch |
|
Woofer
|
1 x 5.25-inch
|
1 x 5.25-inch
|
Alpha AM5 features a 0.75" Aluminum Hard-Dome Tweeter and 1 x 5.25" Polypropylene Woofer . On the other hand, the Navis ARB-51 features a 1" Fabric Soft-Dome Tweeter , a 4" Midrange and 1 x 5.25" Aluminum Woofer .
Frequency Response
Alpha AM5 has a frequency range of 55-20k Hz whereas Navis ARB-51 has a frequency range of 44-28k Hz. With a minimum frequency of 44Hz, the Navis ARB-51 can go significantly deeper on the low side and provide stronger bass compared to the Alpha AM5's min frequency of 55Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Cabinet Type and Port Position
Both Alpha AM5 and Navis ARB-51 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB Alpha AM5's and ELAC Navis ARB-51's external dimensions. PSB Alpha AM5 has external dimensions of 292.1 x 171.5 x 279.4mm ( 11.5 x 6.75 x 11inch) whereas ELAC Navis ARB-51 has external dimensions of 350.8 x 192.1 x 287.3mm ( 13.8125 x 7.5625 x 11.3125inch) .
ELAC Navis ARB-51 is clearly the larger of the two speakers. Its body is 20.6mm wider, 58.7mm taller and 7.9mm deeper than PSB Alpha AM5.

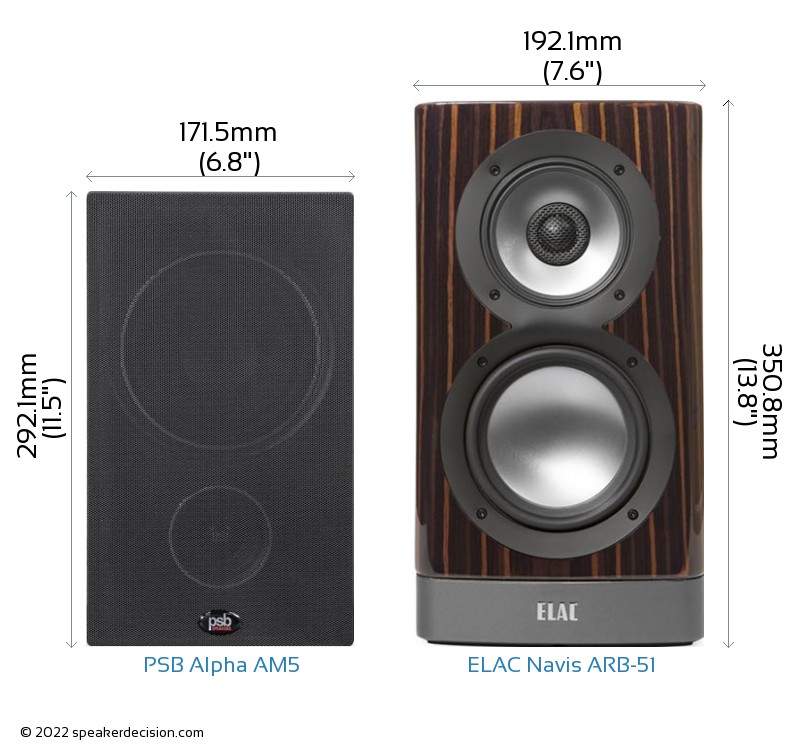

Below you can see the front view size comparison of PSB Alpha AM5 and ELAC Navis ARB-51 in scale.
Comparison image of PSB Alpha AM5 and ELAC Navis ARB-51 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB Alpha AM5 is approximately 479.2cm2 / 74.3inch2 and base area of the ELAC Navis ARB-51 is approximately 551.9cm2 / 85.5inch2. The Alpha AM5 requires 13% less surface area than the Navis ARB-51 which gives it a small advantage on placement in tight spaces.
Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of PSB Alpha AM5 and ELAC Navis ARB-51 on a Media Console
