In this review, we will be comparing The Nines and YU, two Powered Bookshelf speakers from Klipsch and Kanto. Being Powered speakers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them.
Let's have a brief look at the main features
of Klipsch The Nines and Kanto YU first before getting into our more
detailed comparison.
Klipsch The Nines Key Specs
- 2-way Design
- 240-watt RMS( 480-watt Peak) Integrated Amplifier
- 1" Tractrix Horn Tweeter
- 8" Fiber-composite Woofer
- 34-25k Hz Frequency Response
- 24-bit Max Depth / 192 kHz Max Sample Rate
- Built-in 5.0 Bluetooth
- App Control Feature
- Weight:12.25kg
- Dimensions (H x W x D): 493.0" x 9.5625" x 15.6875"( 493.0 x 243.0 x 399.0mm )
Kanto YU Key Specs
- 2-way Design
- 70-watt RMS( 140-watt Peak) Integrated Amplifier
- 1" Soft-Dome Tweeter
- 4" Kevlar Woofer
- 60-20k Hz Frequency Response
- 24-bit Max Depth / 192 kHz Max Sample Rate
- Built-in 4.2 Bluetooth
- Weight:2.40kg
- Dimensions (H x W x D): 220.0" x 5.5" x 7.5"( 220.0 x 140.0 x 190.0mm )
In the following sections, we will get into more detail in order to better understand how the Klipsch The Nines and Kanto YU compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both The Nines and YU are 2-way speakers.
| Driver |
Klipsch The Nines |
Kanto YU |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 8-inch
|
1 x 4-inch
|
The Nines features a 1" Titanium Tractrix Horn Tweeter and 1 x 8" Fiber-composite Woofer . On the other hand, the YU features a 1" Silk Soft-Dome Tweeter and 1 x 4" Kevlar Woofer .
Frequency Response
The Nines has a frequency range of 34-25k Hz whereas YU has a frequency range of 60-20k Hz. With a minimum frequency of 34Hz, the The Nines can go significantly deeper on the low side and provide stronger bass compared to the YU's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Cabinet Type and Port Position
Both The Nines and YU have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch The Nines's and Kanto YU's external dimensions. Klipsch The Nines has external dimensions of 493.0 x 243.0 x 399.0mm ( 19.375inch x 9.5625inch x 15.6875inch ) whereas Kanto YU has external dimensions of 220.0 x 140.0 x 190.0mm ( 8.7 x 5.5 x 7.5inch) .
Klipsch The Nines is clearly the larger of the two speakers. Its body is 103mm wider, 273mm taller and 209mm deeper than Kanto YU.

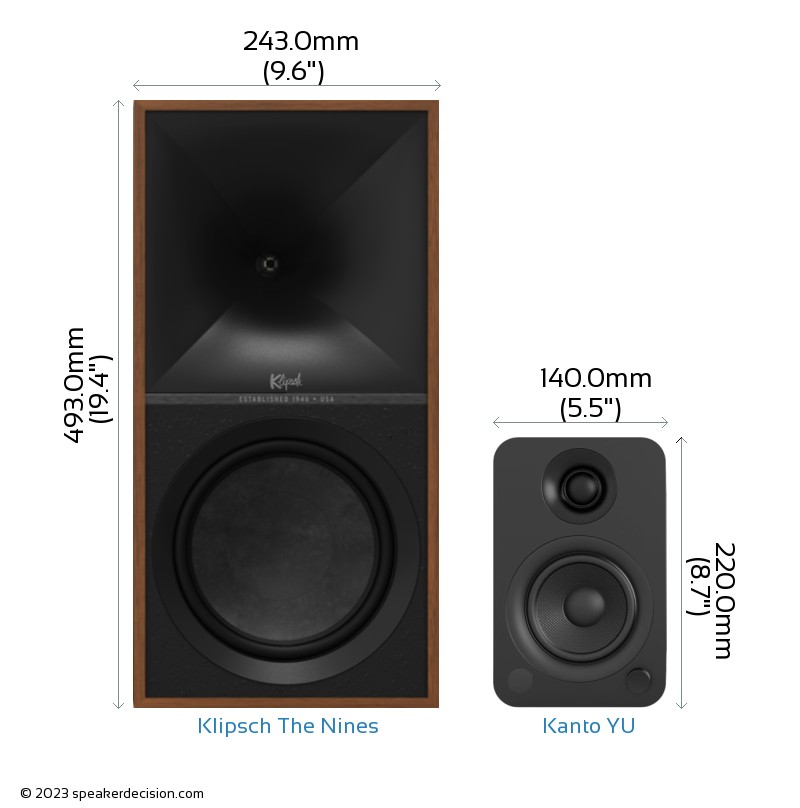

Below you can see the front view size comparison of Klipsch The Nines and Kanto YU in scale.
Comparison image of Klipsch The Nines and Kanto YU Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch The Nines is approximately 969.6cm2 / 150.3inch2 and base area of the Kanto YU is approximately 266.0cm2 / 41.2inch2. The The Nines requires 265% more surface area than the YU which gives it a small disadvantage on placement in tight spaces.
Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Klipsch The Nines and Kanto YU on a Media Console
