In this review, we will be comparing R-30C and Debut 2.0 C6.2, two Passive Center Channel speakers from Klipsch and ELAC.
Let's have a brief look at the main features
of Klipsch R-30C and ELAC Debut 2.0 C6.2 first before getting into our more
detailed comparison.
Klipsch R-30C Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 4 x 3.5" spun-copper TCP Woofer
- 78-21k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:5.00kg
- Dimensions (H x W x D): 126.0" x 26-1/16" x 6-13/16"( 126.0 x 662.0 x 174.0mm )
ELAC Debut 2.0 C6.2 Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 2 x 6.5" aramid-fiber Woofer
- 55-35k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 120watts
- Weight:11.55kg
- Dimensions (H x W x D): 194.0" x 23-3/8" x 11-5/16"( 194.0 x 594.0 x 288.0mm )
What size room are the Klipsch R-30C and ELAC Debut 2.0 C6.2 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch R-30C |
ELAC Debut 2.0 C6.2 |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Klipsch R-30C and ELAC Debut 2.0 C6.2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both R-30C and Debut 2.0 C6.2 are 2-way speakers.
| Driver |
Klipsch R-30C |
ELAC Debut 2.0 C6.2 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
4 x 3.5-inch
|
2 x 6.5-inch
|
R-30C features a 1" LTS (Linear Travel Suspension) titanium diaphragm Tractrix Horn Tweeter and 4 x 3.5" spun-copper TCP Woofer with a Crossover frequency at 1650 Hz. On the other hand, the Debut 2.0 C6.2 features a 1" silk Hard-Dome Tweeter and 2 x 6.5" aramid-fiber Woofer .
Frequency Response
R-30C has a frequency range of 78-21k Hz whereas Debut 2.0 C6.2 has a frequency range of 55-35k Hz. With a minimum frequency of 55Hz, the Debut 2.0 C6.2 can go significantly deeper on the low side and provide stronger bass compared to the R-30C's min frequency of 78Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R-30C and Debut 2.0 C6.2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. R-30C sensitivity is rated at 96 dB and the Debut 2.0 C6.2's is at 88 dB. This 8 dB difference makes the Klipsch R-30C a more sensitive speaker compared to ELAC Debut 2.0 C6.2, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
R-30C can handle a max power of 120 watts RMS from the amp the whereas R-30C has a max power handling value of 100 watts RMS , 20 watts less than the Debut 2.0 C6.2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
R-30C features 5-Way post type posts and Debut 2.0 C6.2 has a 5-Way post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch R-30C's Binding post terminals
ELAC Debut 2.0 C6.2's 5-Way post terminals
Cabinet Type and Port Position
R-30C has a rear firing port whereas Debut 2.0 C6.2 has a front firing ports. ELAC Debut 2.0 C6.2's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Klipsch R-30C with its rear-firing port.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-30C's and ELAC Debut 2.0 C6.2's external dimensions. Klipsch R-30C has external dimensions of 126.0 x 662.0 x 174.0mm ( 4-15/16inch x 26-1/16inch x 6-13/16inch ) whereas ELAC Debut 2.0 C6.2 has external dimensions of 194.0 x 594.0 x 288.0mm ( 7-5/8 x 23-3/8 x 11-5/16inch) .
Klipsch R-30C is 68mm shorter and 114mm less deeper than ELAC Debut 2.0 C6.2 but it is also 68mm wider.

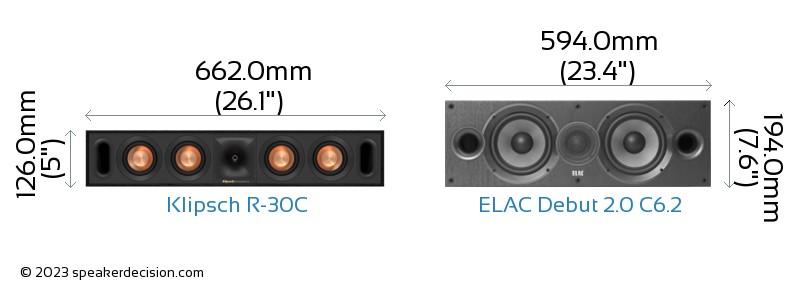

Below you can see the front view size comparison of Klipsch R-30C and ELAC Debut 2.0 C6.2 in scale.
Comparison image of Klipsch R-30C and ELAC Debut 2.0 C6.2 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-30C is approximately 1151.9cm2 / 178.5inch2 and base area of the ELAC Debut 2.0 C6.2 is approximately 1710.7cm2 / 265.2inch2. The R-30C requires 33% less surface area than the Debut 2.0 C6.2 which gives it a small advantage on placement in tight spaces.
