In this review, we will be comparing RP-504C II and Motion 50XTi, two Passive Center Channel speakers from Klipsch and MartinLogan.
Let's have a brief look at the main features
of Klipsch RP-504C II and MartinLogan 50XTi first before getting into our more
detailed comparison.
Klipsch RP-504C II Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 4 x 5.25" Cerametallic cone Woofer
- 50-25k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 150watts
- Weight:16.50kg
- Dimensions (H x W x D): 177.0" x 32-3/16" x 15-1/8"( 177.0 x 818.0 x 385.0mm )
MartinLogan 50XTi Key Specs
- 3-way Design
- 1.25 x 2.4" Folded Motion XT Tweeter
- 2 x 6.5" Aluminum Woofer
- 50-25k Hz Frequency Response
- 94 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-300watts
- Weight:13.86kg
- Dimensions (H x W x D): 196.0" x 23" x 13-5/8"( 196.0 x 585.0 x 347.0mm )
What size room are the Klipsch RP-504C II and MartinLogan 50XTi speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-504C II |
MartinLogan 50XTi |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-504C II and MartinLogan 50XTi compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that RP-504C II is a 2-way design whereas the Motion 50XTi is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Klipsch RP-504C II |
MartinLogan 50XTi |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1.25 x 2.4-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
4 x 5.25-inch
|
2 x 6.5-inch
|
RP-504C II features a 1" titanium Tractrix Horn Tweeter and 4 x 5.25" Cerametallic cone Woofer with a Crossover frequency at 1950 Hz. On the other hand, the Motion 50XTi features a 1.25 x 2.4" Folded Motion XT Tweeter and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 900Hz and 2200Hz.
Frequency Response
RP-504C II and Motion 50XTi has exactly the same frequency range of 50-25k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-504C II is a 8 ohms speaker compared to the Motion 50XTi which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion 50XTi can provide this impedance level.
These two speakers also have different sensitivity levels. RP-504C II sensitivity is rated at 96 dB and the Motion 50XTi's is rated at 94 dB. This 2 dB difference makes the Klipsch RP-504C II a more sensitive speaker compared to MartinLogan 50XTi, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
RP-504C II can handle a max power of 300 watts RMS from the amp the whereas RP-504C II has a max power handling value of 150 watts RMS , 150 watts less than the Motion 50XTi.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Motion 50XTi features Custom 5-way bi-wire tool-less binding posts posts which make bi-amping or bi-wiring possible. RP-504C II has a Binding post which doesn't feature bi-amping/bi-wiring.
Klipsch RP-504C II's Binding post terminals
MartinLogan 50XTi's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both RP-504C II and Motion 50XTi have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-504C II's and MartinLogan 50XTi's external dimensions. Klipsch RP-504C II has external dimensions of 177.0 x 818.0 x 385.0mm ( 6-15/16 x 32-3/16 x 15-1/8inch) whereas MartinLogan 50XTi has external dimensions of 196.0 x 585.0 x 347.0mm ( 7-11/16 x 23 x 13-5/8inch) .
MartinLogan 50XTi is 233mm narrower and 38mm less deeper than Klipsch RP-504C II but it is also 19mm taller.

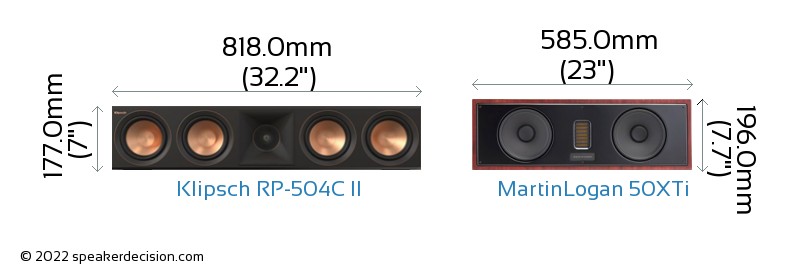

Below you can see the front view size comparison of Klipsch RP-504C II and MartinLogan 50XTi in scale.
Comparison image of Klipsch RP-504C II and MartinLogan 50XTi Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-504C II is approximately 3149.3cm2 / 488.1inch2 and base area of the MartinLogan 50XTi is approximately 2030.0cm2 / 314.7inch2. The RP-504C II requires 55% more surface area than the Motion 50XTi which gives it a small disadvantage on placement in tight spaces.
