In this review, we will be comparing YU Passive 4-inch and LINTON Heritage, two Passive Bookshelf speakers from Kanto and Wharfedale.
Let's have a brief look at the main features
of Kanto YU Passive 4-inch and Wharfedale LINTON first before getting into our more
detailed comparison.
Kanto YU Passive 4-inch Key Specs
- 2-way Design
- 1" Soft-Dome Tweeter
- 4" Kevlar Woofer
- 60-20k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 4ohms
- Weight:2.50kg
- Dimensions (H x W x D): 220.0" x 5.5" x 7.5"( 220.0 x 140.0 x 190.0mm )
Wharfedale LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Woven Kevlar Woofer
- 5" Midrange
- 40-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:18.40kg
- Dimensions (H x W x D): 565.0" x 11.8" x 14.2"( 565.0 x 300.0 x 360.0mm )
What size room are the Kanto YU Passive 4-inch and Wharfedale LINTON speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Kanto YU Passive 4-inch |
Wharfedale LINTON |
| Near-field |
Good |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
No way |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Kanto YU Passive 4-inch and Wharfedale LINTON compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that YU Passive 4-inch is a 2-way design whereas the LINTON Heritage is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Kanto YU Passive 4-inch |
Wharfedale LINTON |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5-inch |
|
Woofer
|
1 x 4-inch
|
1 x 8-inch
|
YU Passive 4-inch features a 1" Silk Soft-Dome Tweeter and 1 x 4" Kevlar Woofer . On the other hand, the LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz.
Frequency Response
YU Passive 4-inch has a frequency range of 60-20k Hz whereas LINTON Heritage has a frequency range of 40-20k Hz. With a minimum frequency of 40Hz, the LINTON Heritage can go significantly deeper on the low side and provide stronger bass compared to the YU Passive 4-inch's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
YU Passive 4-inch is a 4 ohms speaker compared to the LINTON Heritage which has a nominal impedance of 6 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the YU Passive 4-inch can provide this impedance level.
These two speakers also have different sensitivity levels. YU Passive 4-inch sensitivity is rated at 86 dB and the LINTON Heritage's is rated at 90 dB. This 4 dB difference makes the Wharfedale LINTON a more sensitive speaker compared to Kanto YU Passive 4-inch, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Input Type and Bi-Amping / Bi-Wiring
YU Passive 4-inch features Post type posts and LINTON Heritage has a Post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale LINTON's Post terminals
Cabinet Type and Port Position
Both YU Passive 4-inch and LINTON Heritage have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Kanto YU Passive 4-inch's and Wharfedale LINTON's external dimensions. Kanto YU Passive 4-inch has external dimensions of 220.0 x 140.0 x 190.0mm ( 8.7 x 5.5 x 7.5inch) whereas Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) .
Wharfedale LINTON is clearly the larger of the two speakers. Its body is 160mm wider, 345mm taller and 170mm deeper than Kanto YU Passive 4-inch.

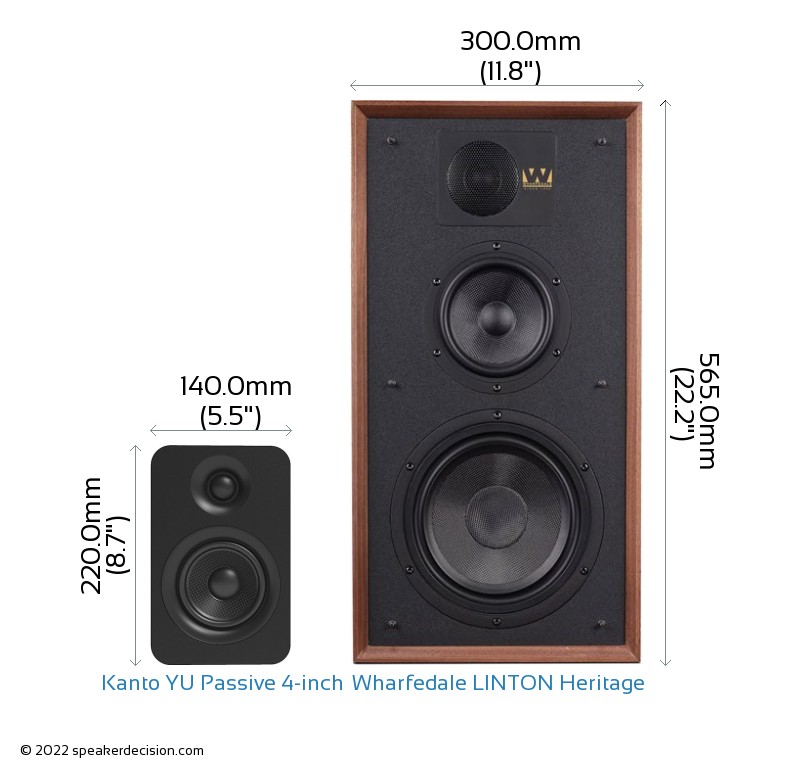

Below you can see the front view size comparison of Kanto YU Passive 4-inch and Wharfedale LINTON in scale.
Comparison image of Kanto YU Passive 4-inch and Wharfedale LINTON Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Kanto YU Passive 4-inch is approximately 266.0cm2 / 41.2inch2 and base area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2. The YU Passive 4-inch requires 73% less surface area than the LINTON Heritage which gives it a small advantage on placement in tight spaces.

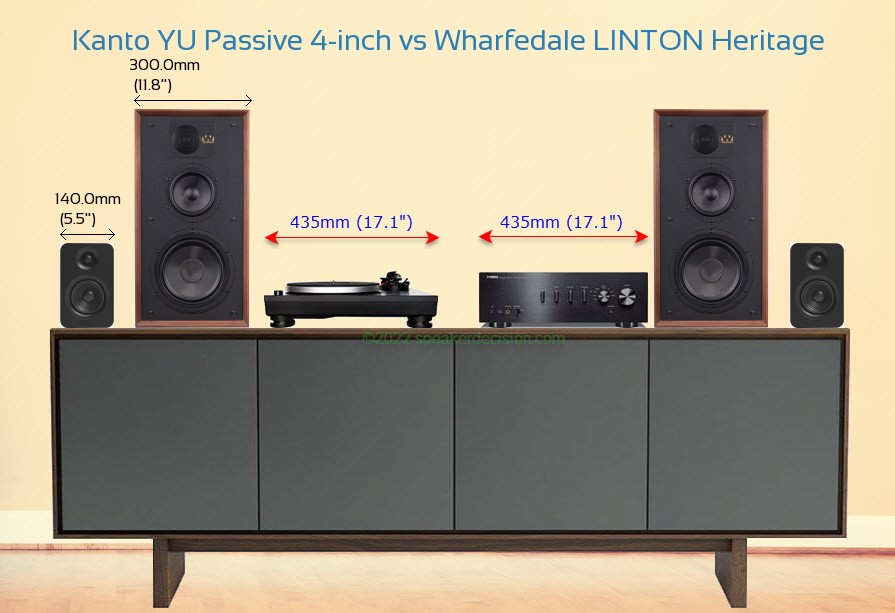

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Kanto YU Passive 4-inch and Wharfedale LINTON on a Media Console
