In this review, we will be comparing R3 Meta and Mission 770, two Passive Bookshelf speakers from KEF and Mission.
Let's have a brief look at the main features
of KEF R3 Meta and Mission 770 first before getting into our more
detailed comparison.
KEF R3 Meta Key Specs
- 3-way Design
- 12th Generation Uni-Q Driver
- 1" Hard-Dome Tweeter
- 5" Midrange
- 6.5" Hybrid Aluminum Woofer
- 58-28k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 4ohms
- Power Range:15-180watts
- Weight:12.41kg
- Dimensions (H x W x D): 423.0" x 7-15/16" x 13-1/4"( 423.0 x 202.0 x 337.0mm )
Mission 770 Key Specs
- 2-way Design
- 1.25" Soft-Dome Tweeter
- 8" mineral-loaded polyproylene Woofer
- 42-20,000 Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-200watts
- Weight:27.20kg
- Dimensions (H x W x D): 590.0" x 11-13/16" x 12-11/16"( 590 x 279.4 x 301mm )
What size room are the KEF R3 Meta and Mission 770 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
KEF R3 Meta |
Mission 770 |
| Near-field |
Poor |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Average |
| Very Large Room |
Average |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the KEF R3 Meta and Mission 770 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that R3 Meta is a 3-way design whereas the Mission 770 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
KEF R3 Meta |
Mission 770 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1.25-inch
|
|
Midrange
|
1 x 5-inch |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 8-inch
|
R3 Meta features a 1" Aluminum with MAT absorber Hard-Dome Tweeter , a 5" Midrange and 1 x 6.5" Hybrid Aluminum Woofer with a Crossover frequency at 420Hz and 2300Hz. On the other hand, the Mission 770 features a 1.25" Soft-Dome Tweeter and 1 x 8" mineral-loaded polyproylene Woofer with a Crossover frequency at 2900Hz.
Frequency Response
R3 Meta has a frequency range of 58-28k Hz whereas Mission 770 has a frequency range of 42-20,000 Hz. With a minimum frequency of 42Hz, the Mission 770 can go significantly deeper on the low side and provide stronger bass compared to the R3 Meta's min frequency of 58Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R3 Meta is a 4 ohms speaker compared to the Mission 770 which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the R3 Meta can provide this impedance level.
These two speakers also have different sensitivity levels. R3 Meta sensitivity is rated at 87 dB and the Mission 770's is rated at 88 dB. This 1 dB difference makes the Mission 770 a more sensitive speaker compared to KEF R3 Meta, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
R3 Meta can handle a max power of 200 watts RMS from the amp the whereas R3 Meta has a max power handling value of 180 watts RMS , 20 watts less than the Mission 770.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
R3 Meta features Custom 5-way bi-wire tool-less binding posts posts which make bi-amping or bi-wiring possible. Mission 770 has a Post which doesn't feature bi-amping/bi-wiring.
KEF R3 Meta's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Mission 770's Post terminals
Cabinet Type and Port Position
R3 Meta has a rear firing port whereas Mission 770 has a Front firing ports.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KEF R3 Meta's and Mission 770's external dimensions. KEF R3 Meta has external dimensions of 423.0 x 202.0 x 337.0mm ( 16-5/8-inch x 7-15/16-inch x 13-1/4-inch) whereas Mission 770 has external dimensions of 590 x 279.4 x 301mm ( 23-1/4inch x 11-13/16inch x 12-11/16inch ) .
KEF R3 Meta is 77.4mm narrower and 167mm shorter than Mission 770 but it is also 36mm deeper.

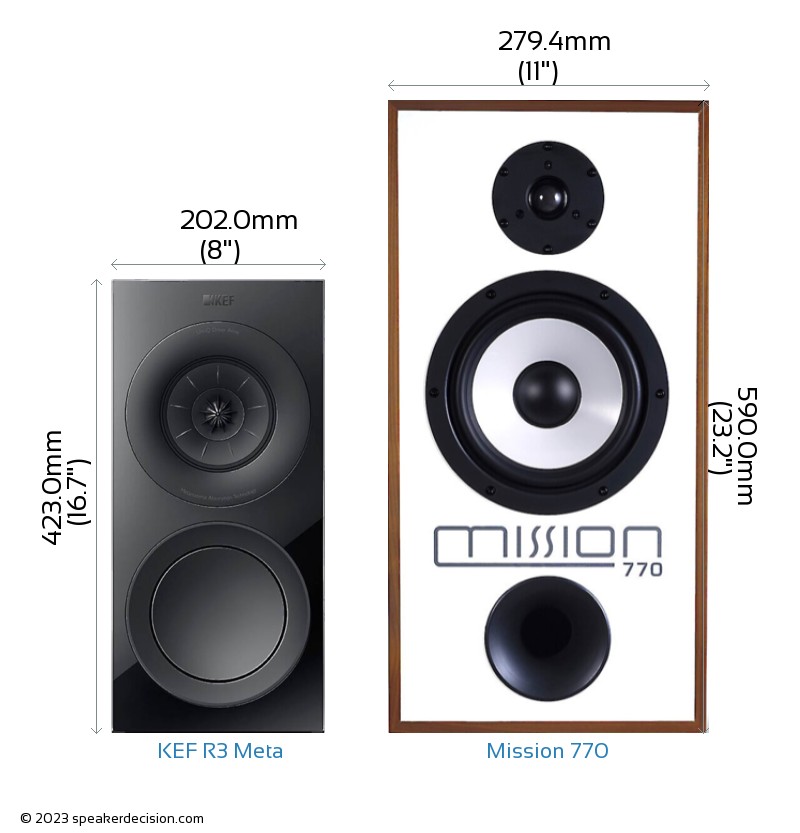

Below you can see the front view size comparison of KEF R3 Meta and Mission 770 in scale.
Comparison image of KEF R3 Meta and Mission 770 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KEF R3 Meta is approximately 680.7cm2 / 105.5inch2 and base area of the Mission 770 is approximately 841.0cm2 / 130.4inch2. The R3 Meta requires 19% less surface area than the Mission 770 which gives it a small advantage on placement in tight spaces.
