In this review, we will be comparing L52 Classic and RP-500M, two Passive Bookshelf speakers from JBL and Klipsch.
Let's have a brief look at the main features
of JBL L52 Classic and Klipsch RP-500M first before getting into our more
detailed comparison.
JBL L52 Classic Key Specs
- 2-way Design
- 0.75" Dome Tweeter
- 5.25" Pulp Woofer
- 47-24k Hz Frequency Response
- 85 dB Sensitivity
- Impedance: 4ohms
- Power Range:10-75watts
- Weight:5.00kg
- Dimensions (H x W x D): 332.0" x 7-13/16" x 8-11/16"( 332.0 x 199.0 x 221.0mm )
Klipsch RP-500M Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 5.25" Cerametallic Woofer
- 48-25k Hz Frequency Response
- 93 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 75watts
- Weight:5.40kg
- Dimensions (H x W x D): 343.0" x 6.8" x 9.4"( 343.0 x 173.0 x 241.0mm )
What size room are the JBL L52 Classic and Klipsch RP-500M speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL L52 Classic |
Klipsch RP-500M |
| Near-field |
Good |
Good |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
No way |
No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the JBL L52 Classic and Klipsch RP-500M compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both L52 Classic and RP-500M are 2-way speakers.
| Driver |
JBL L52 Classic |
Klipsch RP-500M |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
0.75-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.25-inch
|
1 x 5.25-inch
|
L52 Classic features a 0.75" Titanium Dome Tweeter and 1 x 5.25" Pulp Woofer with a Crossover frequency at 2800Hz. On the other hand, the RP-500M features a 1" Tractrix Horn Tweeter and 1 x 5.25" Cerametallic Woofer with a Crossover frequency at 1500Hz.
Frequency Response
L52 Classic has a frequency range of 47-24k Hz whereas RP-500M has a frequency range of 48-25k Hz. With a minimum frequency of 47Hz, the L52 Classic can go slightly deeper then the RP-500M's min frequency of 48Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
L52 Classic is a 4 ohms speaker compared to the RP-500M which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the L52 Classic can provide this impedance level.
These two speakers also have different sensitivity levels. L52 Classic sensitivity is rated at 85 dB and the RP-500M's is rated at 93 dB. This 8 dB difference makes the Klipsch RP-500M a more sensitive speaker compared to JBL L52 Classic, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
L52 Classic features Single binding posts type posts and RP-500M has a Single binding posts type posts. None of these speakers feature bi-amping/bi-wiring.
JBL L52 Classic's Five-way gold-plated binding posts terminals
Klipsch RP-500M's Single binding posts terminals
Cabinet Type and Port Position
L52 Classic has a front firing port whereas RP-500M has a rear firing ports. JBL L52 Classic's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Klipsch RP-500M with its rear-firing port.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL L52 Classic's and Klipsch RP-500M's external dimensions. JBL L52 Classic has external dimensions of 332.0 x 199.0 x 221.0mm ( 13-1/16 x 7-13/16 x 8-11/16inch) whereas Klipsch RP-500M has external dimensions of 343.0 x 173.0 x 241.0mm ( 13.5 x 6.8 x 9.4inch) .
JBL L52 Classic is 11mm shorter and 20mm less deeper than Klipsch RP-500M but it is also 26mm wider.

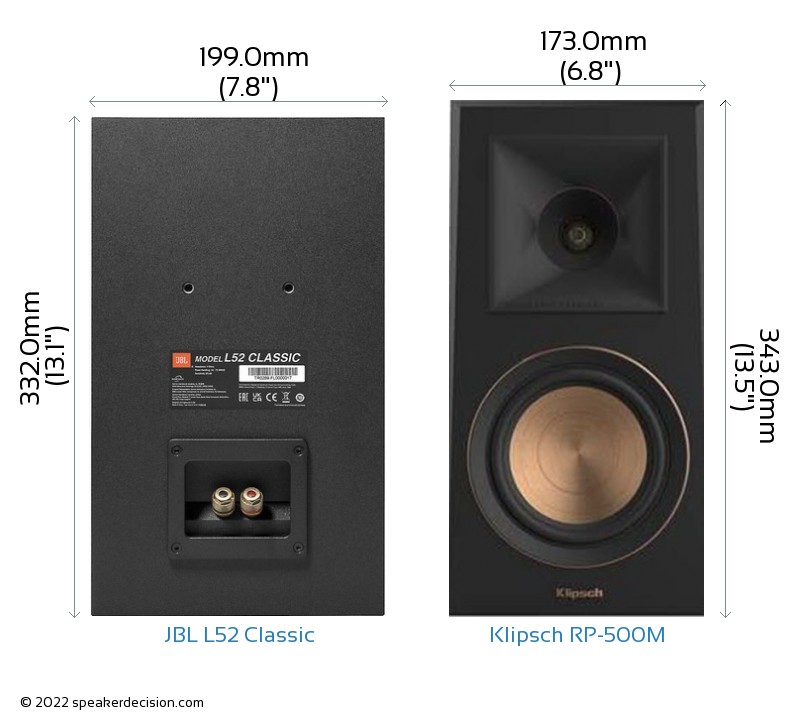

Below you can see the front view size comparison of JBL L52 Classic and Klipsch RP-500M in scale.
Comparison image of JBL L52 Classic and Klipsch RP-500M Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL L52 Classic is approximately 439.8cm2 / 68.2inch2 and base area of the Klipsch RP-500M is approximately 416.9cm2 / 64.6inch2. The L52 Classic requires 5% more surface area than the RP-500M which gives it a small disadvantage on placement in tight spaces.

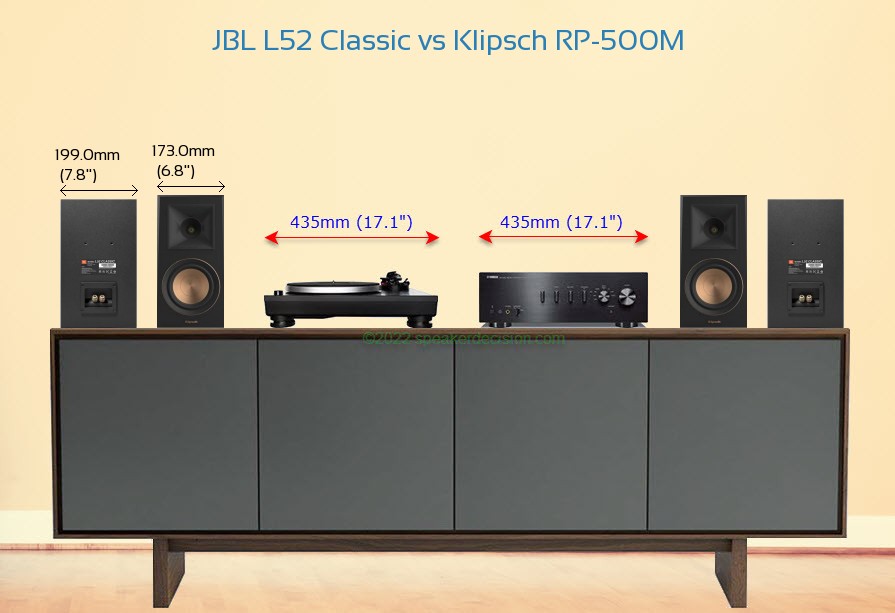

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of JBL L52 Classic and Klipsch RP-500M on a Media Console
