In this review, we will be comparing Airmotiv B2+ and S400 MKII, two Passive Bookshelf speakers from Emotiva and Buchardt.
Let's have a brief look at the main features
of Emotiva Airmotiv B2+ and Buchardt S400 MKII first before getting into our more
detailed comparison.
Emotiva Airmotiv B2+ Key Specs
- 2-way Design
- 25×32 mm" folded ribbon Tweeter
- 6.25" woven fiber cone Woofer
- 40-28k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 4ohms
- Power Range:Up to 125watts
- Weight:7.10kg
- Dimensions (H x W x D): 324.0" x 8-1/2" x 11-1/2"( 324.0 x 216.0 x 293.0mm )
Buchardt S400 MKII Key Specs
- 2-way Design
- 0.74" aluminum waveguide Tweeter
- 6" paper Woofer
- 33-40k HZ Frequency Response
- 88 dB Sensitivity
- Impedance: 4ohms
- Power Range:40-200watts
- Weight:7.50kg
- Dimensions (H x W x D): 365.0" x 7" x 11"( 365.0 x 180.0 x 280.0mm )
What size room are the Emotiva Airmotiv B2+ and Buchardt S400 MKII speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Emotiva Airmotiv B2+ |
Buchardt S400 MKII |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Emotiva Airmotiv B2+ and Buchardt S400 MKII compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Airmotiv B2+ and S400 MKII are 2-way speakers.
| Driver |
Emotiva Airmotiv B2+ |
Buchardt S400 MKII |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
25×32 mm-inch
|
0.74-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.25-inch
|
1 x 6-inch
|
Airmotiv B2+ features a 25×32 mm" folded ribbon Tweeter and 1 x 6.25" woven fiber cone Woofer with a Crossover frequency at 2000Hz. On the other hand, the S400 MKII features a 0.74" fine weave soft fabric textile aluminum waveguide Tweeter and 1 x 6" paper Woofer with a Crossover frequency at 1800Hz.
Frequency Response
Airmotiv B2+ has a frequency range of 40-28k Hz whereas S400 MKII has a frequency range of 33-40k HZ. With a minimum frequency of 33Hz, the S400 MKII can go significantly deeper on the low side and provide stronger bass compared to the Airmotiv B2+'s min frequency of 40Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Airmotiv B2+ and S400 MKII have the same Impedance of 4 ohms but where they differ is the sensitivity levels. Airmotiv B2+ sensitivity is rated at 86 dB and the S400 MKII's is at 88 dB. This 2 dB difference makes the Buchardt S400 MKII a more sensitive speaker compared to Emotiva Airmotiv B2+, hence will play louder with the same amount of watts.
One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the Airmotiv B2+ and the Airmotiv B2+ can provide this impedance level.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Airmotiv B2+ can handle a max power of 200 watts RMS from the amp the whereas Airmotiv B2+ has a max power handling value of 125 watts RMS , 75 watts less than the S400 MKII.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Emotiva Airmotiv B2+ Port
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Emotiva Airmotiv B2+'s and Buchardt S400 MKII's external dimensions. Emotiva Airmotiv B2+ has external dimensions of 324.0 x 216.0 x 293.0mm ( 12-3/4-inch x 8-1/2-inch x 11-1/2-inch) whereas Buchardt S400 MKII has external dimensions of 365.0 x 180.0 x 280.0mm ( 14.4 x 7 x 11inch) .
Buchardt S400 MKII is 36mm narrower and 13mm less deeper than Emotiva Airmotiv B2+ but it is also 41mm taller.

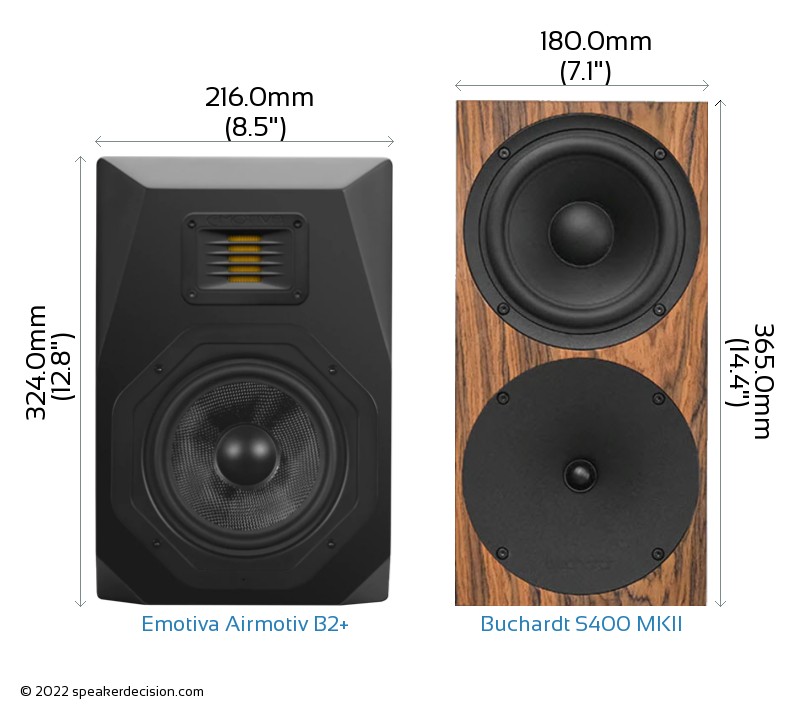

Below you can see the front view size comparison of Emotiva Airmotiv B2+ and Buchardt S400 MKII in scale.
Comparison image of Emotiva Airmotiv B2+ and Buchardt S400 MKII Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Emotiva Airmotiv B2+ is approximately 632.9cm2 / 98.1inch2 and base area of the Buchardt S400 MKII is approximately 504.0cm2 / 78.1inch2. The Airmotiv B2+ requires 26% more surface area than the S400 MKII which gives it a small disadvantage on placement in tight spaces.

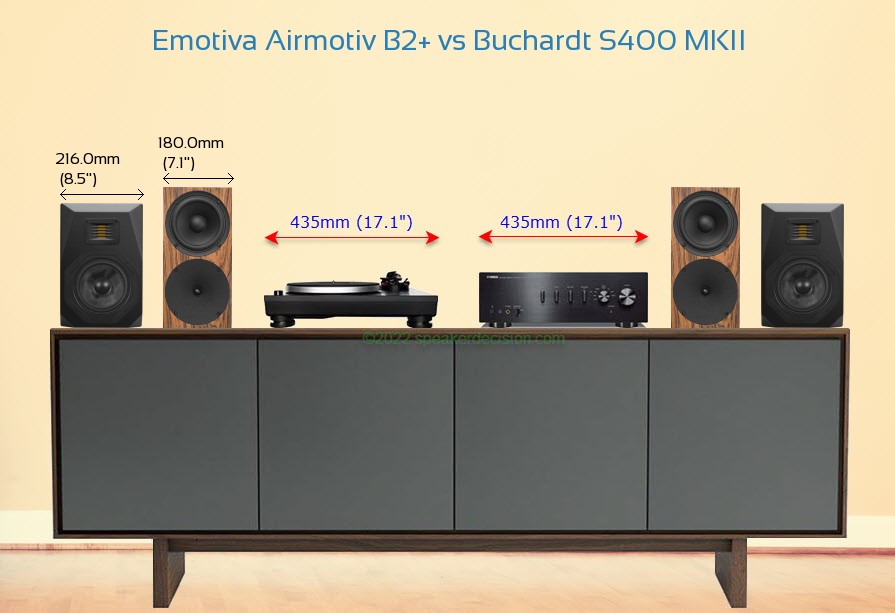

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Emotiva Airmotiv B2+ and Buchardt S400 MKII on a Media Console
