In this review, we will be comparing Airmotiv B1+ and XT15, two Passive Bookshelf speakers from Emotiva and Polk Audio.
Let's have a brief look at the main features
of Emotiva Airmotiv B1+ and Polk XT15 first before getting into our more
detailed comparison.
Emotiva Airmotiv B1+ Key Specs
- 2-way Design
- 25×32 mm" folded ribbon Tweeter
- 5.25" woven fiber cone Woofer
- 48 Hz – 28 kHz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:Up to 70watts
- Weight:4.00kg
- Dimensions (H x W x D): 274.0" x 7-1/8" x 8-1/4"( 274.0 x 181.0 x 210.0mm )
Polk XT15 Key Specs
- 2-way Design
- 1" Soft-Dome Tweeter
- 5.25" Bi-laminate paper Woofer
- 48-40k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-150watts
- Weight:4.09kg
- Dimensions (H x W x D): 270.0" x 6-9/16" x 7-3/16"( 270.0 x 167.0 x 183.0mm )
What size room are the Emotiva Airmotiv B1+ and Polk XT15 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Emotiva Airmotiv B1+ |
Polk XT15 |
| Near-field |
Good |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
No way |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Emotiva Airmotiv B1+ and Polk XT15 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Airmotiv B1+ and XT15 are 2-way speakers.
| Driver |
Emotiva Airmotiv B1+ |
Polk XT15 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
25×32 mm-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 5.25-inch
|
1 x 5.25-inch
|
Airmotiv B1+ features a 25×32 mm" folded ribbon Tweeter and 1 x 5.25" woven fiber cone Woofer with a Crossover frequency at 2000Hz. On the other hand, the XT15 features a 1" Soft-Dome Tweeter and 1 x 5.25" Bi-laminate paper Woofer .
Frequency Response
Airmotiv B1+ has a frequency range of 48 Hz – 28 kHz whereas XT15 has a frequency range of 48-40k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Airmotiv B1+ and XT15 have the same Impedance of 8 ohms and their sensitivity is also same at 86 dB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Airmotiv B1+ can handle a max power of 150 watts RMS from the amp the whereas Airmotiv B1+ has a max power handling value of 70 watts RMS , 80 watts less than the XT15.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Emotiva Airmotiv B1+ Port
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Emotiva Airmotiv B1+'s and Polk XT15's external dimensions. Emotiva Airmotiv B1+ has external dimensions of 274.0 x 181.0 x 210.0mm ( 10-3/4 x 7-1/8 x 8-1/4inch) whereas Polk XT15 has external dimensions of 270.0 x 167.0 x 183.0mm ( 10-5/8 x 6-9/16 x 7-3/16inch) .
Emotiva Airmotiv B1+ is clearly the larger of the two speakers. Its body is 14mm wider, 4mm taller and 27mm deeper than Polk XT15.

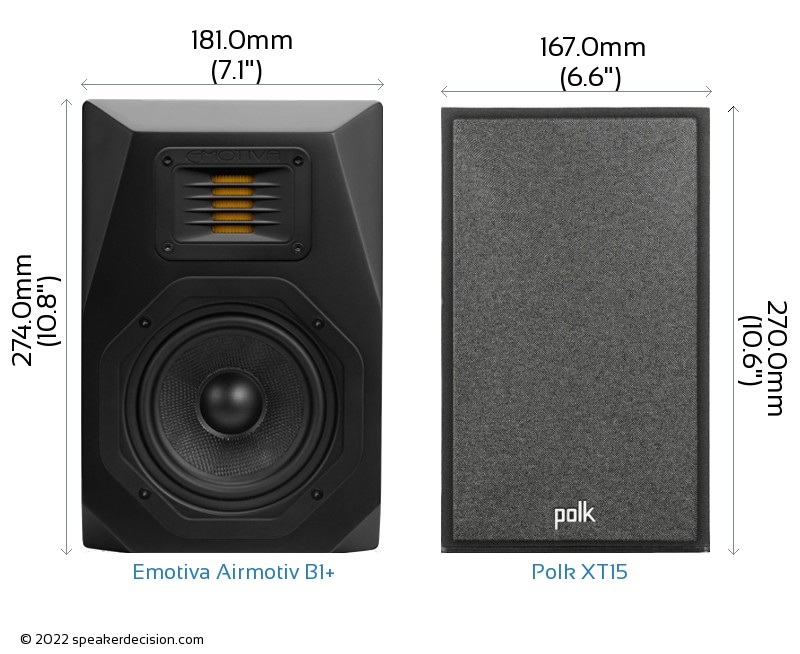

Below you can see the front view size comparison of Emotiva Airmotiv B1+ and Polk XT15 in scale.
Comparison image of Emotiva Airmotiv B1+ and Polk XT15 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Emotiva Airmotiv B1+ is approximately 380.1cm2 / 58.9inch2 and base area of the Polk XT15 is approximately 305.6cm2 / 47.4inch2. The Airmotiv B1+ requires 24% more surface area than the XT15 which gives it a small disadvantage on placement in tight spaces.
Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Emotiva Airmotiv B1+ and Polk XT15 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Emotiva Airmotiv B1+ weighs 4.00kg / 8.8lbs and the Polk XT15 weighs 4.09kg / 9lbs. This makes the XT15 2% heavier than the Airmotiv B1+.
Here is a comparison of how Airmotiv B1+ and XT15's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Polk XT15?
Here are the items that come with the XT15:
2 Bookshelf loudspeakers2 Grilles (attached)8 Self-adhesive rubber feetOwners ManualOnline Product Registration
 Max Input Power |
150 watts
vs
70 watts
|
Handle more power from your amplifier |
 High Frequency Response |
40k Hz
vs
28k Hz
|
Generates higher frequency |
 Height |
270mm
vs
274mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
305cm2
vs
380cm2
|
Takes less floor space |
 Price per pair* |
199USD
vs
299USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Emotiva Airmotiv B1+ |
Polk Audio Monitor XT15 |
| Brand |
Emotiva |
Polk Audio |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
Up to 70 watts |
30-150 watts |
| Sensitivity |
86 dB |
86 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
48 Hz – 28 kHz |
48-40k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
woven fiber cone |
Bi-laminate paper |
| Woofer Surround Material |
SBR |
Rubber |
| Tweeter Size |
25×32 mm" |
1" |
| Tweeter Type |
folded ribbon |
Soft-Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
2000Hz |
n/a |
| Firing Direction |
rear |
n/a |
Physical Specs |
|
|
| Height |
274.0mm (10.8") |
270.0mm (10.6") |
| Width |
181.0mm (7.1") |
167.0mm (6.6") |
| Depth |
210.0mm (8.3") |
183.0mm (7.2") |
| Weight |
4.00kg (8.8lbs) |
4.09kg (9lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Finish |
HDF |
MDF, Vinyl |
| Available Colors |
Black |
Black |
| Mounting Bracket |
|
No |
| Recommended Stand Height |
n/a |
28-32" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
n/a |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
